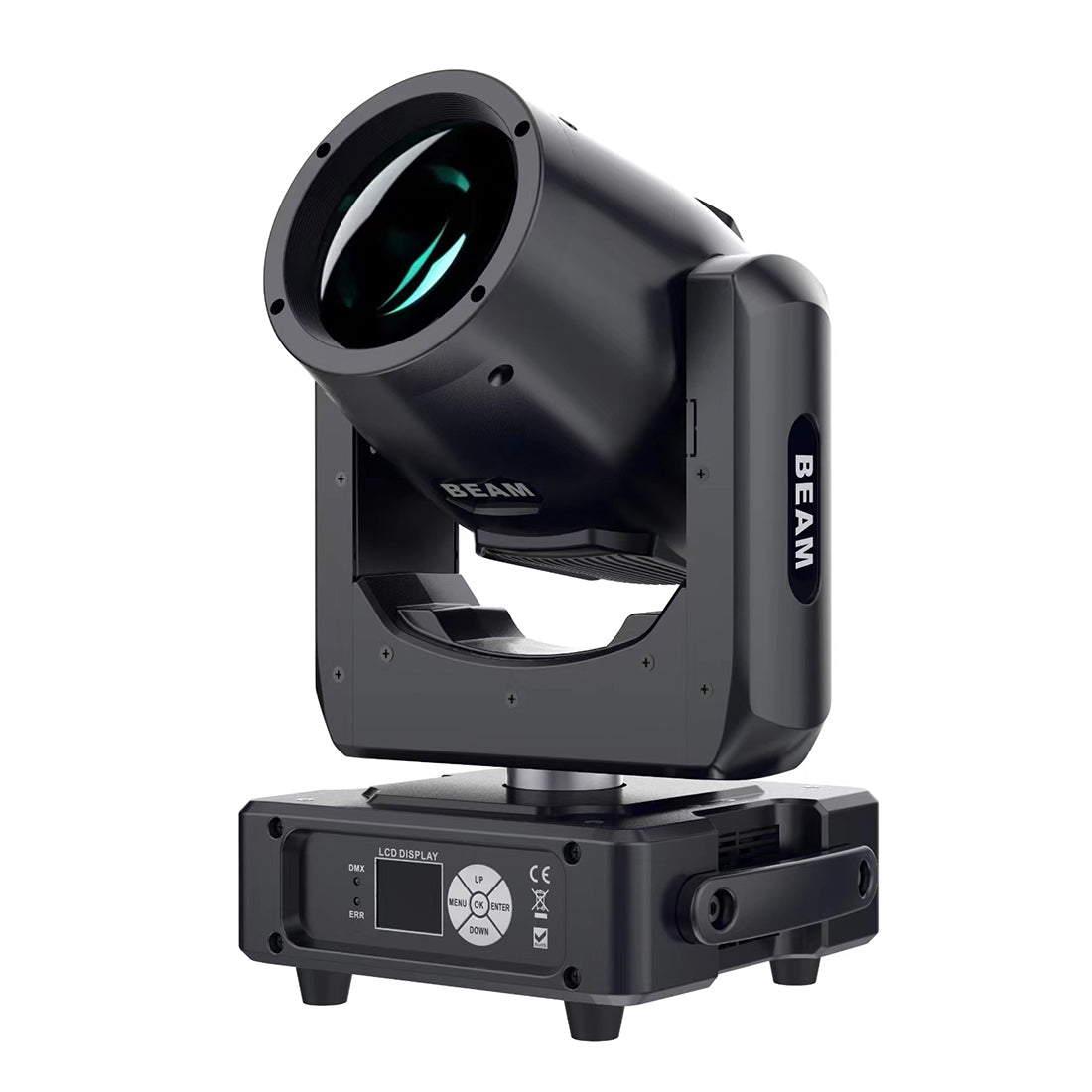

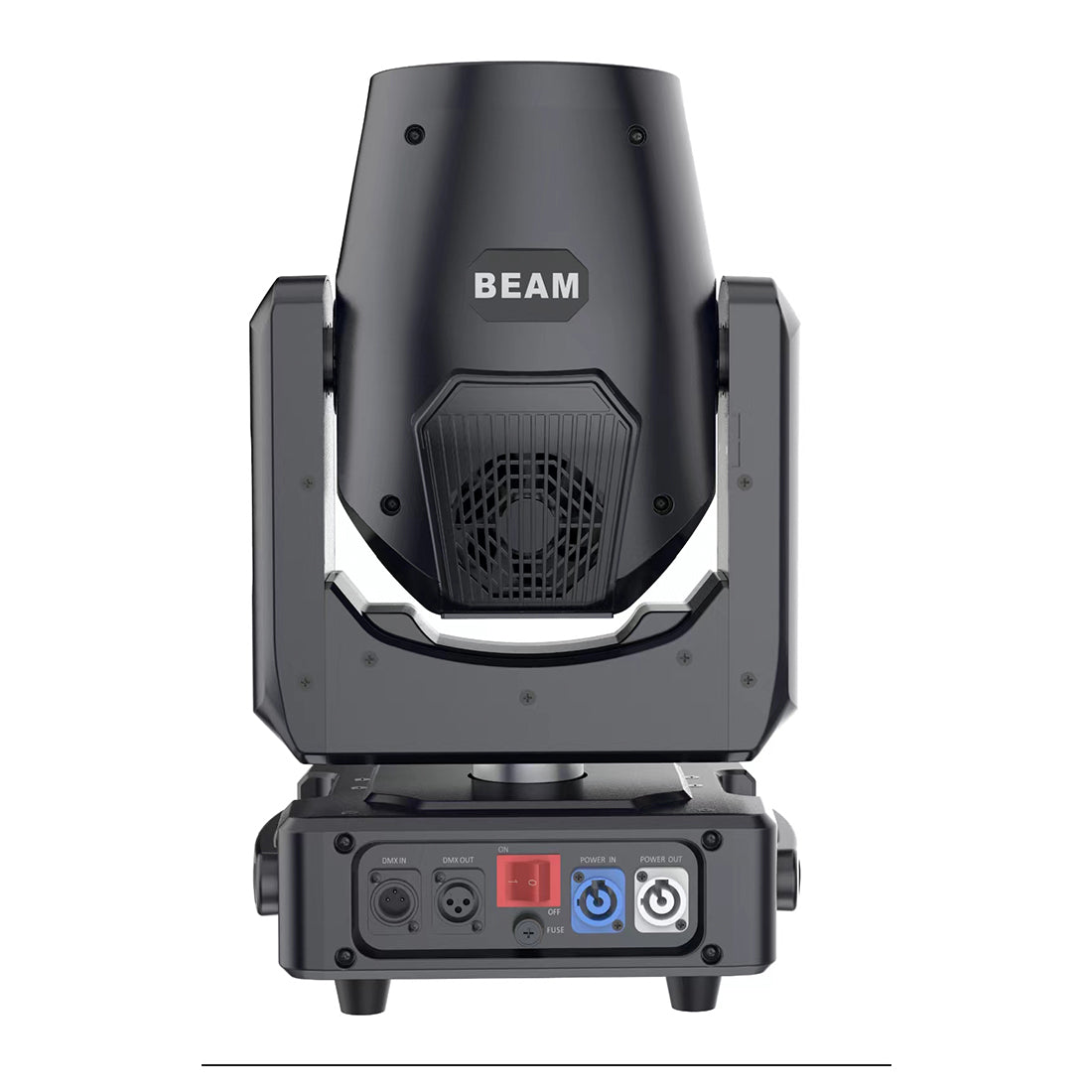

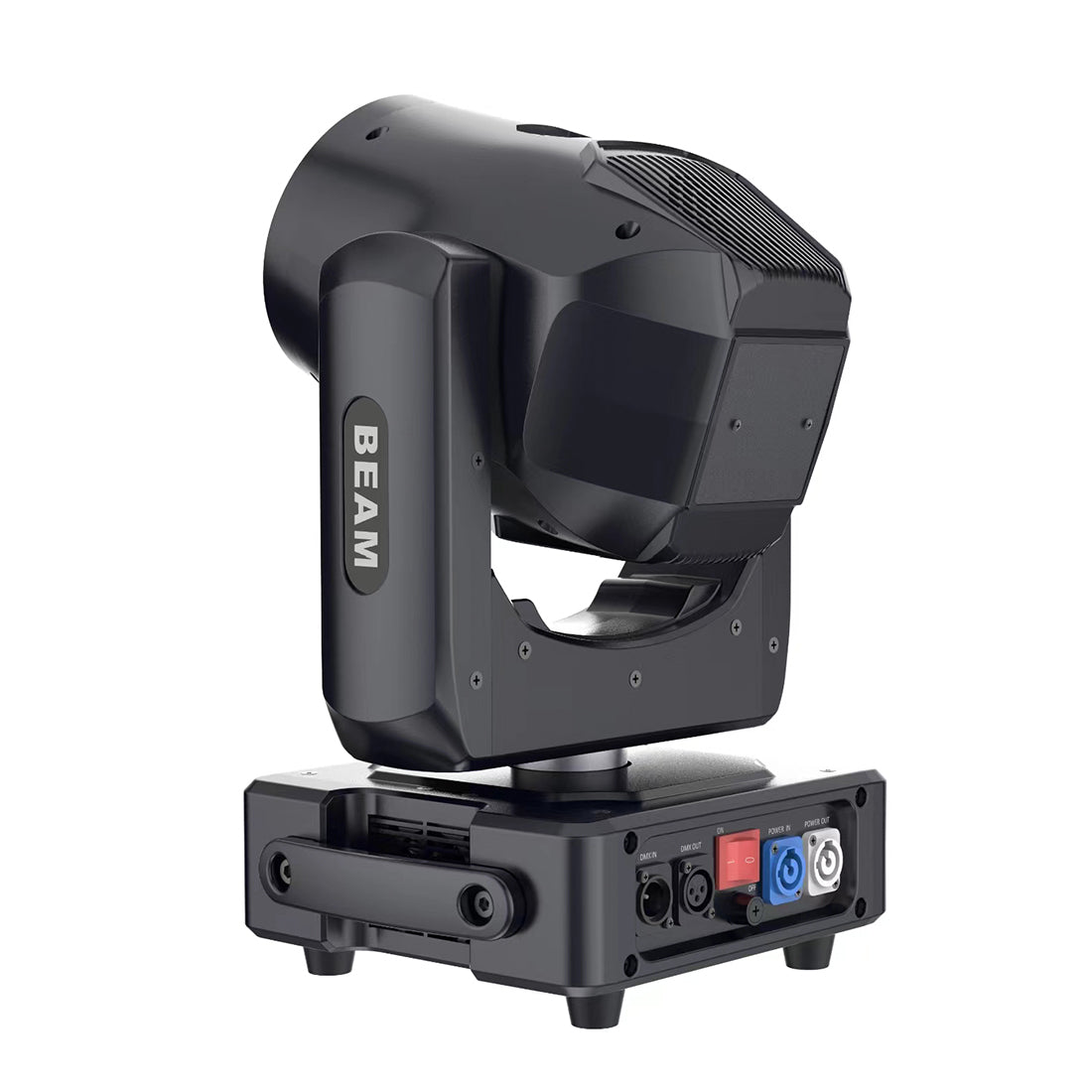

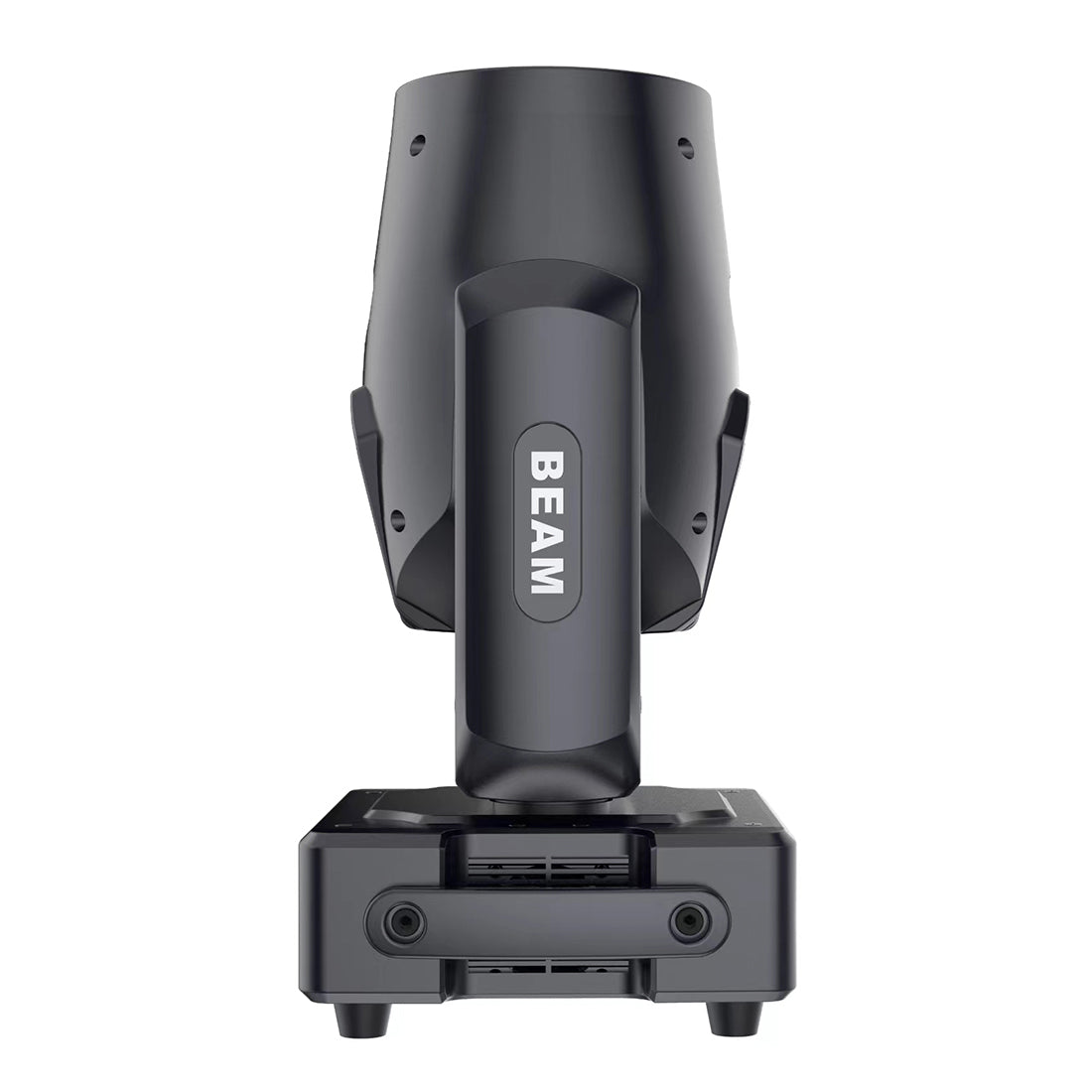

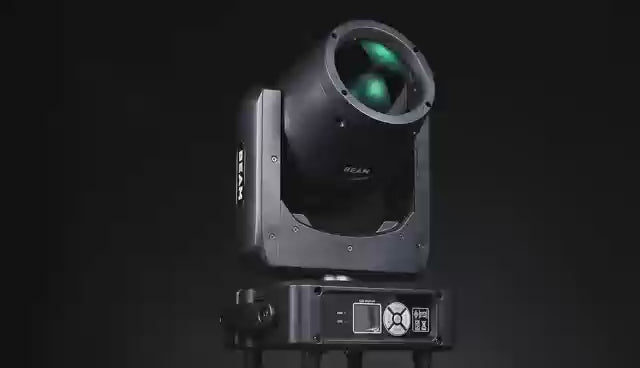

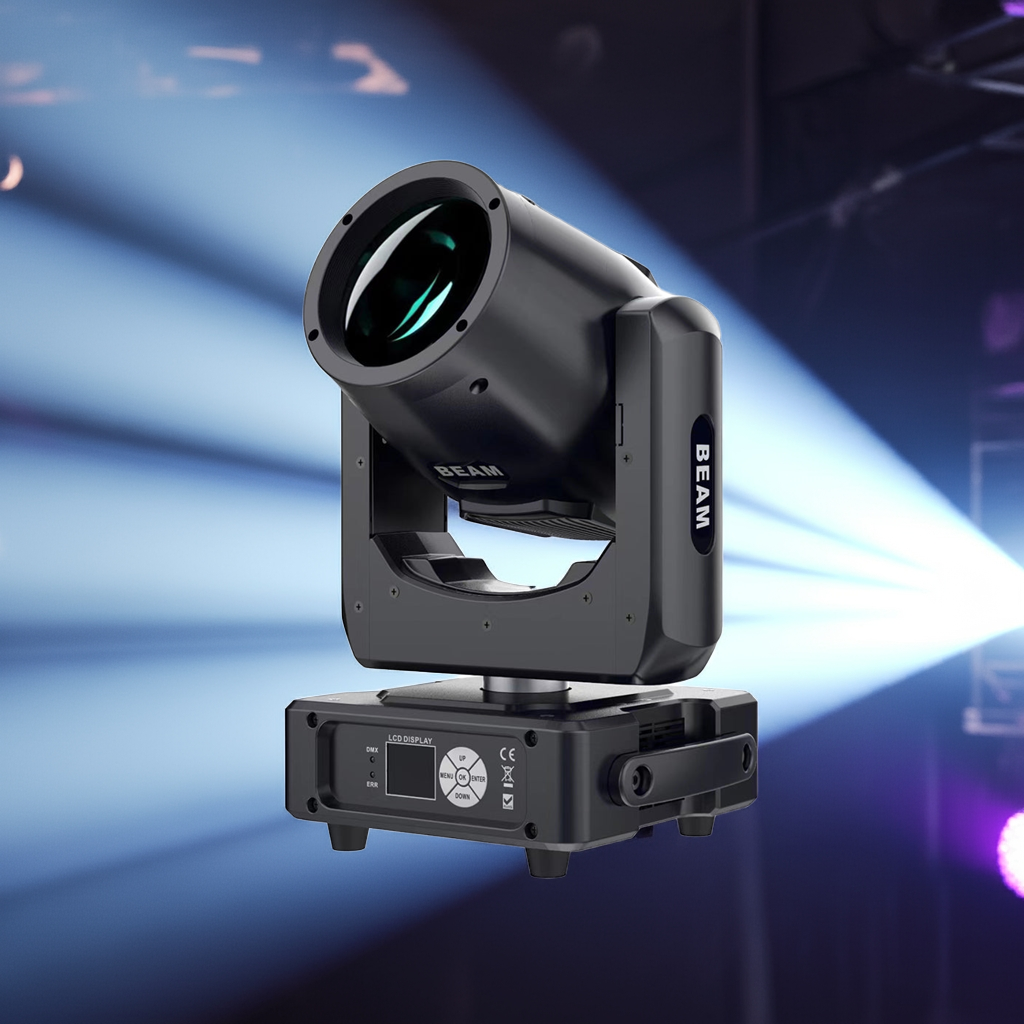

KB1 mini230 2R Moving Head Beam Light

Hilights

This high-performance moving head features a powerful MSD 230W lamp with a color temperature of 8000K and a lifespan of 2200 hours, delivering sharp 2° beam projection through a precision optical lens system.

Equipped with 540° pan / 270° tilt (16-bit precision) and electric correction, it ensures smooth and accurate positioning. The fixture offers a 16-channel DMX512 control mode, supporting full mechanical and free dimming (0–100%), macro strobe control, and overheat protection for reliability.

Built with a magnetic ballast and dual AC/DC power supply, it ensures stable performance with IP20 protection.

Perfect for professional stage lighting, concerts, and event productions requiring sharp beams and rich effects.

Specification

lamp:  MSD 230w (life: 2200 hours, Color temperature: 8000K)
Channel mode:16 DMX512 Channel
Pan scan：540°(16bit) Electric correction
Tilt scan：270° (16bit) Electric correction
Amazing dot matrix, four tact switch, 180° turning show
Color wheel: one color wheel, 14 kinds of color chips in one color wheel
Gobo: 14 gobos
Effect Wheel:  Rotation 8+16+24 prism, effect move, frost
0-100% mechanical dimming, mechanical dimming, and free dimming available.
strobe macro control available.
Lens optical system mechanical fouce .beam angle 2°
Overheat protection
Power Input: 100-240V，50/60Hz
Power Dissipation：350W
IP level: IP20
Magnetic ballast and AC/DC power supply
Gross weight：12kg
Packing Size: 50X34.5X36.5CM
Net weight：10.8KG
