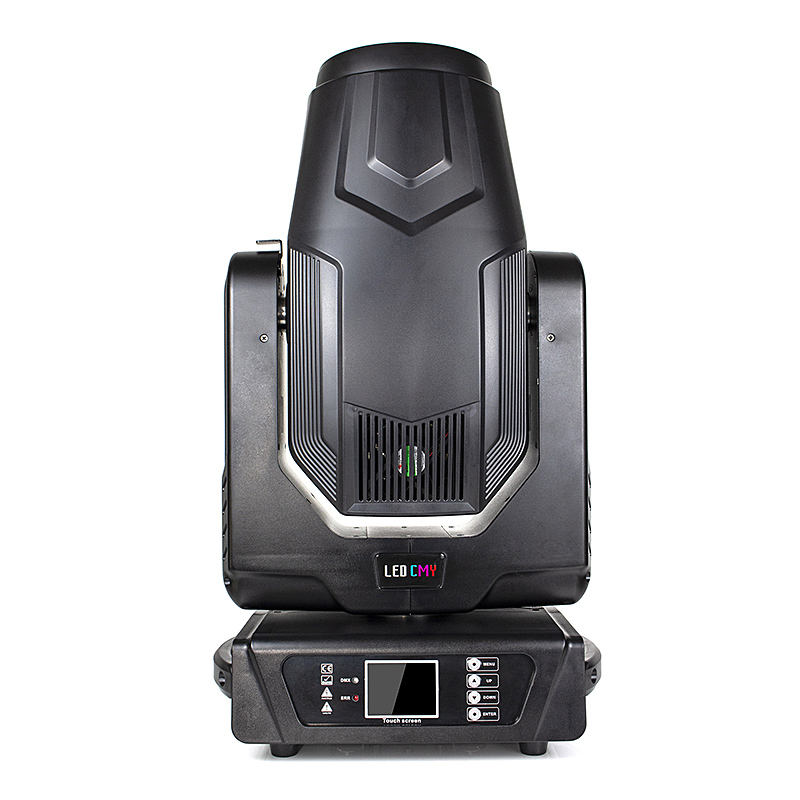

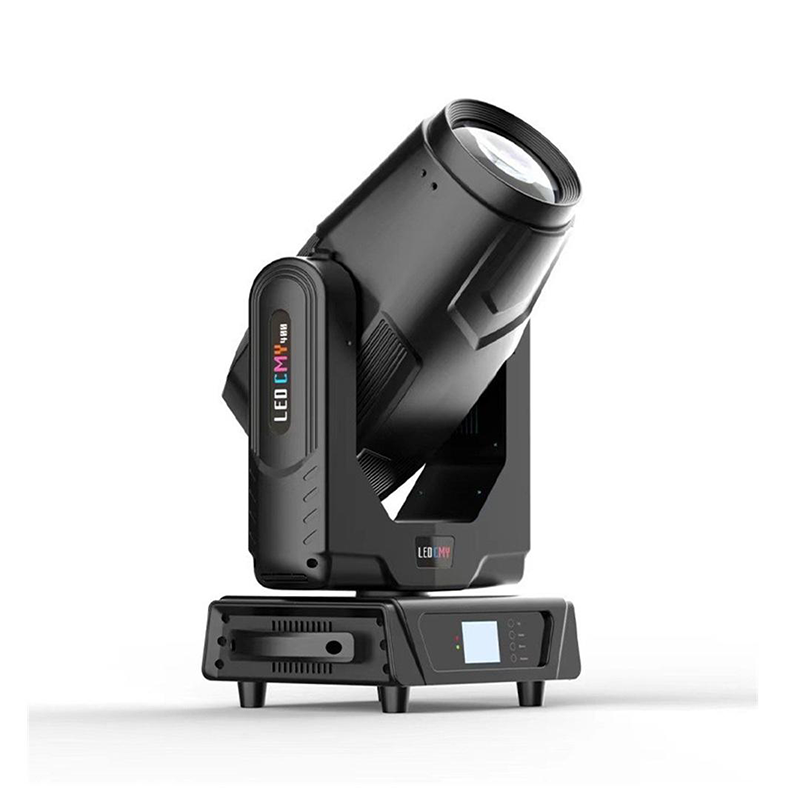

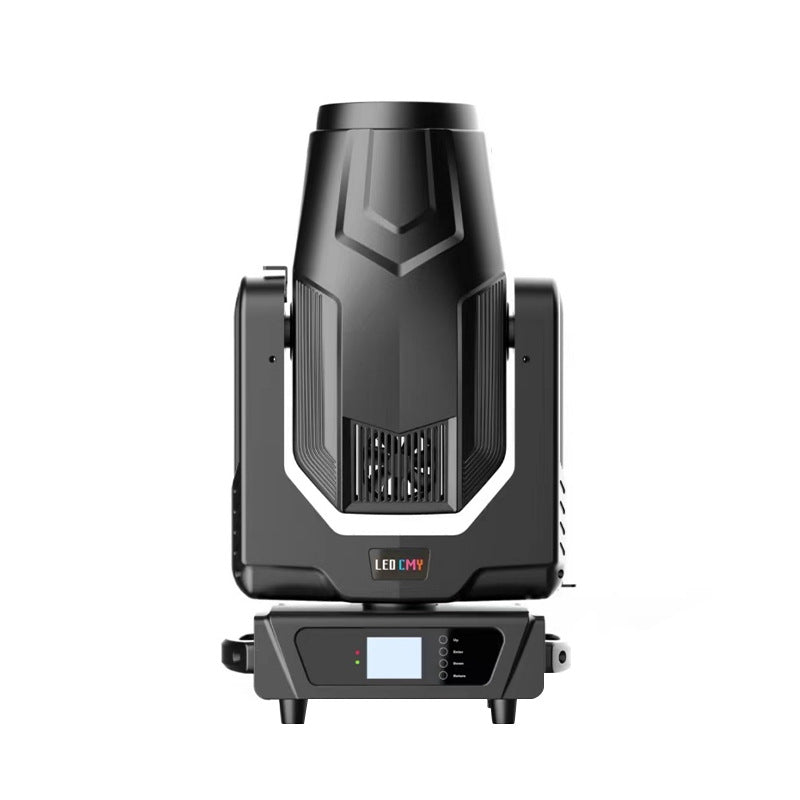

KB12 500W CMY Led Profile Light 3 in 1 LED Pattern Light

Key Advantages

• Enhanced Cooling: Features copper tube cooling for the LED module, complemented by a bi-directional axial fan for superior and reliable heat dissipation.

• Durable & Safe Casing: Constructed from high-temperature resistant, flame-retardant Nylon-Plastic and alloy materials. The streamlined, elegant design includes self-extinguishing properties upon fire removal for safety.

• RDM Functionality: Integrated RDM motherboard enables remote address setting and fixture diagnostics, significantly saving setup time and labor costs.

• Quiet Operation: Equipped with magnetic levitation, intelligently speed-controlled fans for optimized heat management and exceptionally quiet operation.

Specification

Voltage/Frequency AC100-240V, 50/60Hz

Max Power Consumption 600W

Light Source High-Brightness 500W LED Module

Color Temperature (CT) 7800K

LED Lifespan 20,000 Hours

Net Weight 23 kg

Product Dimensions 39 x 28 x 67 cm

Zoom Range (Beam Angle) 4°–40° linear zoom

Focus Electronic linear focus, with autofocus function

Strobe 0–20 Hz Variable Strobe Speed

CMY Mixing CMY color mixing system for uniform and smooth stepless color transitions.

Color Wheel 8 dichroic colors + Open (White), plus linear

CTO filter and bi-directional rainbow effect.

Framing System 4 groups of 8-way cutting blades, enabling precise shaping and full blackout.

Static Gobo Wheel 12 fixed gobos + Open, with gobo shake effect.

Rotating Gobo Wheel 7 rotating, indexable gobos + Open.

Prism System 2 switchable prism wheels (1 x 8-facet circular, 1 x 6-linear prism). Both are bi-directionally rotatable and indexable. Prisms can be overlaid (stacked).

Movement (Pan/Tilt) Pan 540°, Tilt 270°, with automatic Pan/Tilt position correction.

Control Modes DMX512, Auto-Run, Master/Slave, Sound-Active, and RDM.

DMX Channels 20 or 24 Channels (Selectable)

Display 2.8-inch LCD touch screen with high-sensitivity physical navigation buttons.
