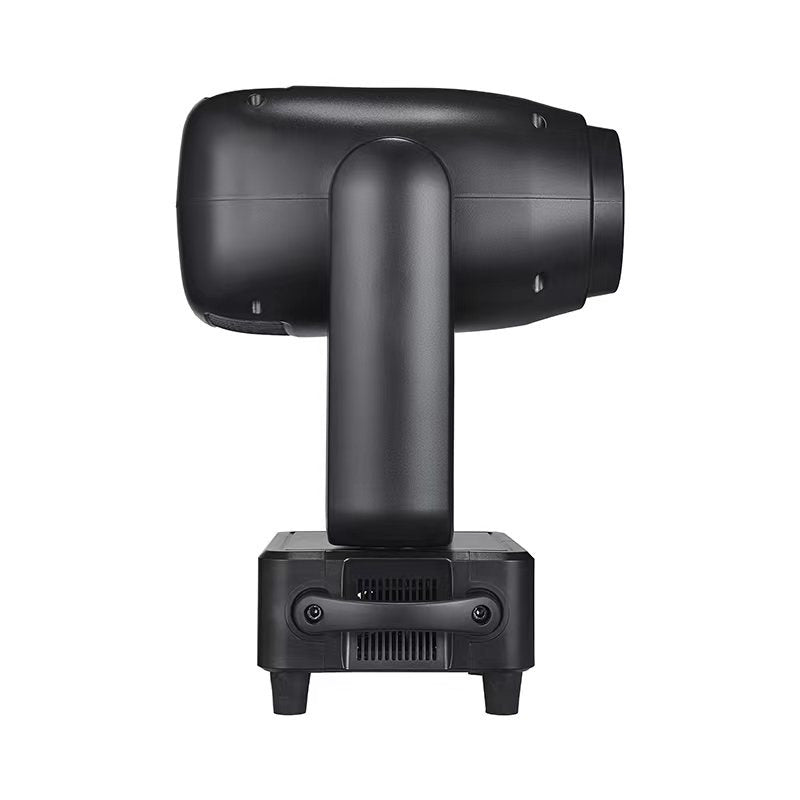

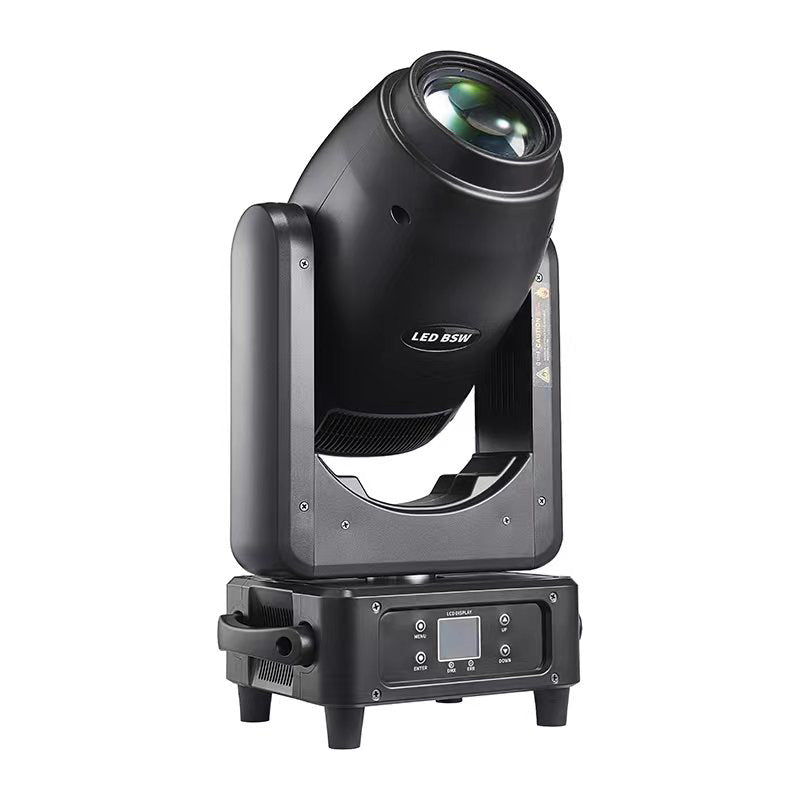

KB6 300W LED 3 in 1 BSW Moving Head Light

Specification:

• Rated voltage: AC100V~240V 50/60Hz

  Bulb specification: 300W white LED module light source

  Rated life: 20000 hours, color temperature: 9000K

  Color: With macro command function Color dial: 14 colors+white light full color/half color/linear color, variable speed bidirectional rainbow effect, built-in high-efficiency Hall device

  Fixed pattern: 2-level beam adjustment. 1 fixed pattern disc: 6 patterns+1 section of flowing water effect+white light, with bidirectional variable speed rotation and built-in high-efficiency Hall device

  Rotating patterns: 6 exquisitely customized rotatable glass patterns+1 water pattern, with built-in high-efficiency Hall device

  Prism: 1 8-prism, capable of bidirectional variable speed rotation, with indexing function and variable speed shaking effect

  Soft light: 1 soft light mirror with 0-100% linear adjustment

  Focusing: DMA linear focusing with automatic focusing function

  Amplification: high-precision glass optical lens, linear amplification 0-45 degrees

  Electronic strobe, 0.3-25 times/second, with options for synchronous and asynchronous random strobes

  Dimming: Electronic dimming with 0-100% linear adjustment, gamma curve dimming frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and smoothness without flickering, stable constant current drive and power supply, suitable for recording and shooting

  Rotation angle: XY axis is driven by a high-speed silent 60 three-phase motor and equipped with a high-precision magnetic coding positioning device to make the operation positioning more accurate. In case of misoperation, it can automatically return to its original position, and the horizontal and vertical speeds can be adjusted; XY axis rotation function and reversal function,

  Horizontal direction 540 ° (16 bit accuracy scanning), vertical direction 270 ° (16 bit accuracy scanning)

  Control mode: 16 (simplified)/19 (standard) two channel control modes, standard DMX512 protocol, RDM protocol

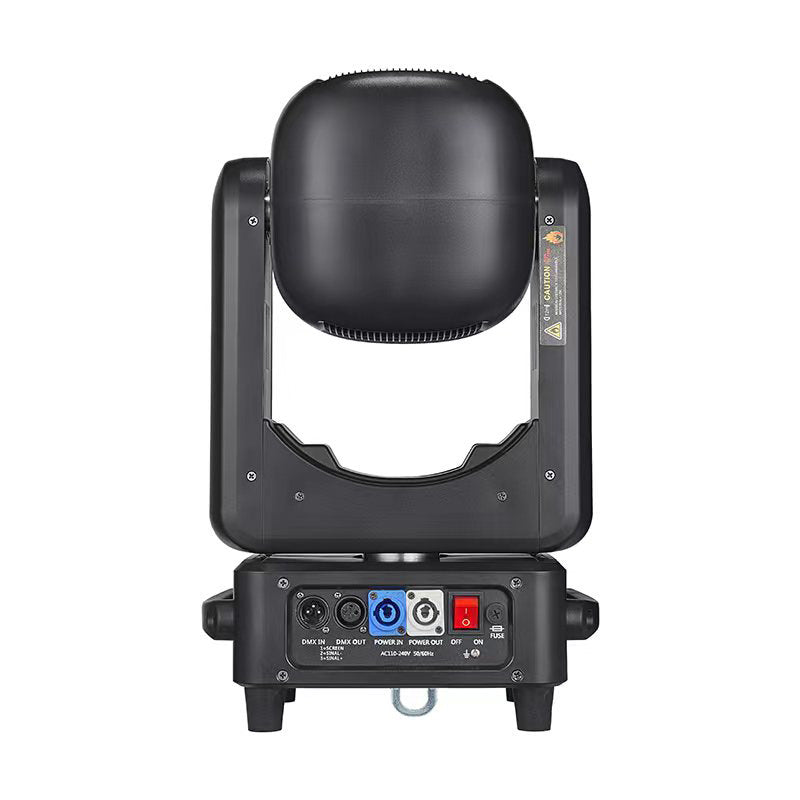

  Control interface: DMX512 interface (3-core/optional 5-core), power cord handle socket

  Sleep function: Advanced technology is used to achieve remote sleep function, which automatically enters sleep mode when the lamp is disconnected, making the lamp more stable and safe

  Display function: 1.7-inch LCD screen, bilingual menu in Chinese and English, sensor fault display, temperature display

  Heat dissipation system: Adopting high thermal conductivity copper tube heat sink and intelligent monitoring technology for fans

  Automatically adjust the fan speed according to the temperature of the lighting fixture, with built-in overheat protection intelligent system/intelligent temperature and noise balance module
