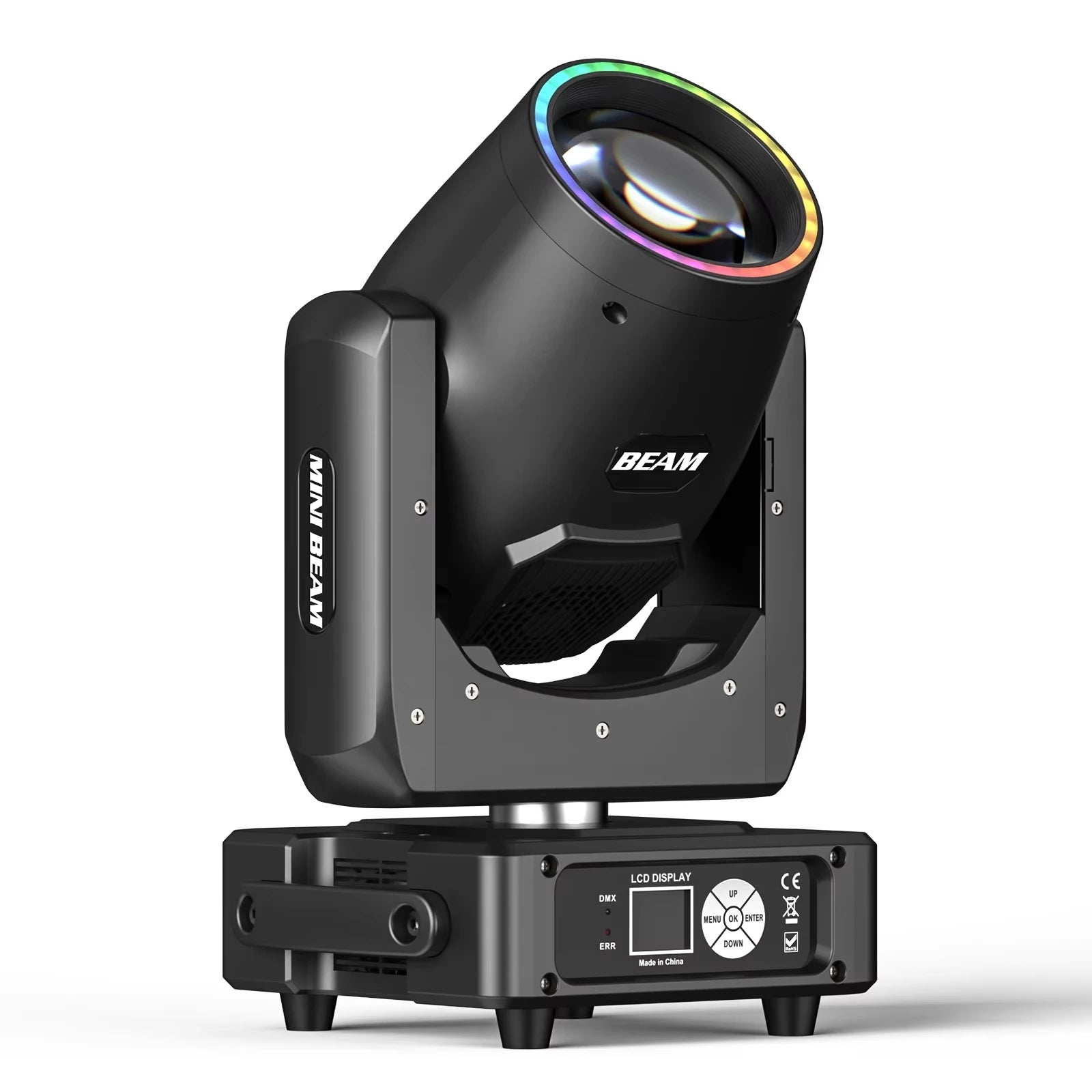

KB6 Mini230 Moving Head Beam with RGB LED Strip
- Sale price
- $330.00 USD
- Regular price
-
- Regular price
- $330.00 USD
- Unit price
- per
Guaranteed safe checkout
Couldn't load pickup availability
Description
Description
Elevate your stage production with the KB6 Mini230
A compact yet powerful Moving Head Beam designed for professional DJs, clubs, and events. This versatile fixture combines a razor-sharp beam with a stunning visual twist: a built-in RGB LED strip featuring 27 LEDs for an incredible 48 unique lighting effects. Create dynamic honeycomb prism effects, mesmerizing rainbow washes, and intricate patterns with its 48-facet prism and 14 fixed gobos.
With 13 vibrant colors and flexible motion control (540° pan, 270° tilt), this Moving Head Beam delivers unparalleled creative freedom. Advanced features like DMX512/RDM control, sound-activated mode via a built-in microphone, and easy daisy-chaining of up to 6 units make setup and operation a breeze. Housed in a durable casing with quick-lock brackets for fast installation, the KB6 Mini230 is the ultimate lighting tool for creating a high-impact, professional light show every time.
Specification:
Light Source：1PCS white 230W OSAM Light Bulb + 27PCS 0.5w RGBW three and a LED lamp beads
Color temperature: 7000K-8000K
Lamp output luminous flux: 9800lm
LED average life:2000H
Optical systems：
Angle of light: 2.3°
Effective control distance: 5-30M
Illumination: 230000Lux@10 meters
Prism/fogging piece：
1PCS 48 ling honeycomb mirror
colorful fogging: rainbow effect + fogging effect
Color plate: 13+1 color plate (13 color pieces + 1 white light hole)
Fixed gobo disk: 14+1(14 patterns + 1 white light hole)
Other Effects：
Motorized focusing system：focusing angle range: 2-8°
Multiple speed strobe effect：1-10Hz
X/Y axis：
X-axis：540°
Y-axis：270°
X-axis/Y-axis position out-of-step auto-correction
X-axis/Y-axis: 16 bit precision scanning
Fixed lock: horizontal/vertical lock
Control and Programming：
Control p rotocol: Standard DMX512 protocol+ RDM protocol
Channel Mode: self-propelled, voice-activated, master-slave,DMX512
Control channel: 18CH
Control panel: LCD display
Electrical and Interfaces：
Input voltage range: AC110V-240V 50/60Hz
Rated power: 450W
Data Connection: Three-core XLR input/output
Power Outlet: Power Connector Input/Output, Straight Outlet
Light Specification：

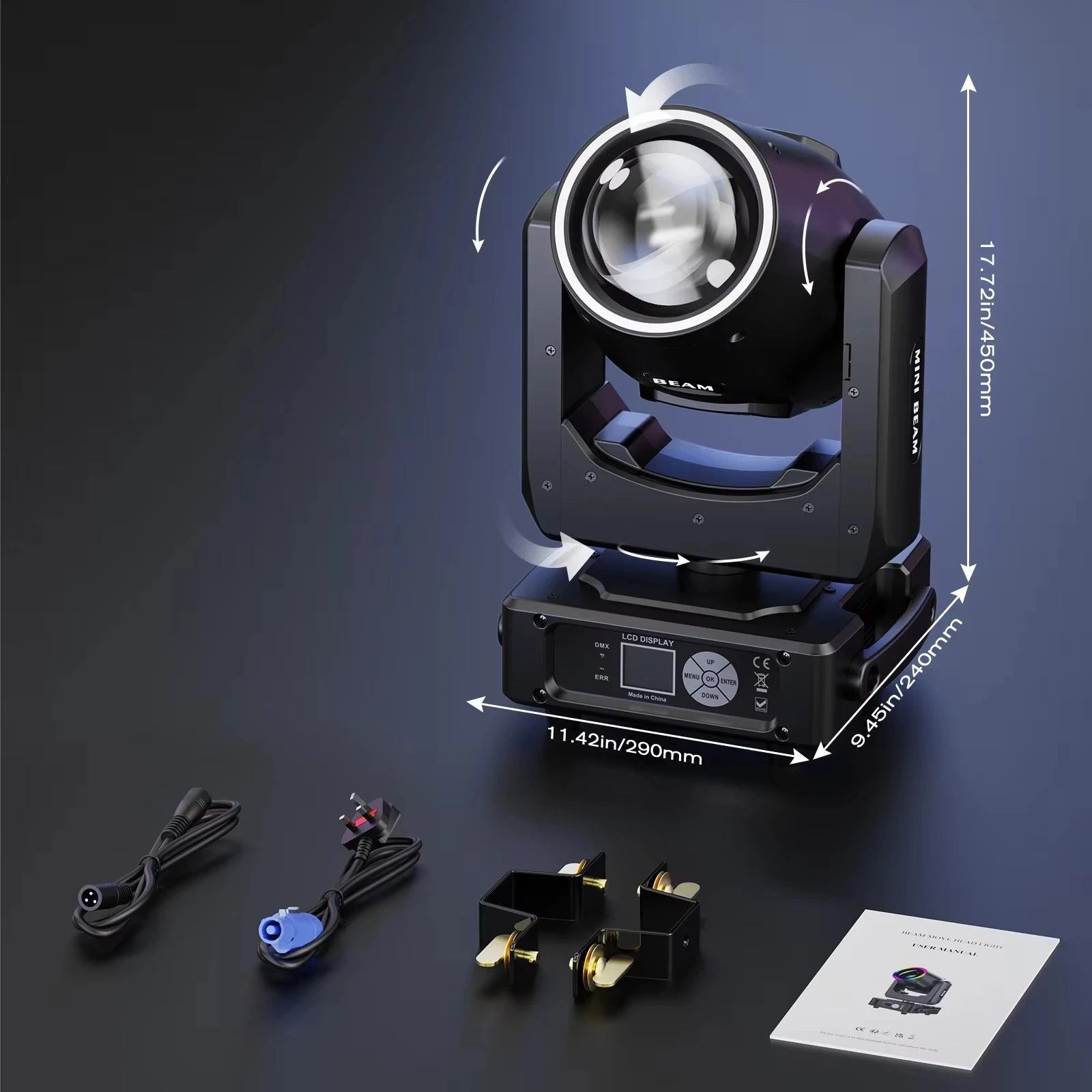

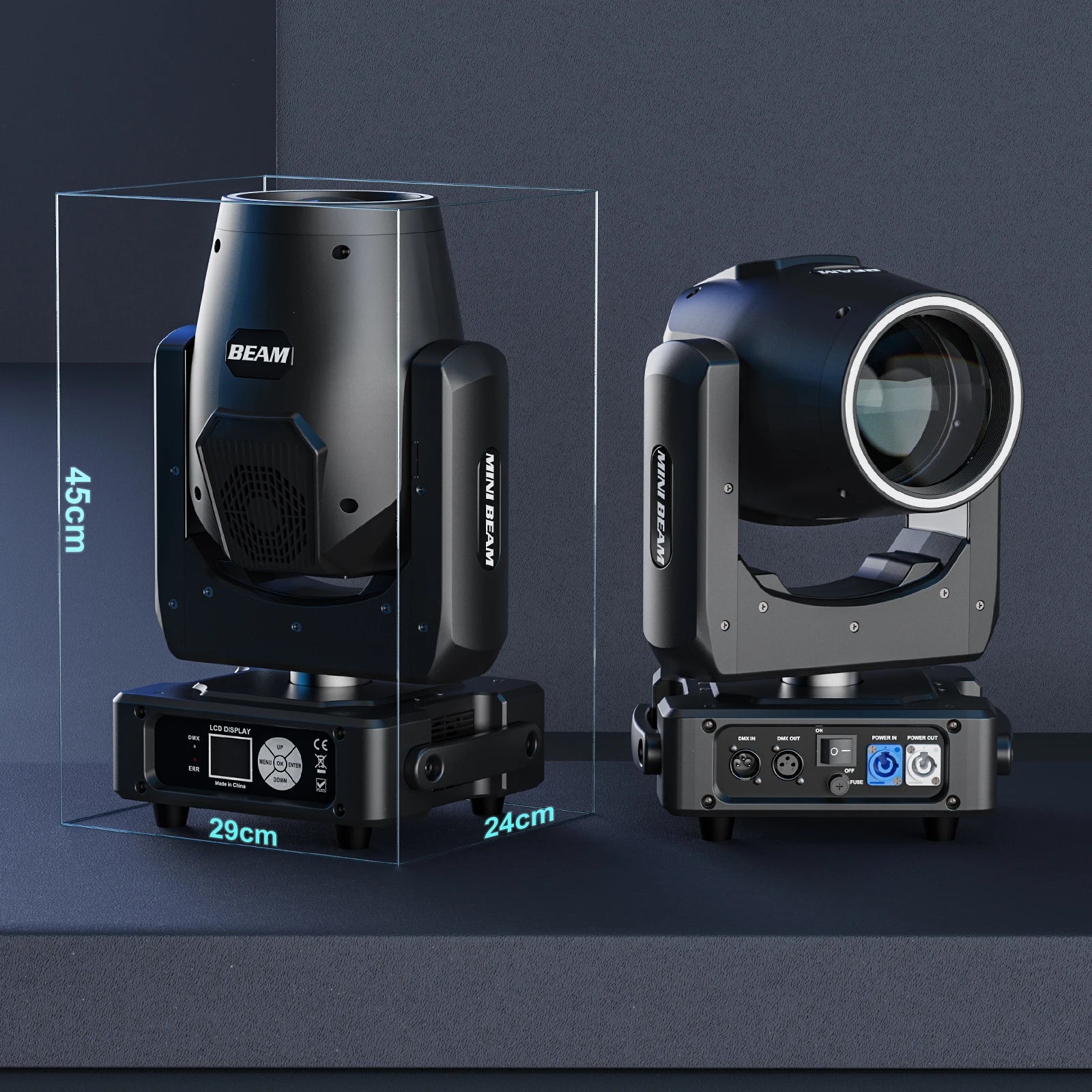

Light dimensions: 290x240x450mm ；Net weight 10.2kg
Carton size:370x350x500mm；Weight: 12kg
Working environment：
Maximum ambient temperature: 45°C
Minimum Operating Temperature: -10°C
Maximum surface temperature: 60°C
Protection class: IP20
Packing List:
1. Stage light *1
2. Stand *2
3. Power cord *1
4. Instruction manual *1
About Shipping & Tax & After Sales
Where to ship from?
Most of our products are shipped from Guangzhou,China, by air freight, DHL, UPS, FeDex. Tax included, and delivered to your door without any additional charge
How long is the shipping time?
Normally we need 2-5 days to prepare the goods, and the air shipping time is 10-12 days, so the delivery time is about 12-27 days.
Is tax included in the price?
To address global tariff changes and ensure a pleasant shopping experience, we ship to the US and EU countries through tax-inclusive channels. This means that US and EU customers purchase our products tax-free.
For other countries/regions that do not offer tax-free services, customers may need to handle customs clearance and pay import duties on their own. The specific tax amounts vary by country; please check your local tariff rates.
After-Sales and Repair Information
If a product malfunctions, please immediately record a clear video of the problem. We will investigate the cause, provide a reasonable solution, and ship parts and a repair instruction video.
The warranty period is one year, with free parts shipping within one year and lifetime repair technical guidance.
Please Note:
We will match the appropriate plug type based on your shipping country by default. If you require a specific plug type or voltage, please contact our customer service before placing your order.
For bulk purchases of more than 10 units, feel free to reach out to us for an exclusive discount or customized quotation.
Notified by email when this product becomes available
Customer Reviews

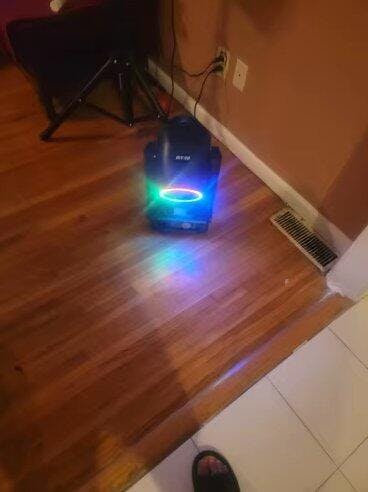

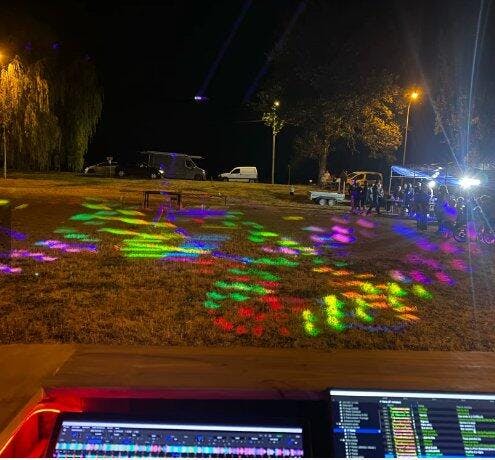

Super Highly Recommended, very bright lights in many beautiful colors and shapes, and above all very resistant to impacts. I compared it with a Beam 250 8R and it doesn't ask for anything from that one. I loved it and will continue buying more of these good quality shapes. I loved 10 out of 10% and they arrived super fast in time for my event, since I bought some Beam 250 8R and they didn't work well, the images come out incomplete but this is fantastic.
