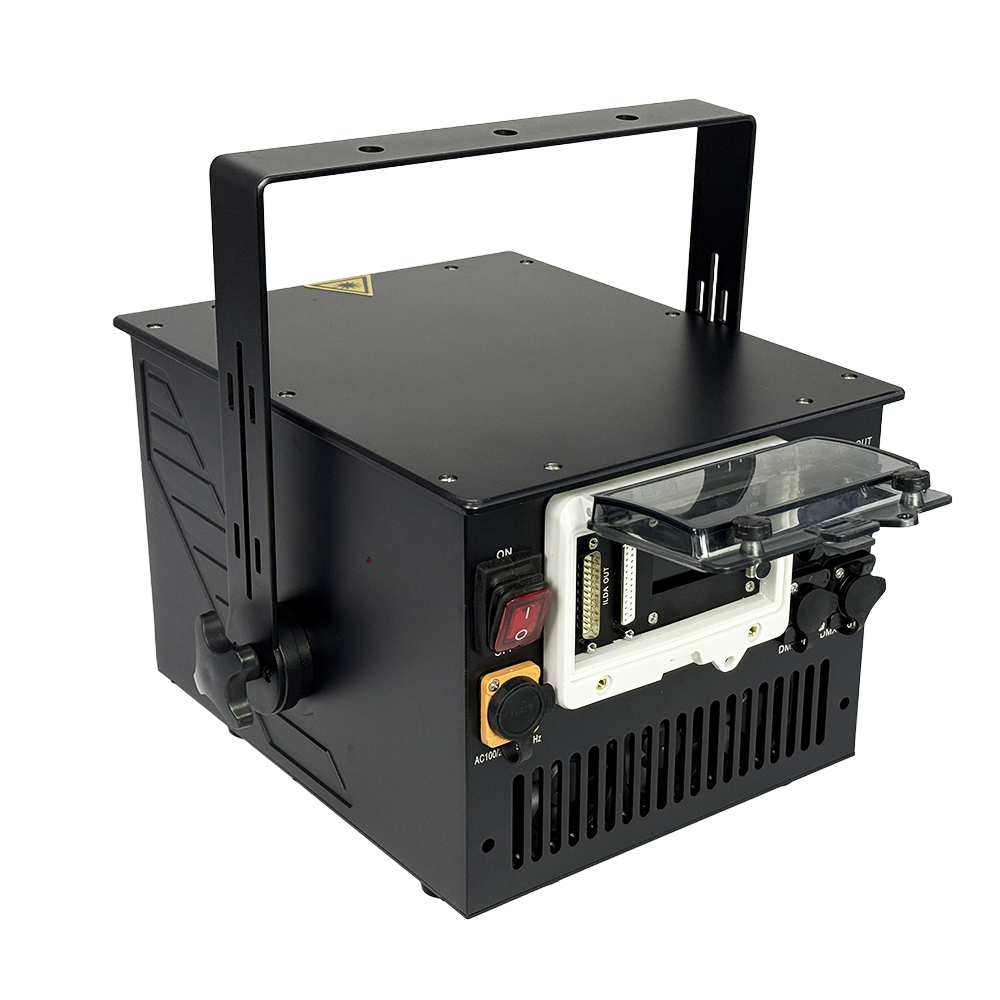

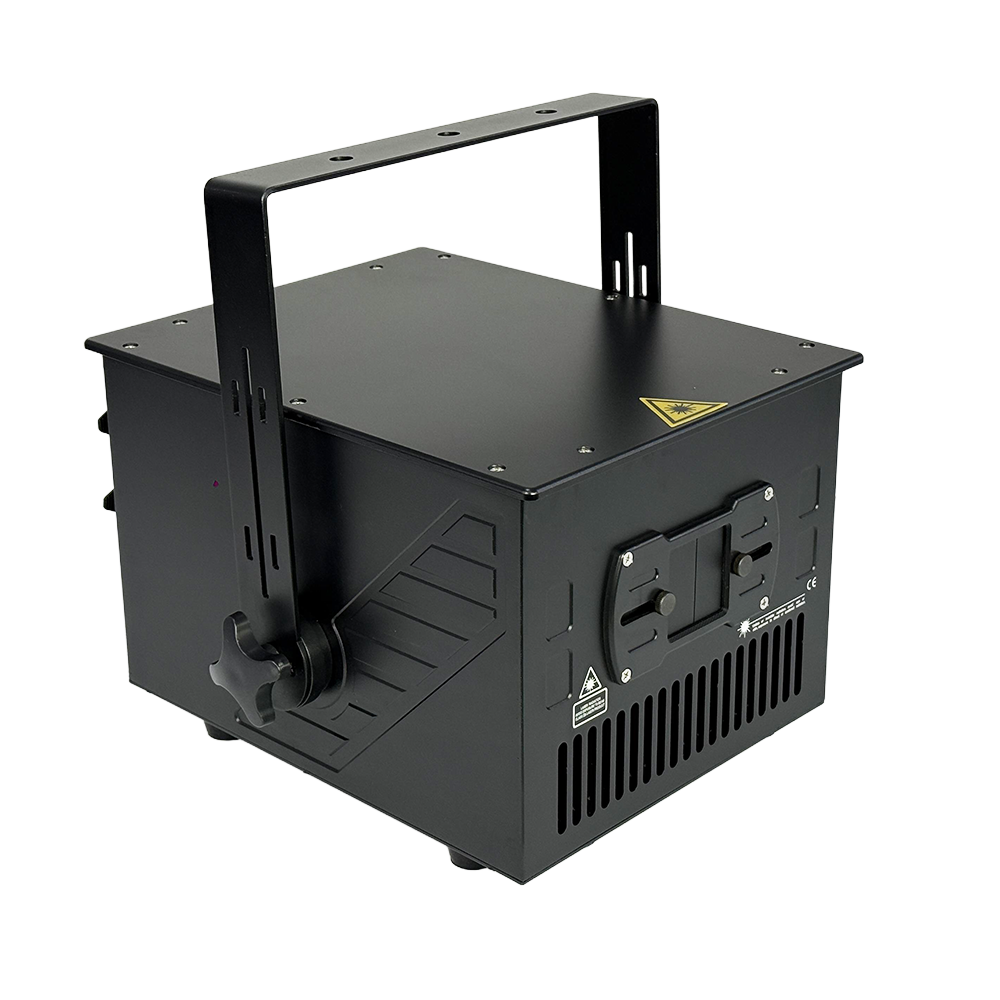

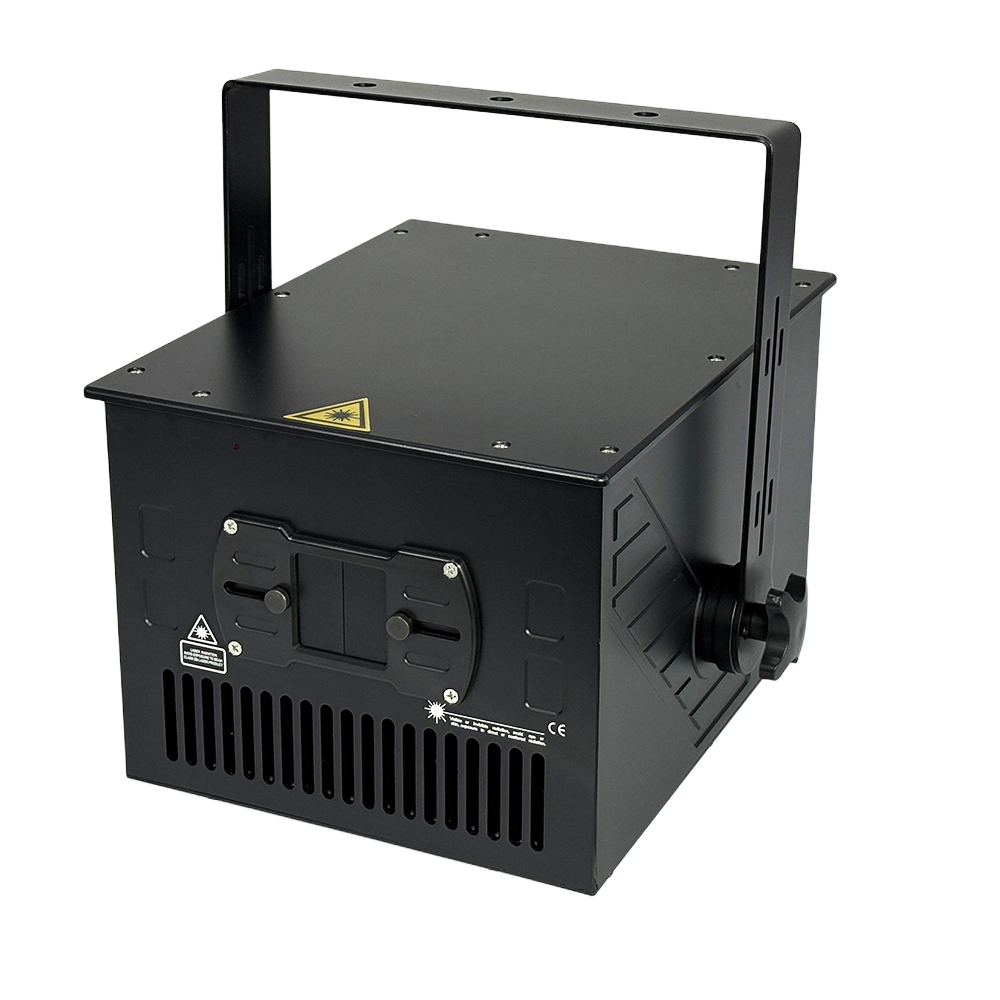

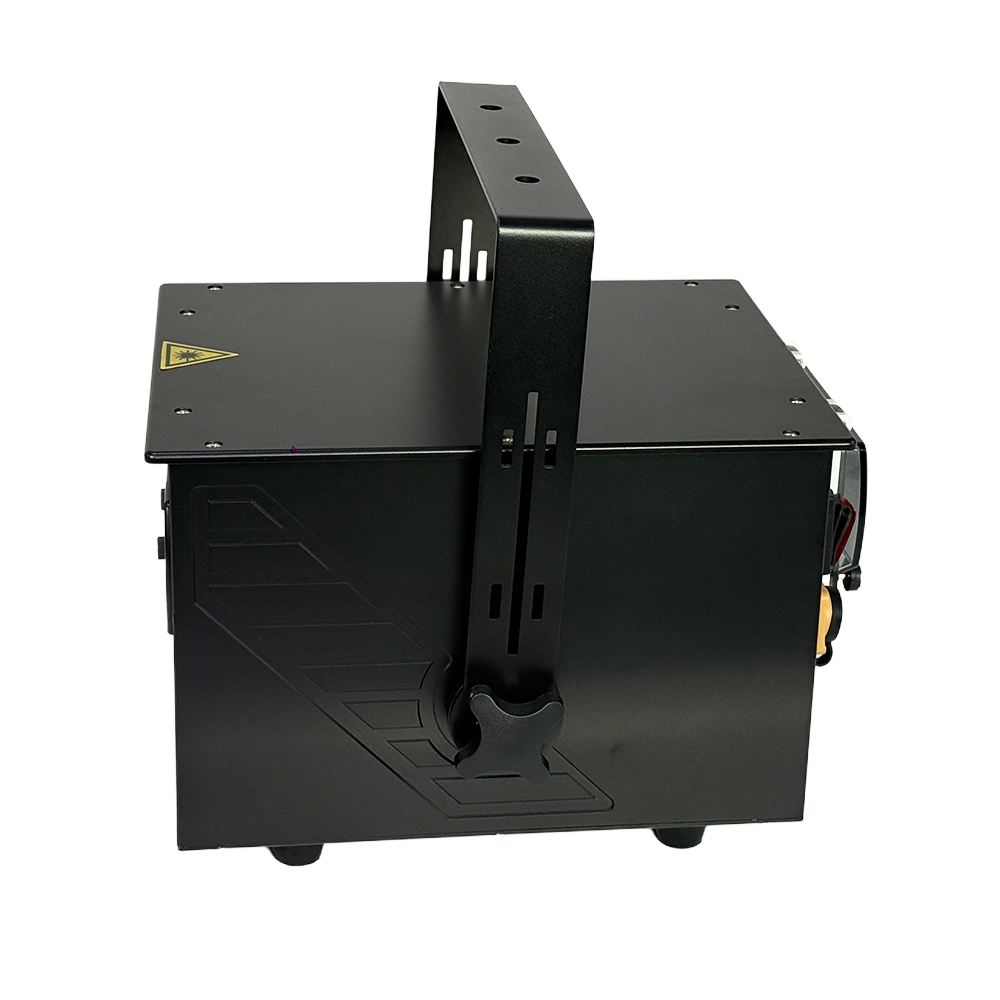

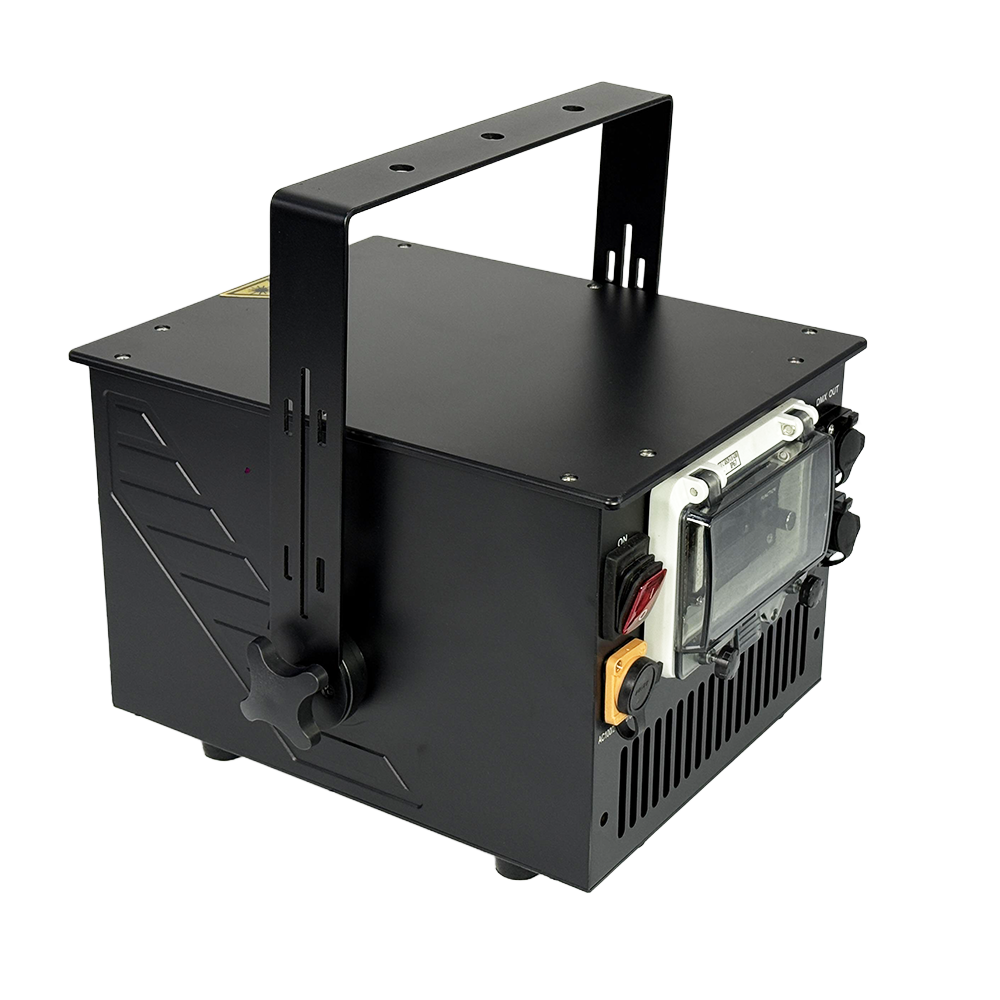

KLP1 Waterproof 10W/15W Outdoor Laser Light IP65

Why KLP1 10W/15W Outdoor Laser Lights Are your Best Choice?

• Precision Graphics Output: Utilizes a 25KPPS high-speed galvanometer scanning system to guarantee fluid, continuous, and crystal-clear image and animation projection.

• Ultimate Control Flexibility: Offers a comprehensive control suite: Mobile App Control, DMX512, ILDA PC Software, and built-in Sound Active, Auto-Run, and Master/Slave modes. This versatility makes the fixture perfect for both professional designers and novice users.

• Extensive Built-in Content: Includes hundreds of pre-loaded beam patterns and animation designs, supporting immediate use for beam animation effects, laser advertising, and detailed projection.

• Intelligent Safety Assurance: Features a specialized beam protection function that automatically shuts down the unit if a galvanometer failure results in a static, single beam—guaranteeing audience safety.

• Advanced Cooling System: Ensures long-term stability and performance. The laser unit benefits from TEC (Thermoelectric Cooling), supplemented by a powerful forced-air fan cooling the entire enclosure.

Specification

Input power supply: AC90-240,50-60HZ
Rated power: 200W
Laser power: RGB10W/RGB15W
Laser wavelength: Red light 638nm, green light 525nm, blue light 450nm
Mirror scanning system: 25KPPS high-speed mirror
Scanning angle of galvanometer: ± 30 °
Control mode: Mobile App Control/voice control/self-propelled/master-slave/DMX512/compatible with ILDA standard computer laser software
Control interface: International ILDA DB25 interface and RJ45 Ethernet interface, capable of connecting to general laser software such as Pangolin from the United States, and international DMX512 interface.
DMX special effects: functions such as pen breakage, flicker, rotation, movement, scrolling, image splitting, gradient drawing, color changing, and resizing
Safe and intelligent: No signal closing, switchable between DMX signal and PC signal. Equipped with a beam of light protection function, if there is a mirror malfunction, only one beam of light will be emitted and it will automatically shut off.
Working environment: indoor and outdoor (-30 ° C~45 ° C)
Protection level: IP65
Cooling system: The laser is equipped with TC cooling, and the entire machine is forced to cool by the fan

How to Control the 10W Outdoor Laser Light with the Mobile App?

Seamless Setup via Lovely Draw App

1. Download & Connect: Download the proprietary Lovely Draw App to your smartphone. Establish a connection between the App and the laser fixture directly via Bluetooth.

2. Intuitive Programming: The intuitive interface provides access to a comprehensive library of effects, including:

   • Custom Content: Drawing creation, custom text playback, and pattern selection.

   • Advanced Visuals: Personalized programming, blending effects, complex animation, Aurora Borealis (Northern Lights), and time tunnel visuals.

Full operational instructions and detailed tutorials are available within the in-app Help Center.
