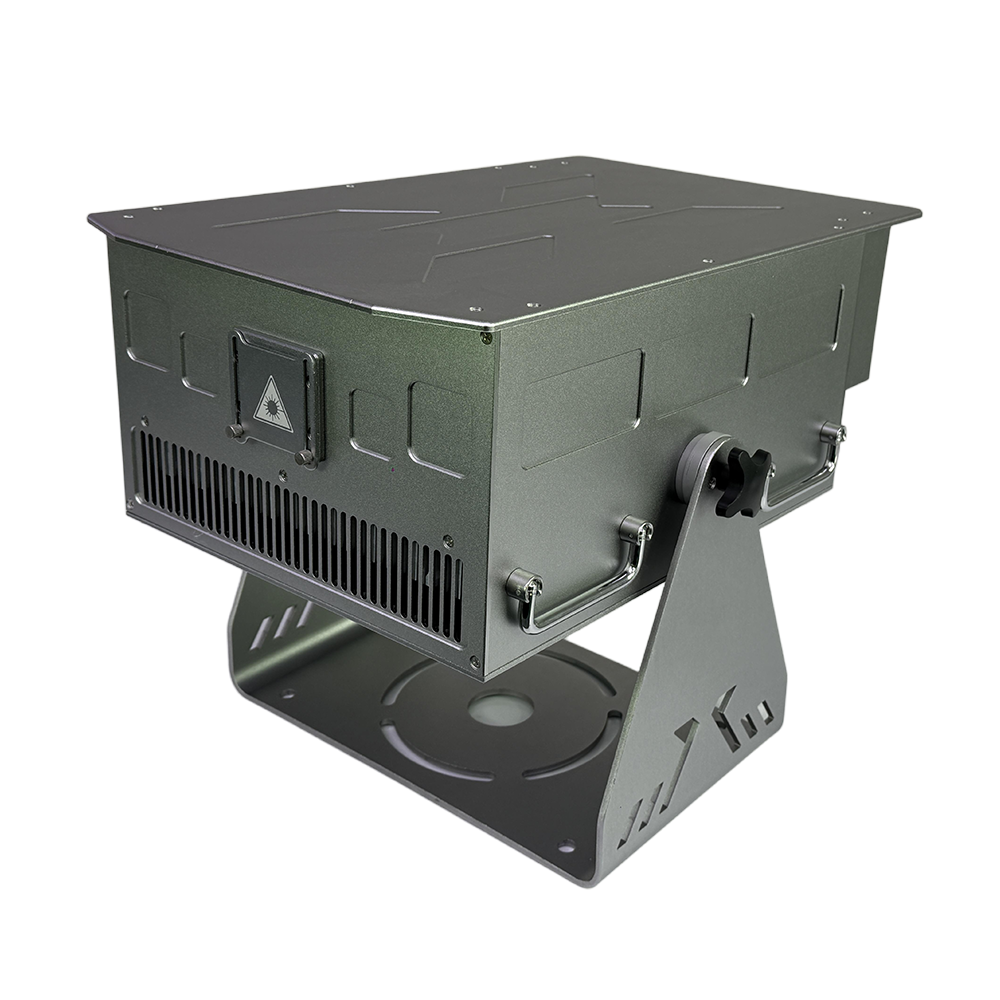

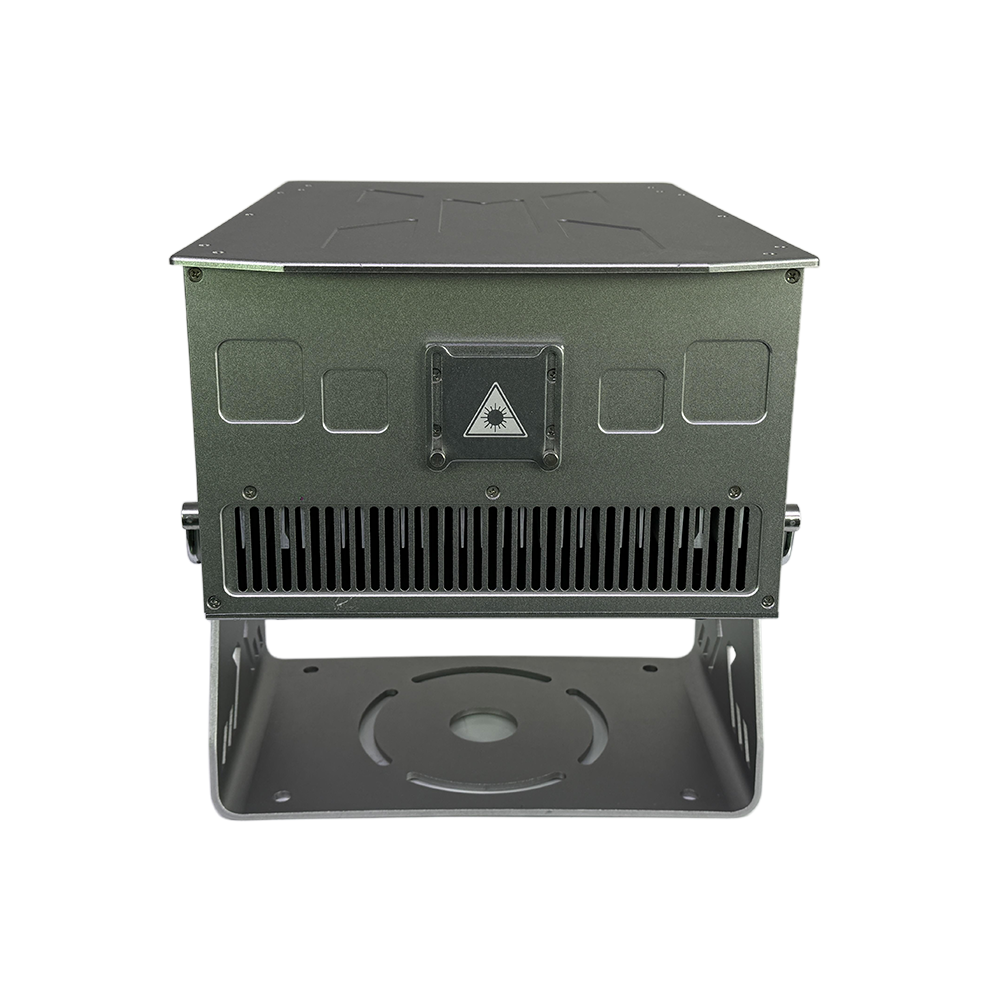

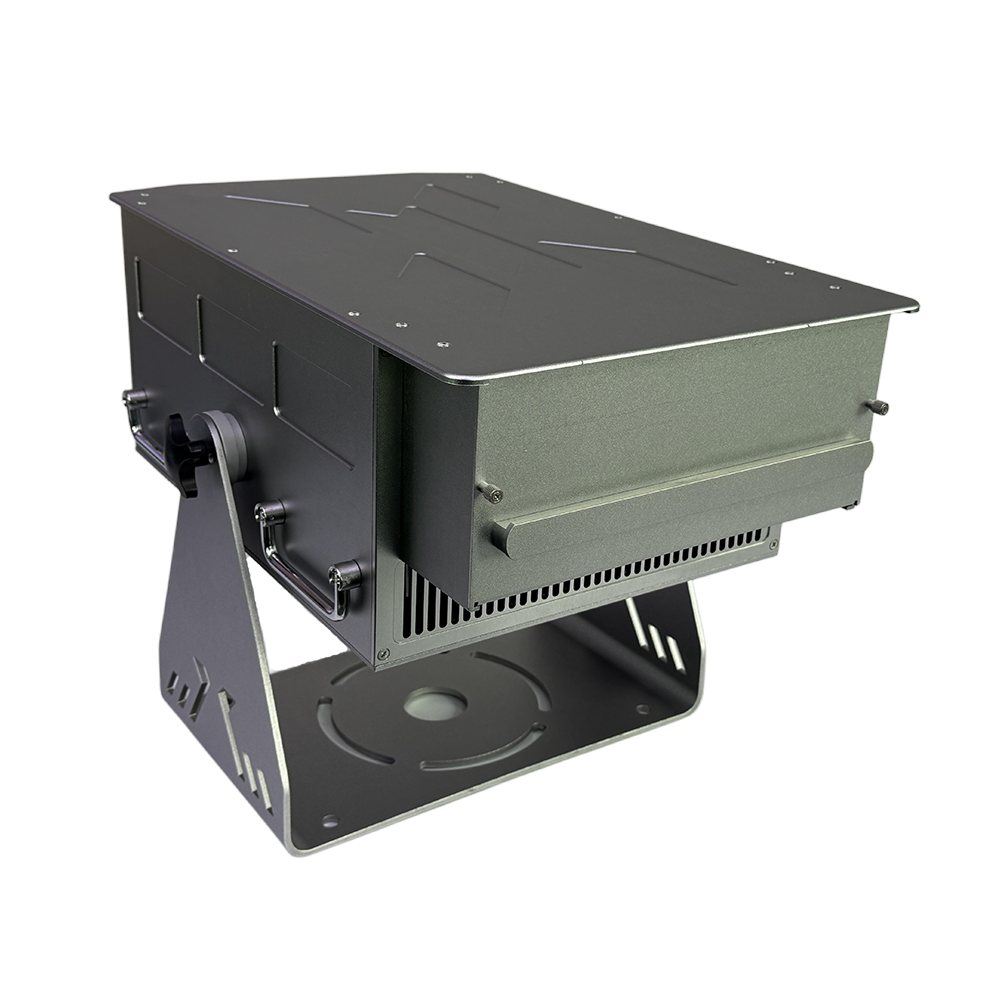

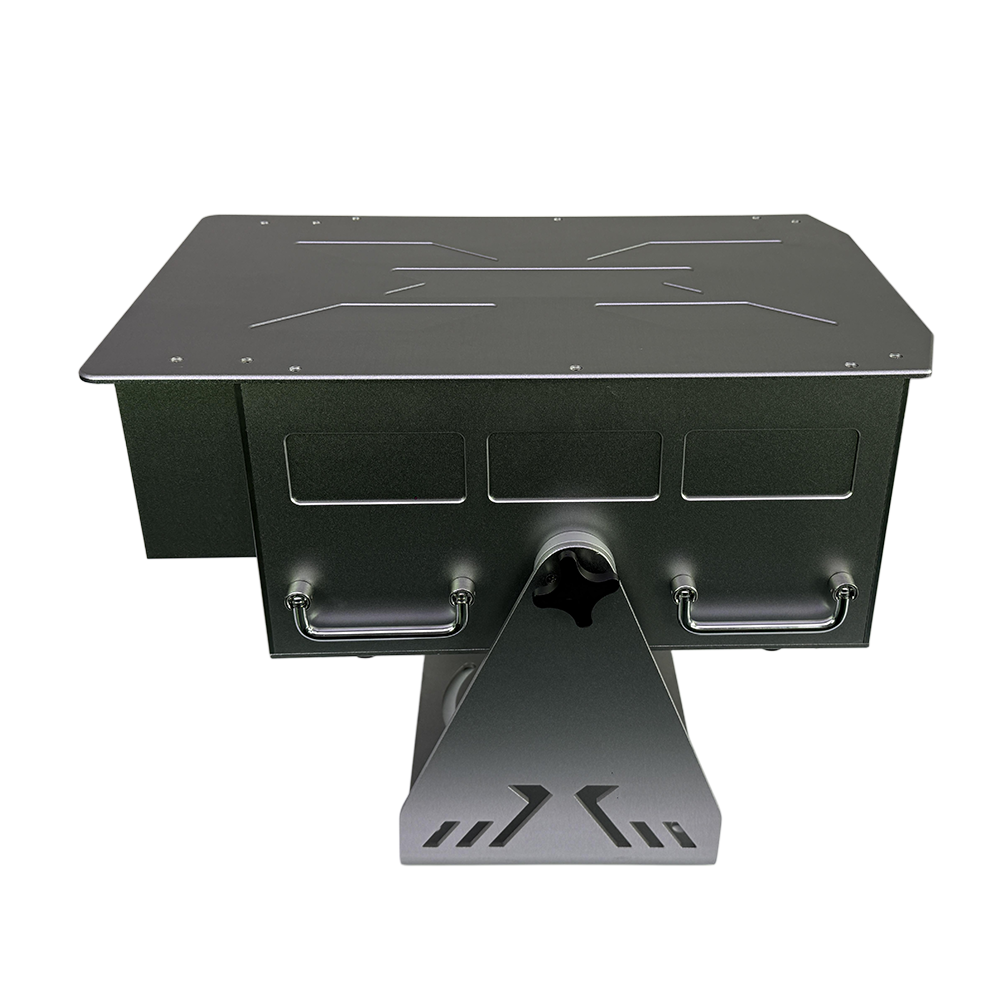

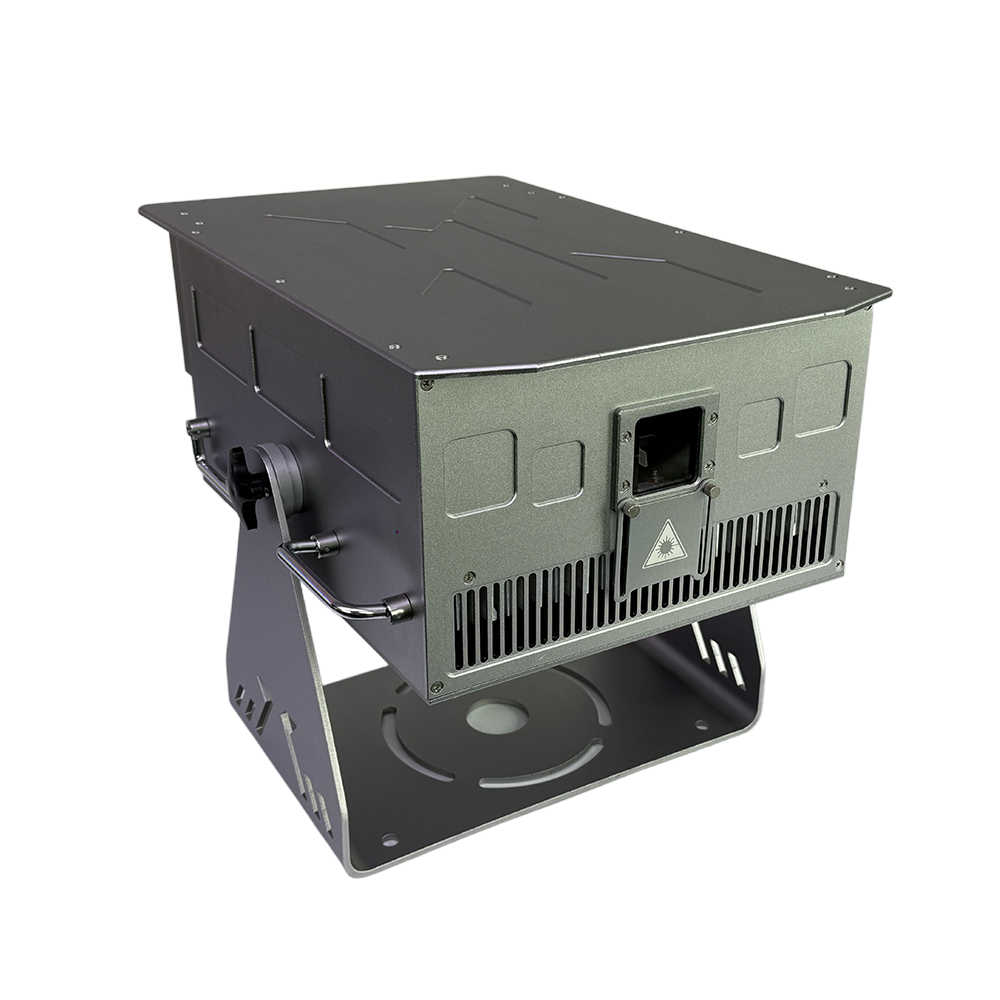

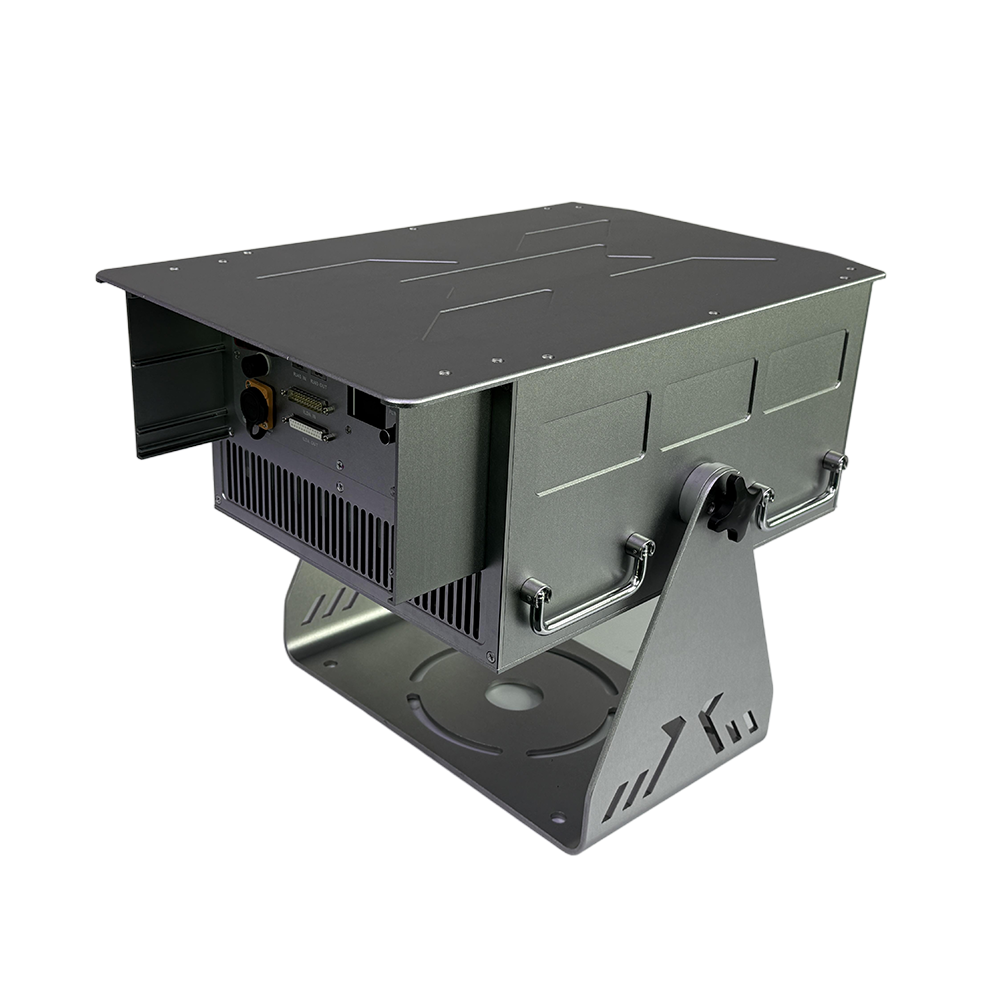

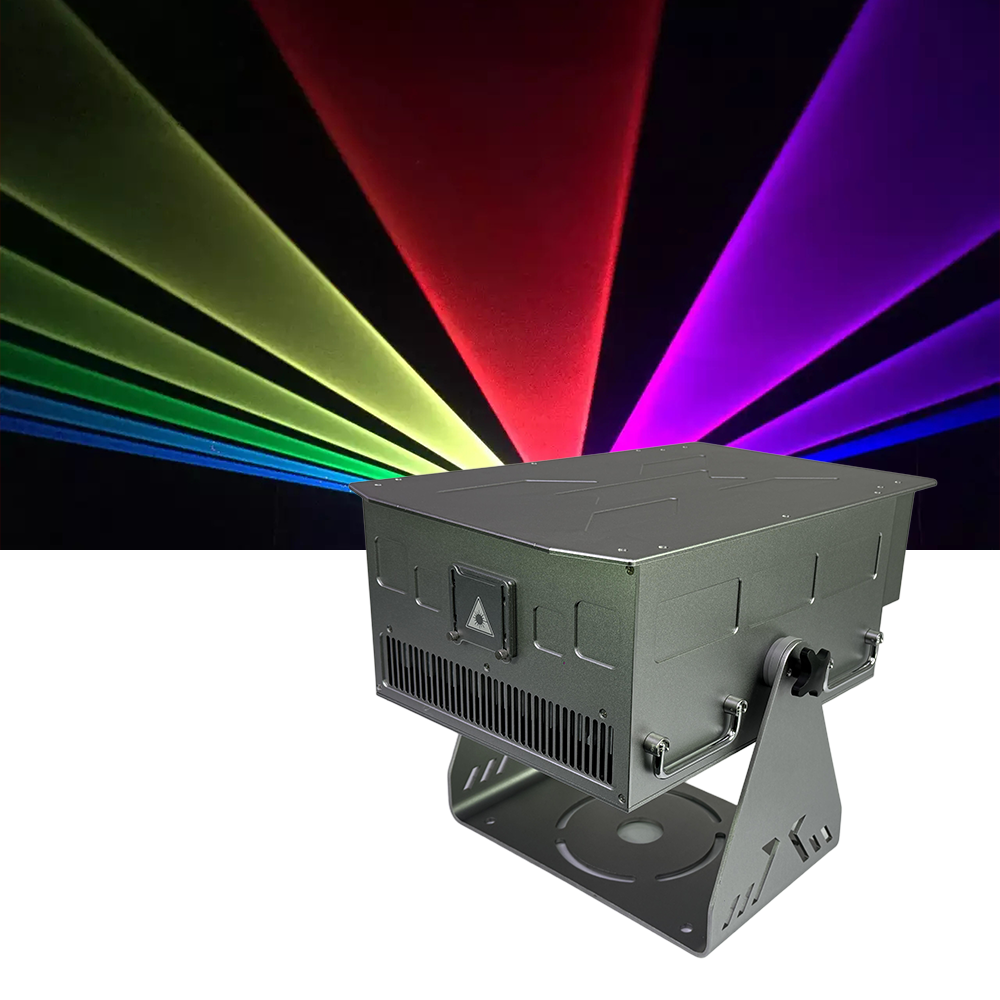

KLP2 Outdoor 20W Waterproof Laser Light IP65

The 20W Waterproof Laser Light is engineered for superior, professional-grade performance and ultimate resilience.

Featuring a powerful RGB 20W output and a robust IP65 protection level, this fixture is ready for both indoor and demanding outdoor environments, functioning reliably in temperatures from $-30^\circ\text{C}$ to $45^\circ\text{C}$. Its high-speed 40KPPS mirror system ensures dynamic, precise effects, controllable via Mobile App, DMX512, or ILDA computer software, all while benefiting from intelligent beam protection for enhanced safety.

Specification

Input power supply: AC90-240,50-60HZ
Rated power: 300W
Laser power: RGB20W
Laser wavelength: Red light 638nm, green light 525nm, blue light 450nm
Mirror scanning system: 40KPPS high-speed mirror
Scanning angle of galvanometer: ± 30 °
Control mode: Mobile App Control/voice control/self-propelled/master-slave/DMX512/compatible with ILDA standard computer laser software
Control interface: International ILDA DB25 interface and RJ45 Ethernet interface, capable of connecting to general laser software such as Pangolin from the United States, and international DMX512 interface.
DMX special effects: functions such as pen breakage, flicker, rotation, movement, scrolling, image splitting, gradient drawing, color changing, and resizing
Safe and intelligent: No signal closing, switchable between DMX signal and PC signal. Equipped with a beam of light protection function, if there is a mirror malfunction, only one beam of light will be emitted and it will automatically shut off.
Working environment: indoor and outdoor (-30 ° C~45 ° C)
Protection level: IP65
Cooling system: The laser is equipped with TC cooling, and the entire machine is forced to cool by the fan

How to Control the 20W Outdoor Laser Light with the Mobile App?

Seamless Setup via Lovely Draw App

1. Download & Connect: Download the proprietary Lovely Draw App to your smartphone. Establish a connection between the App and the laser fixture directly via Bluetooth.

2. Intuitive Programming: The intuitive interface provides access to a comprehensive library of effects, including:

   • Custom Content: Drawing creation, custom text playback, and pattern selection.

   • Advanced Visuals: Personalized programming, blending effects, complex animation, Aurora Borealis (Northern Lights), and time tunnel visuals.

Full operational instructions and detailed tutorials are available within the in-app Help Center.
