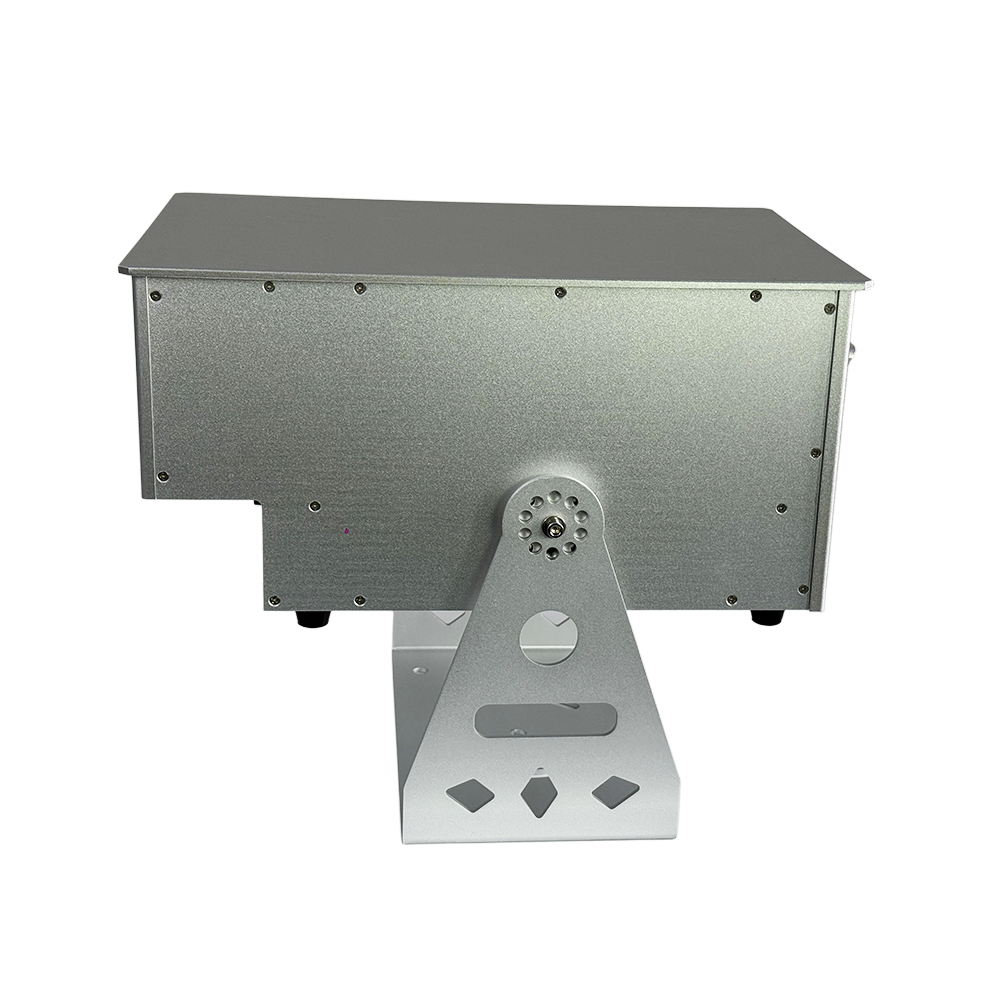

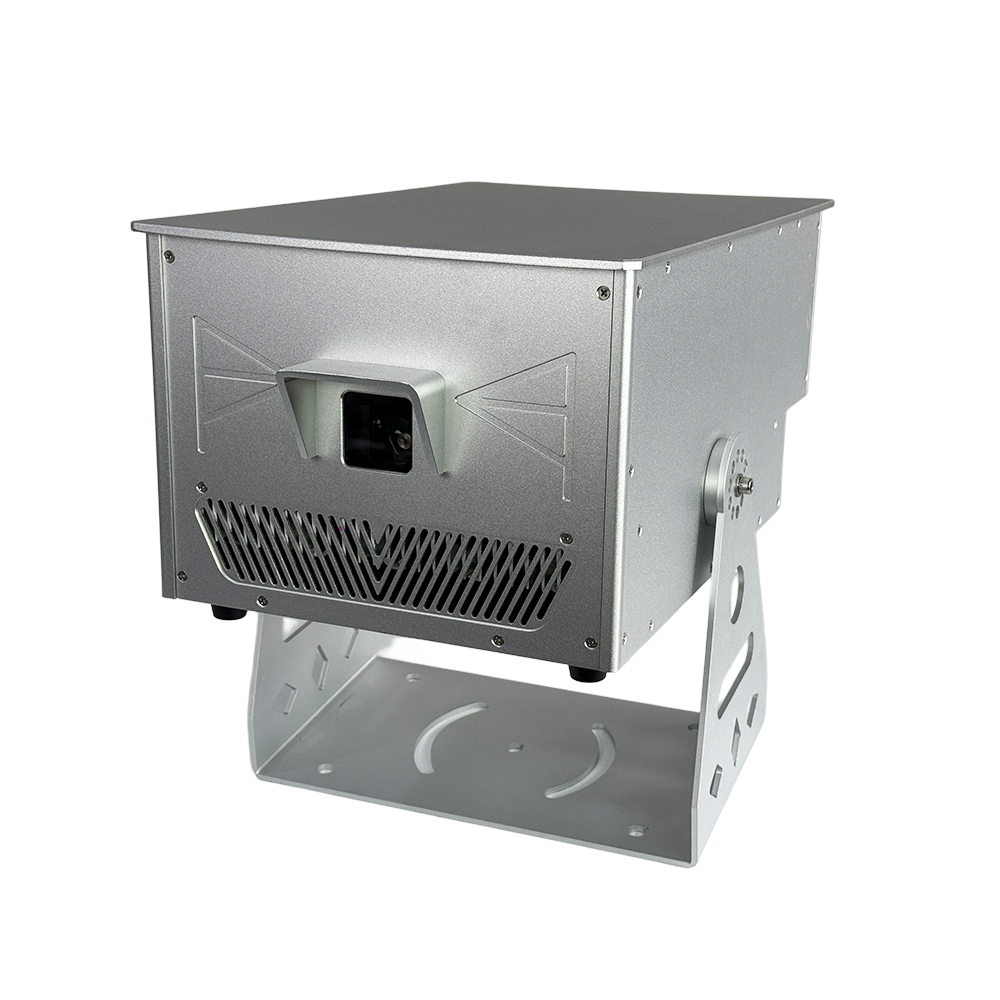

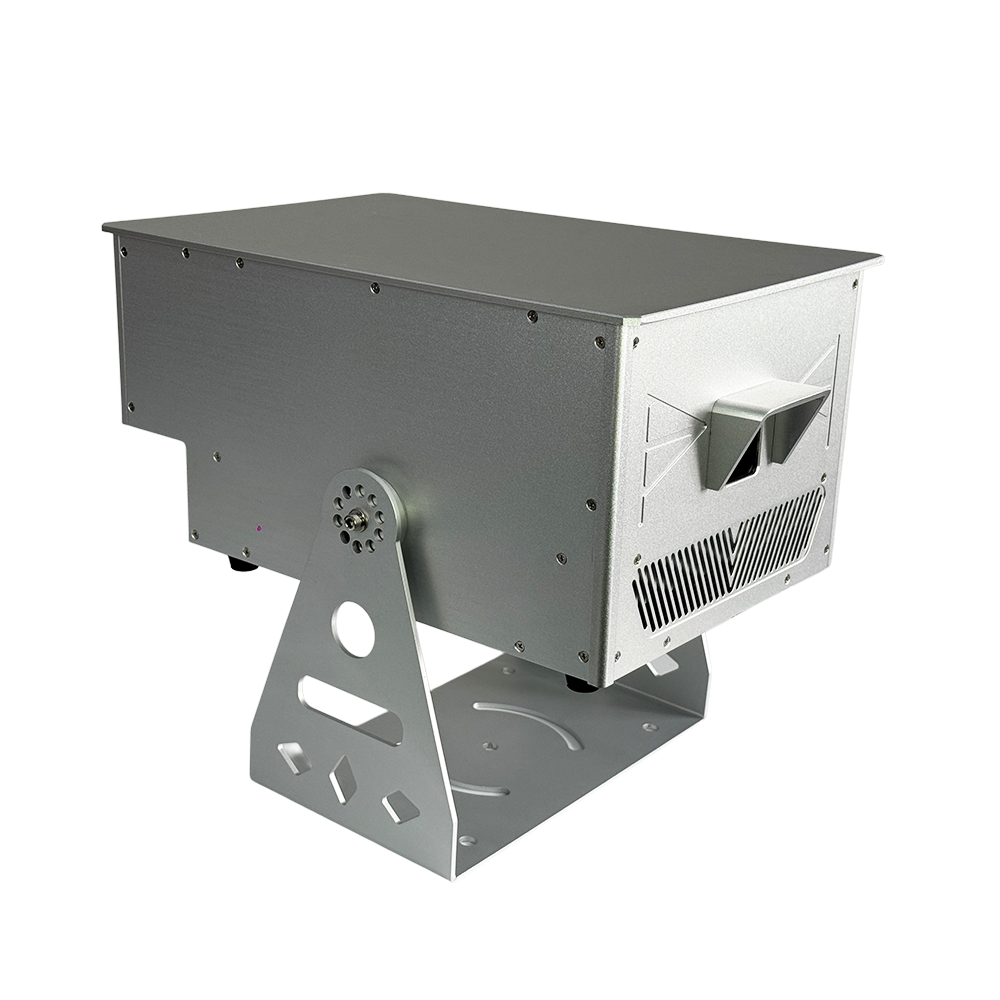

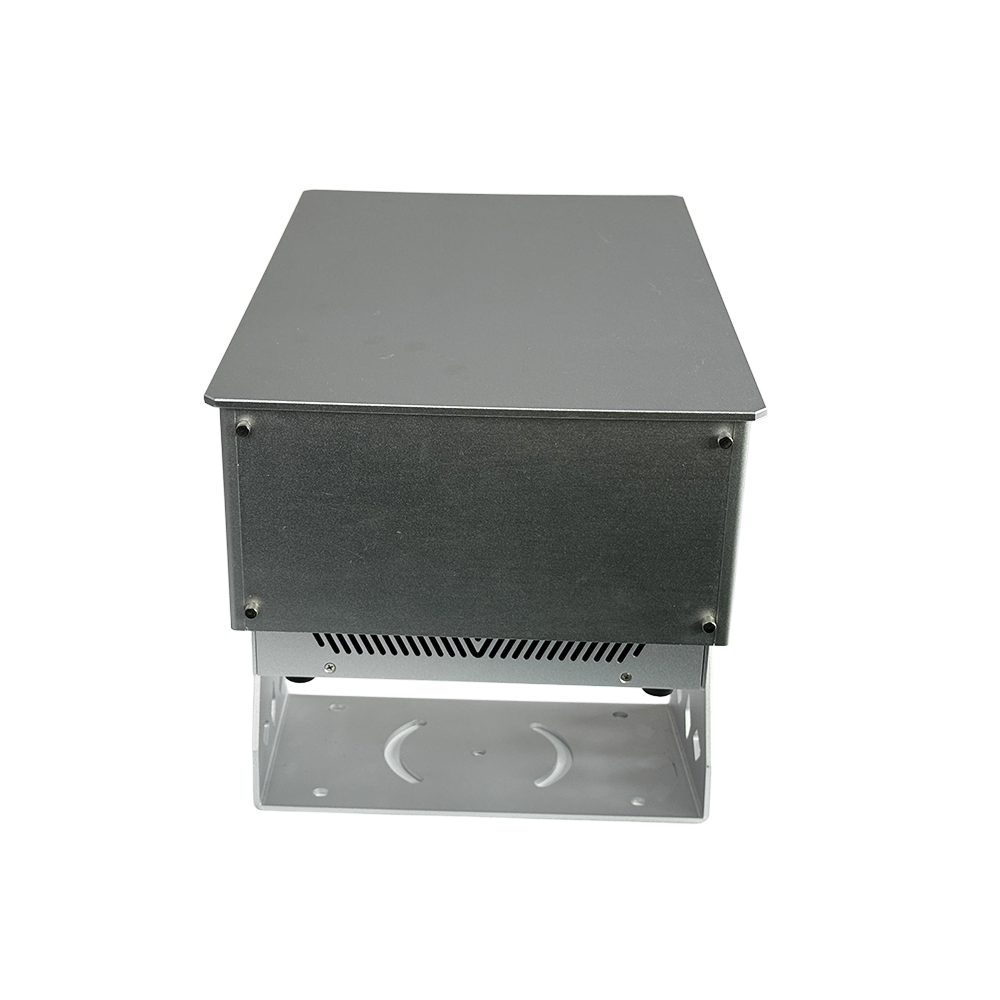

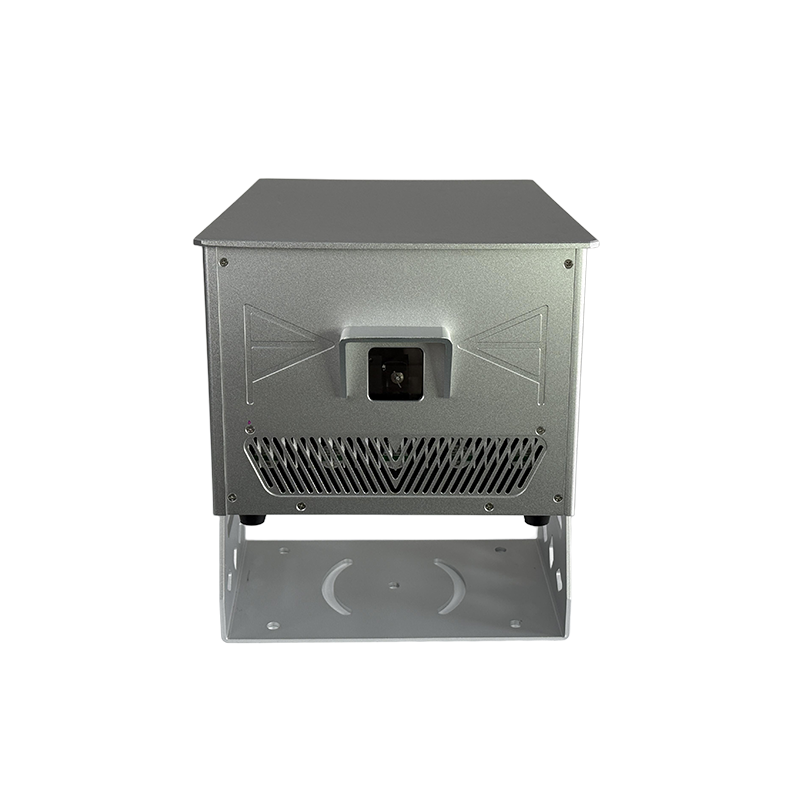

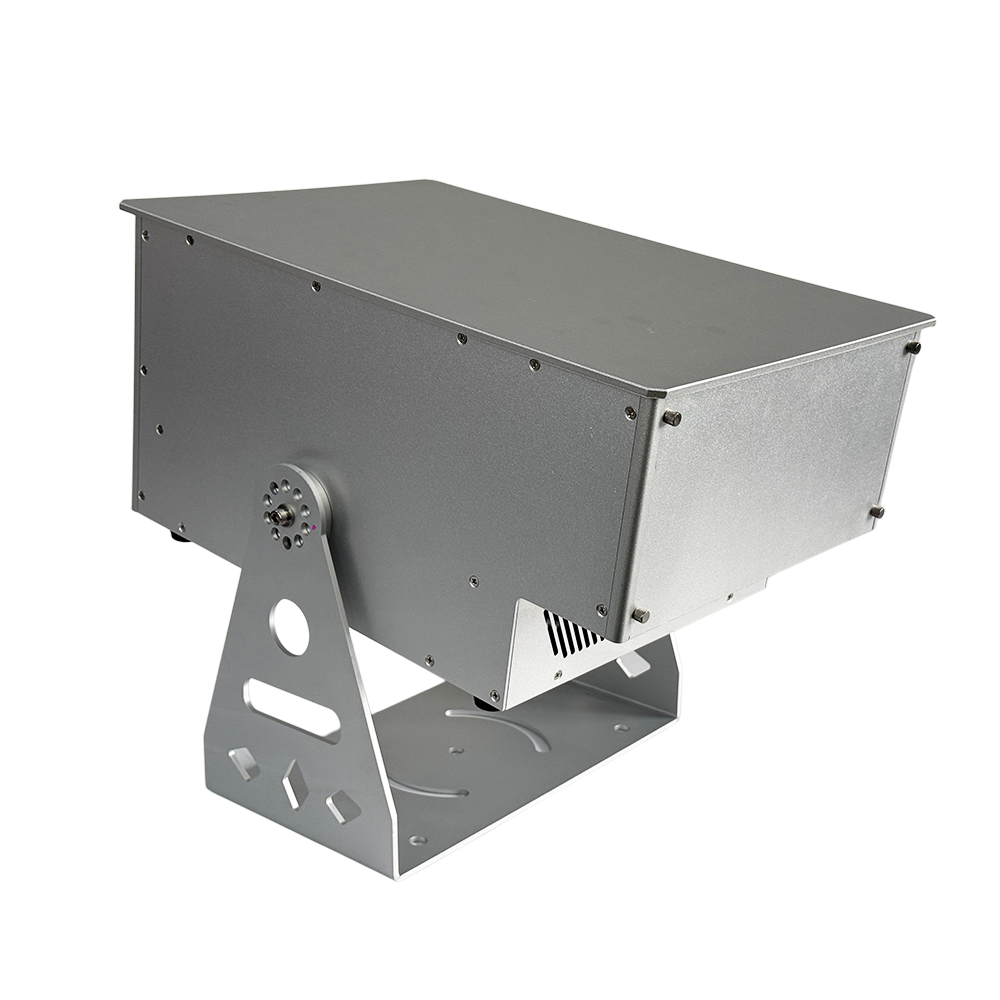

KLP3 Outdoor Waterproof 30W Laser Light IP65

Why Choose the KLP3 Outdoor 30W Laser Light?

Key Features & Professional Advantages

1. Ultra-Smooth Visuals: Equipped with a 50KPPS high-speed galvanometer system to ensure continuous, fluid motion and crystal-clear image projection without flicker or stuttering.

2. Comprehensive Control Suite: Offers unmatched flexibility with multiple control options, including Mobile APP (Bluetooth control), DMX512, ILDA standard PC software, and built-in Auto-Run, Sound-Active, and Master/Slave modes.

3. Advanced Thermal Management: Features a dual cooling system for reliability. The laser unit utilizes TEC cooling (Thermoelectric Cooling) complemented by a powerful forced-air fan cooling the entire unit, ensuring stability and long-term performance.

4. Intelligent Safety Assurance: Built with intelligent protection features, including a signal-off function (switchable DMX and PC signals). Crucially, the beam protection function automatically triggers a full shutdown if the galvanometer fails and only a single, stationary beam is detected, guaranteeing audience safety.

Specification

Input power supply: AC90-240,50-60HZ
Rated power: 500W
Laser power: RGB30W
Laser wavelength: Red light 638nm, green light 525nm, blue light 450nm
Galvanometer scanning system: 50KPPS high-speed galvanometer
Scanning angle of galvanometer: ± 30 °
Control mode: mobile APP control/voice control/Auto-run/master-slave/DMX512/compatible with ILDA standard computer laser software

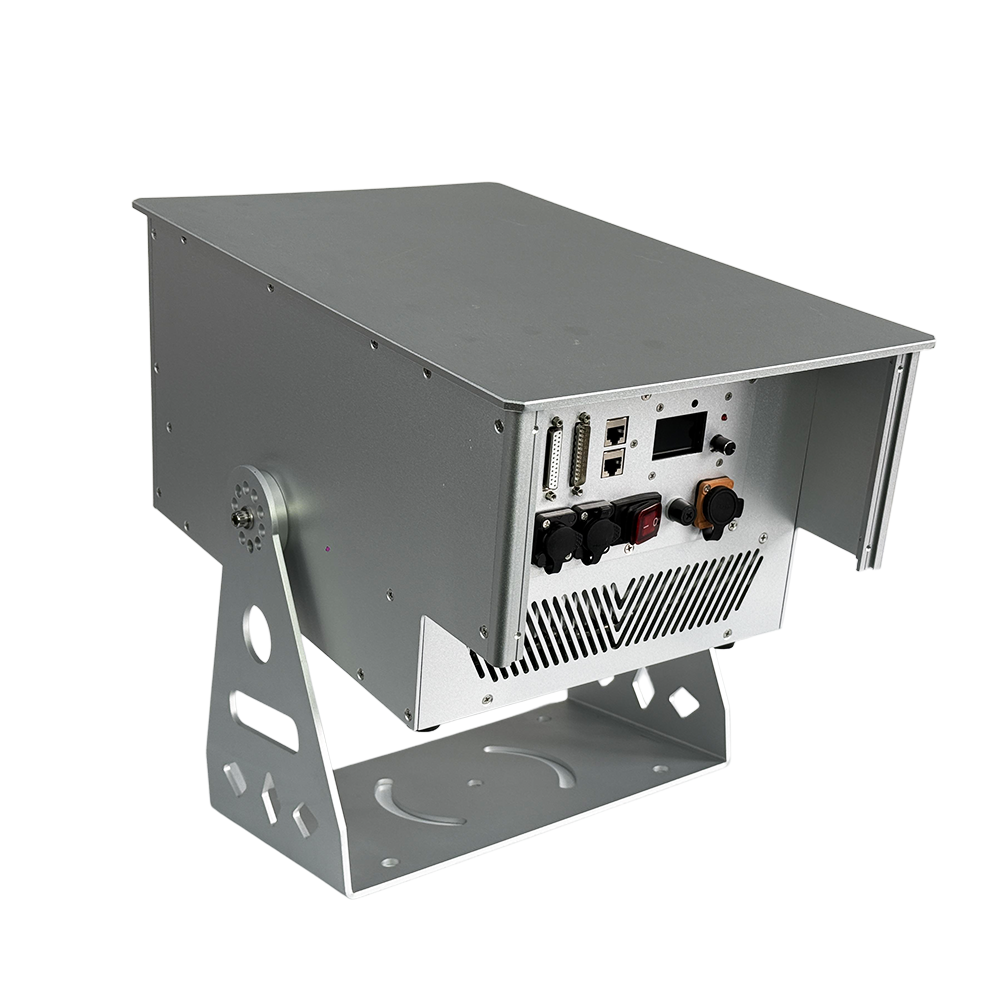

Control interface: International ILDA DB25 interface and RJ45 Ethernet interface, can connect to general laser software such as Pangolin from the United States, international general DMX512 interface
DMX special effects: functions such as pen breakage, flicker, rotation, movement, scrolling, image splitting, gradient drawing, color changing, and resizing
Safe and intelligent: No signal closing, switchable between DMX signal and PC signal. Equipped with a beam of light protection function, if there is a mirror malfunction, only one beam of light will be emitted and it will automatically shut off.
Suitable venues: small and medium-sized performances, bars, and other venues
Working environment: indoor and outdoor (-30 ° C~45 ° C)
Protection level: IP65
Cooling system: The laser is equipped with TC cooling, and the entire machine is forced to cool by the fan
Package size: 65 * 51 * 55CM
Total weight: 47.5KG

How to Control the 30W Laser Light with the Mobile App?

Seamless Setup via Lovely Draw App

1. Download & Connect: Download the proprietary Lovely Draw App to your smartphone. Establish a connection between the App and the laser fixture directly via Bluetooth.

2. Intuitive Programming: The intuitive interface provides access to a comprehensive library of effects, including:

   • Custom Content: Drawing creation, custom text playback, and pattern selection.

   • Advanced Visuals: Personalized programming, blending effects, complex animation, Aurora Borealis (Northern Lights), and time tunnel visuals.

Full operational instructions and detailed tutorials are available within the in-app Help Center.
