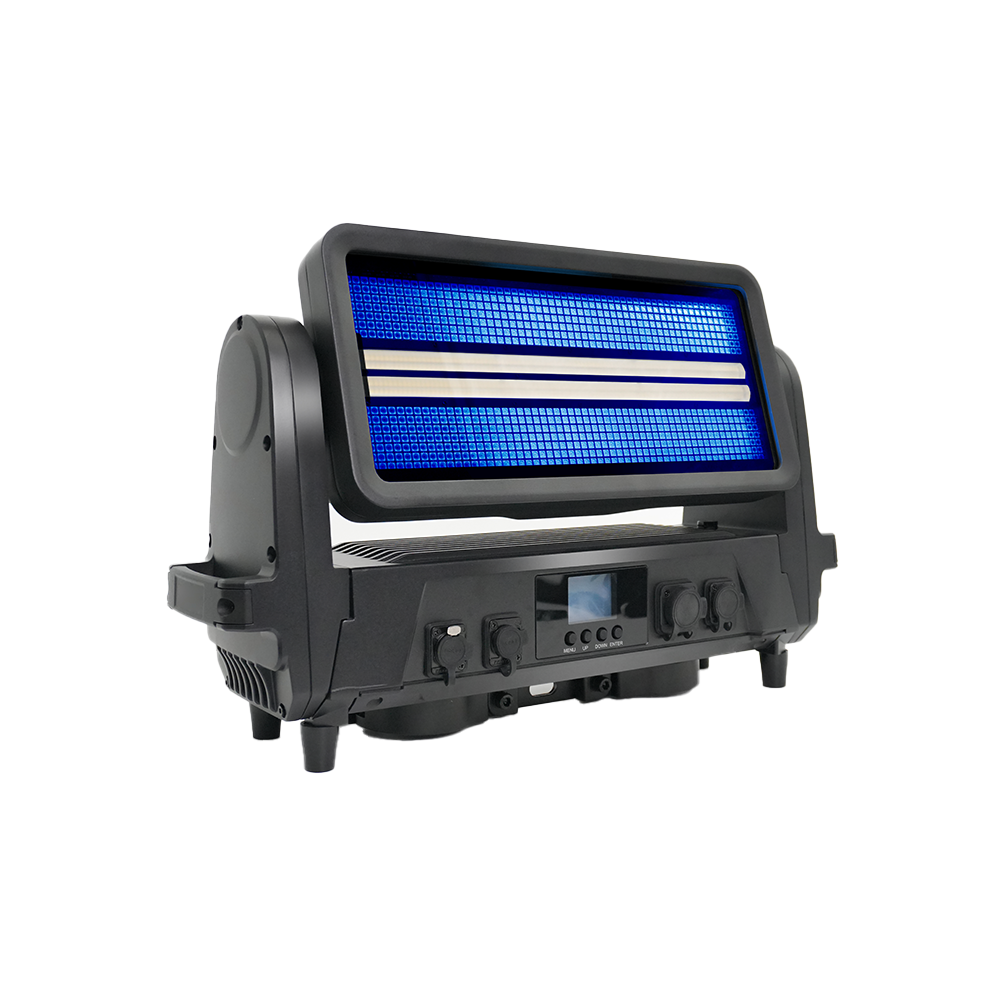

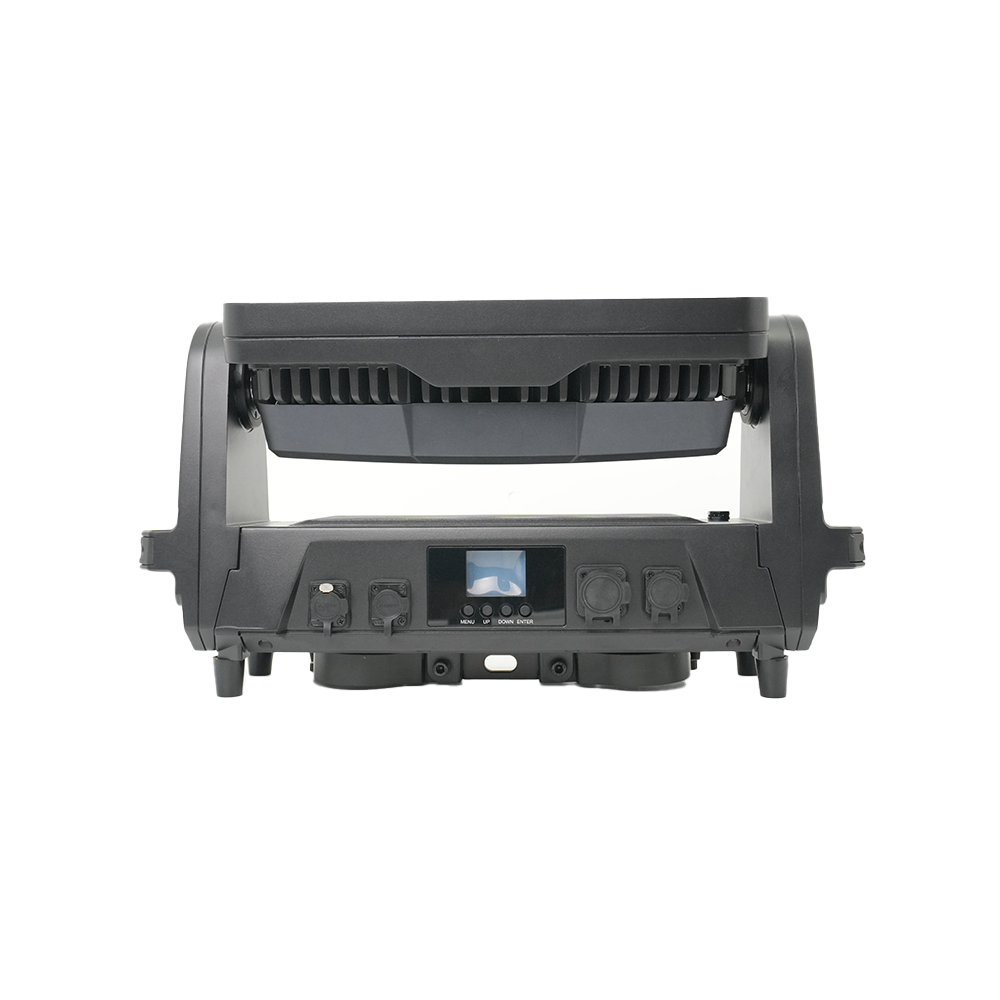

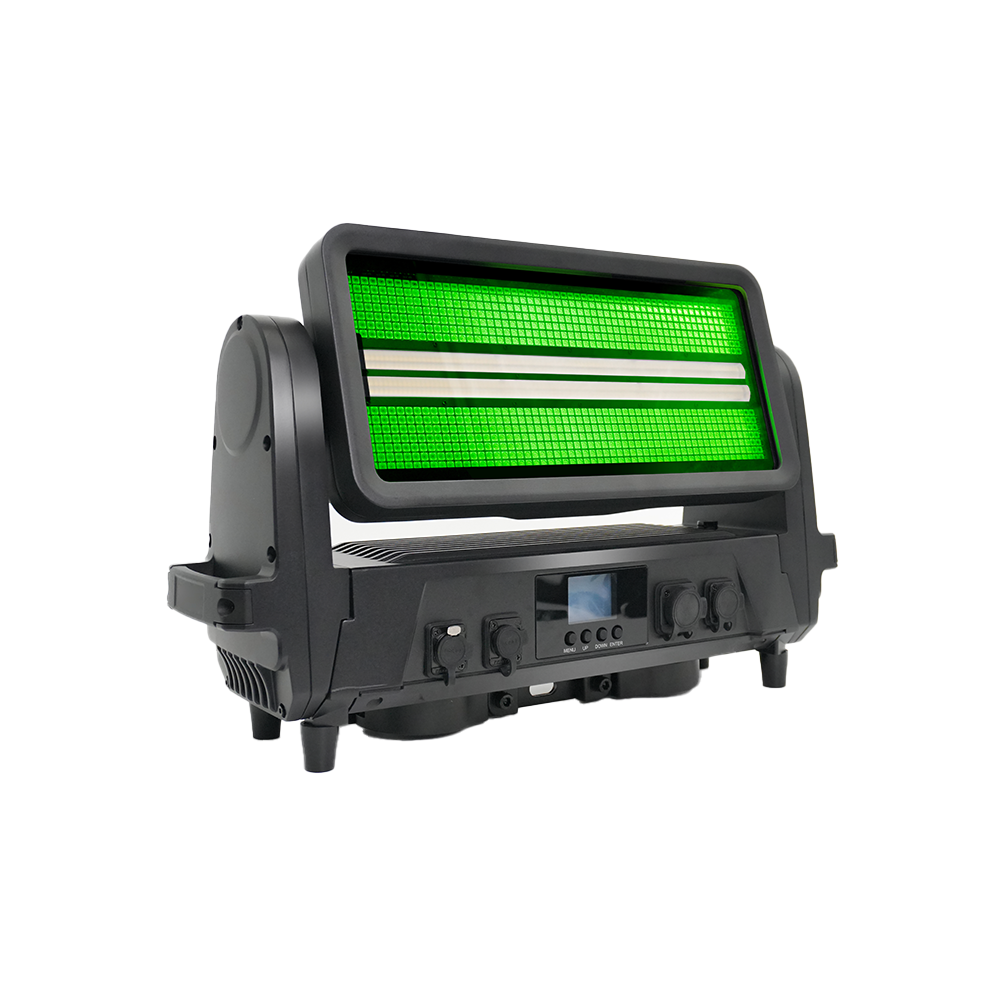

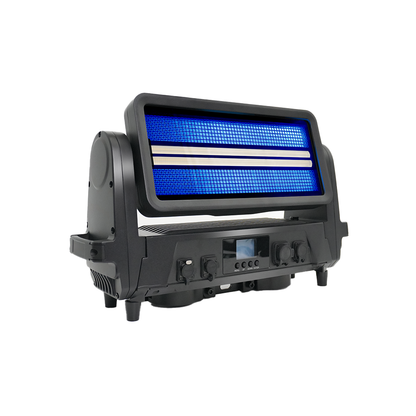

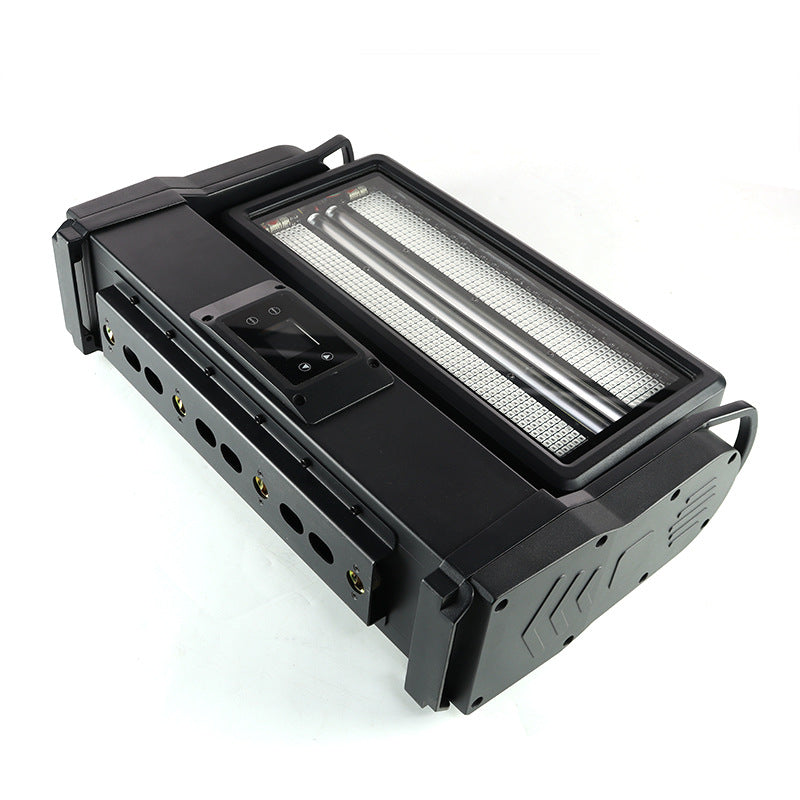

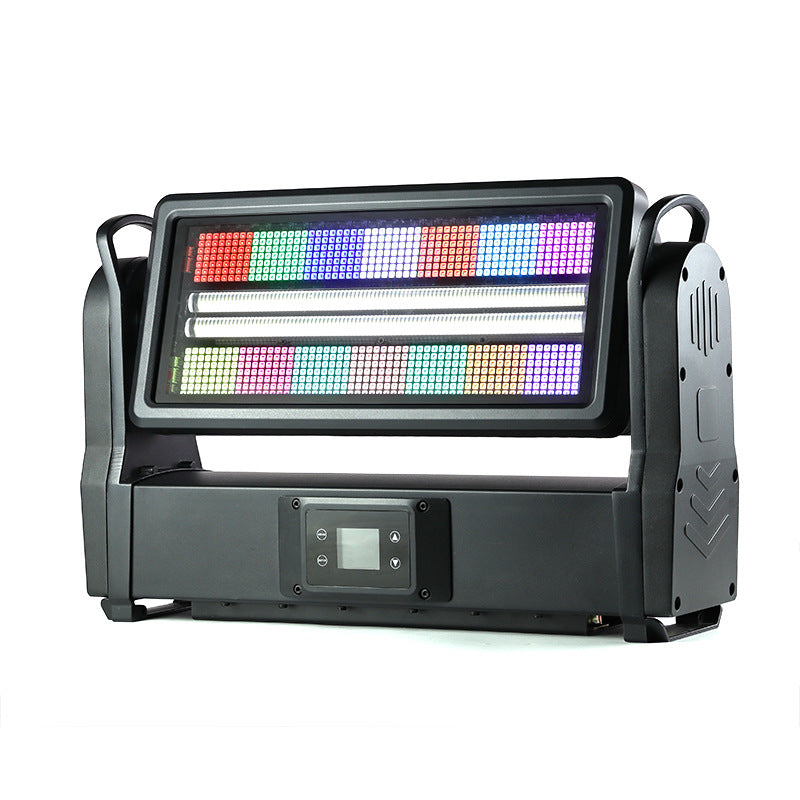

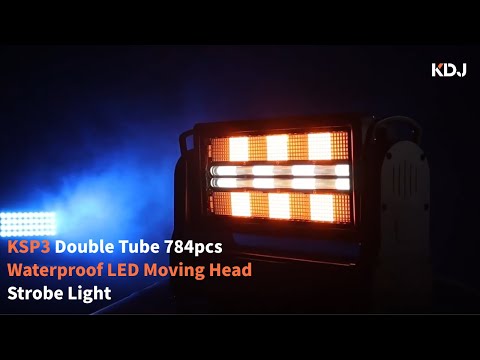

KSP3 Double tube 1200W LED IP65 Waterproof Strobe Light

Light source：1.56W White Light 392 star 2835 Lamp beads ,1W RGB 3 in 1 784 star 5050Lamp bead

Color temperature: 2800K-8000K

Dominant wavelength R：622nm；G：525nm；B：457nm

Light source lifetime： 20000 hours

Beam Angle： 110°

Dynamic effect

stroboscopic： 0～20Hz

Four dimming curves，0 ~ 100% dimming

Electronic parameter

Input voltage and frequency 100～240VAC,50～60Hz

Power Fully bright 700W，stroboscopic 1200W

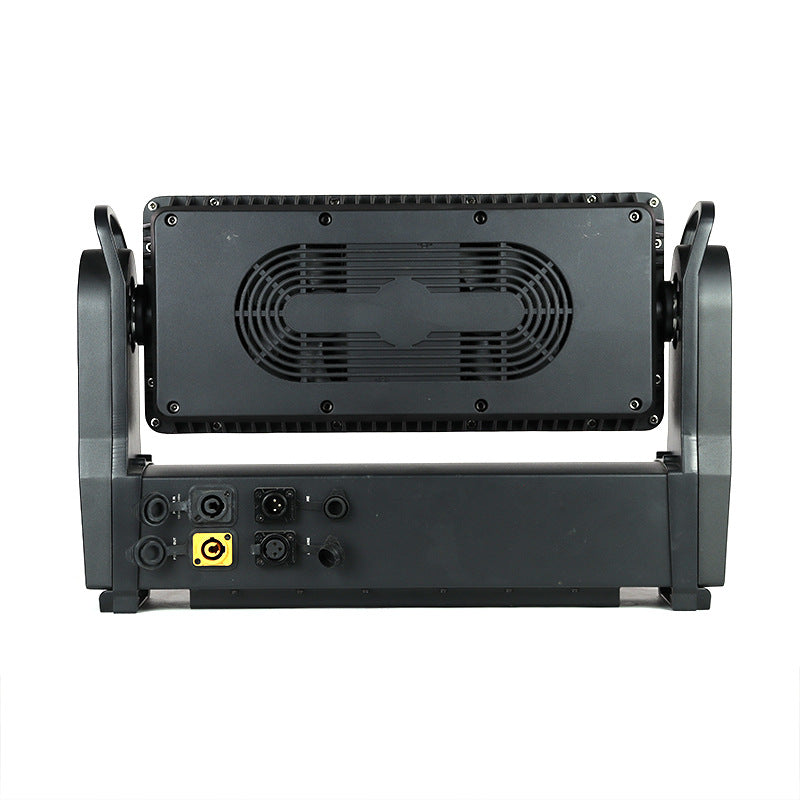

Waterproof POWERCORN Input, output

Signal connection Waterproof 3-core DMX signal line input/output, the maximum number of connections 32 units; Waterproof network signal input and output

Working environment -10°～45°

Switching power supply 100～240VAC, 50～60Hz,28V 800W

Structural parameter

Dimension Product size：540×338×152mm

Net weight: 12.0Kg(without hook and hook quick lock)

Class of protection IP65

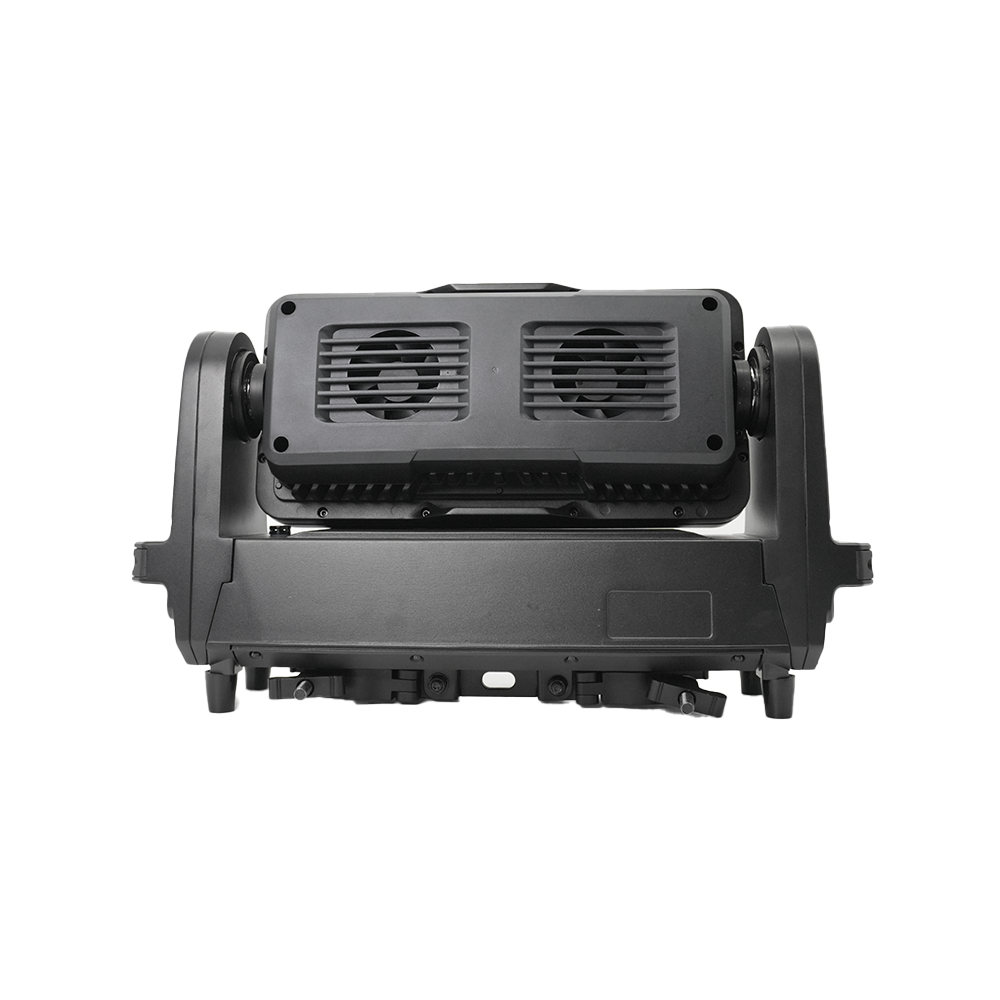

Cooling system Waterproof, low noise fan, forced heat dissipation

shell Die casting magnesium aluminum alloy; black

Installation mode: Side hanging, hanging installation

Controls

Control mode DMX512/RDM

DMX passage 8/11/13/24/30/74/97CH

reveal TFT

Refresh rate 600Hz/1200 Hz/2000 Hz/4000 Hz/6000 Hz/25KHz

Pixel matrix White light 2*14, color light 2*7
