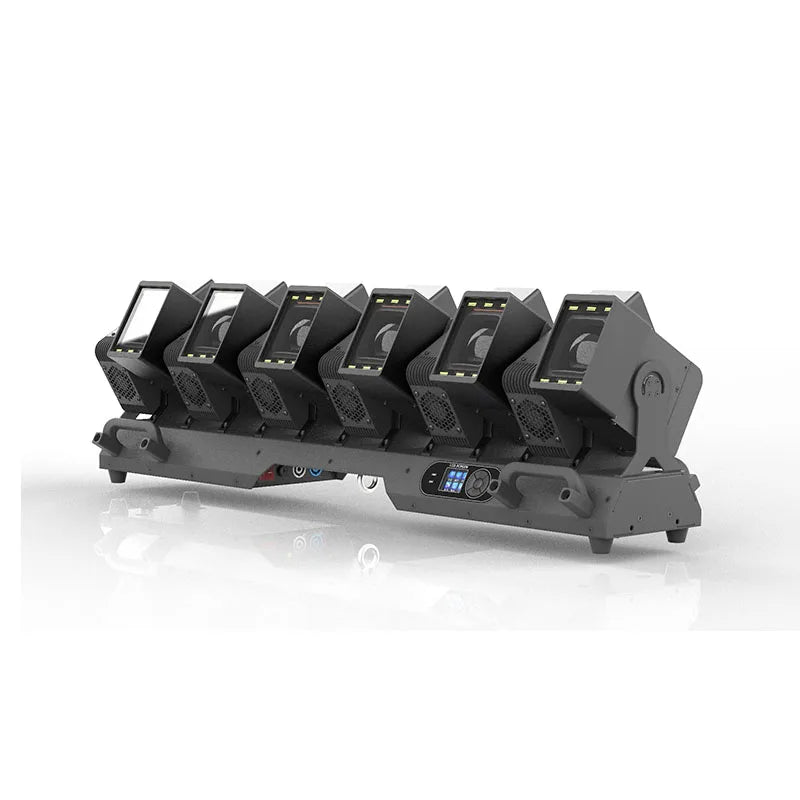

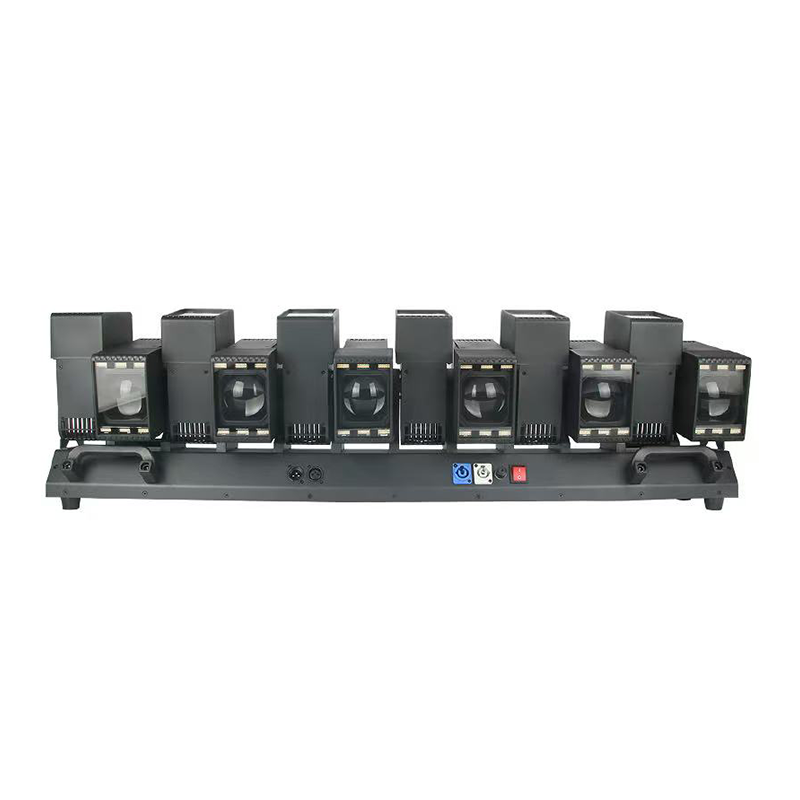

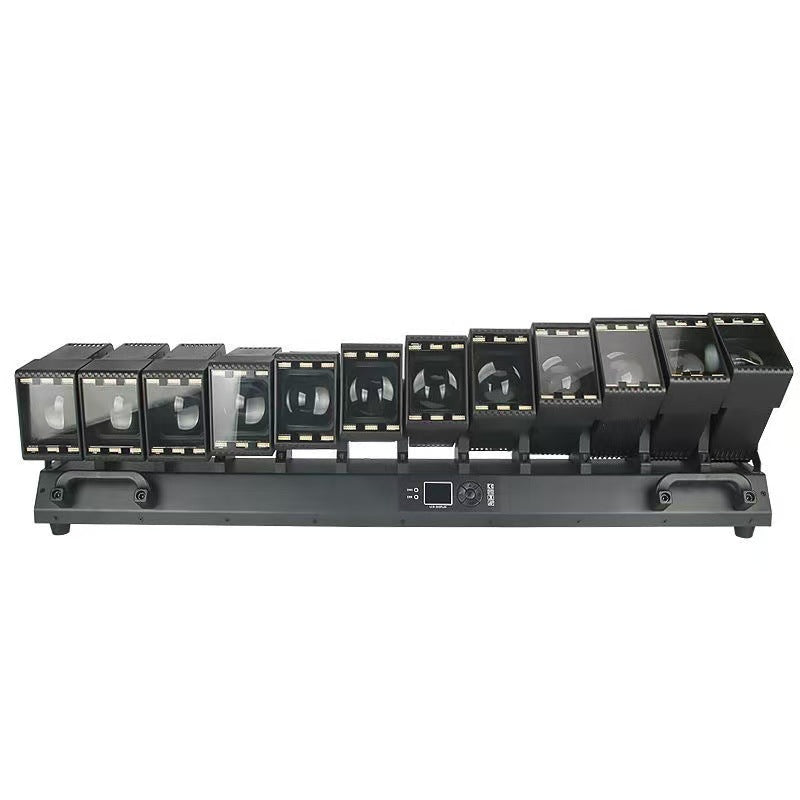

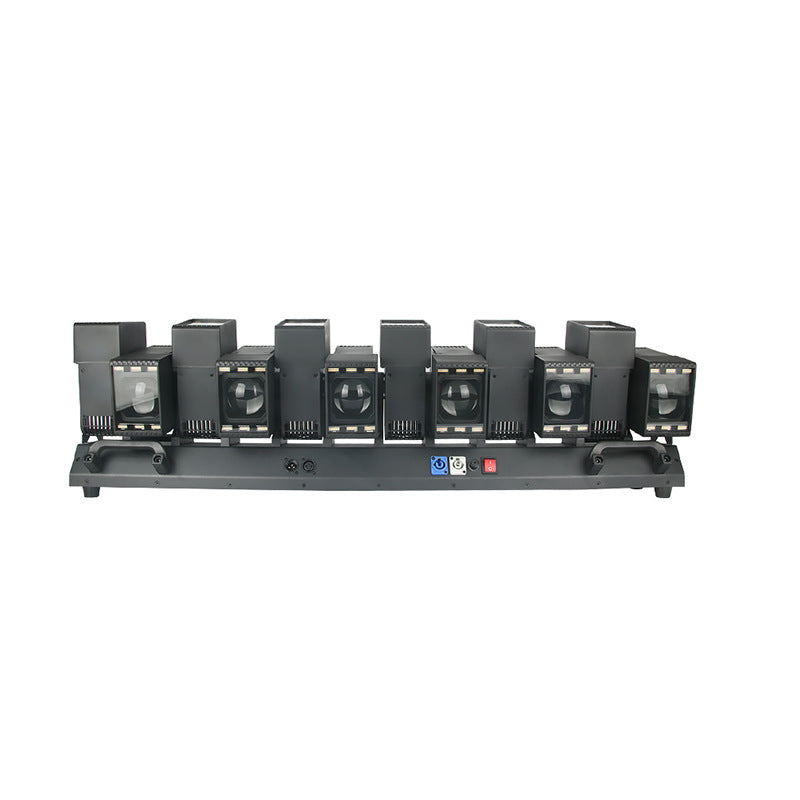

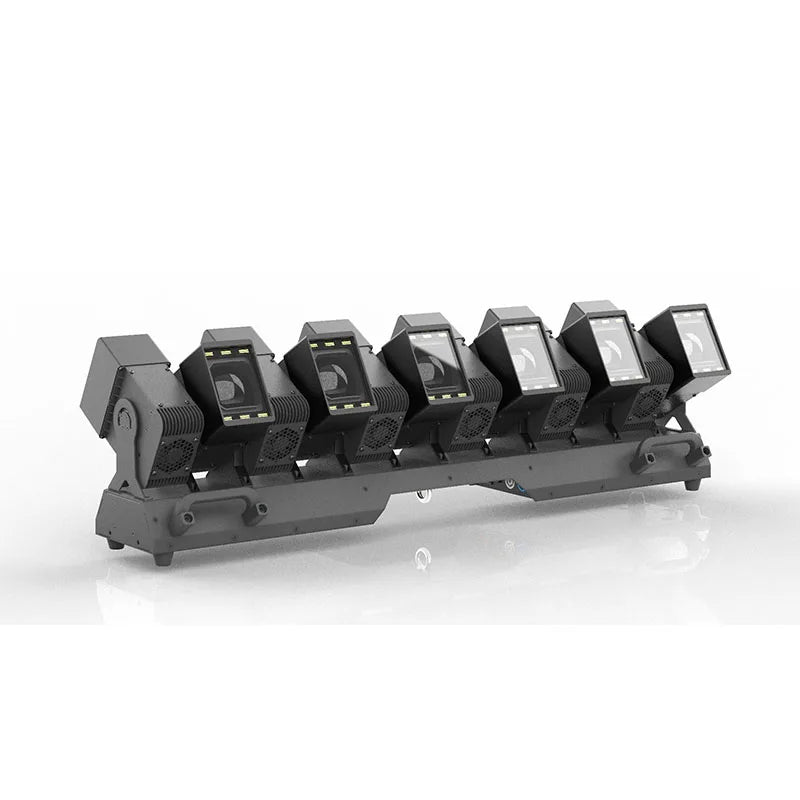

KW5A 12x60w Zoom Pixel Beam Bar With Auxiliary Light

KW5A 12x60W Zoom Pixel Beam Bar with Auxiliary Light – The Ultimate All-in-One Stage Lighting Solution

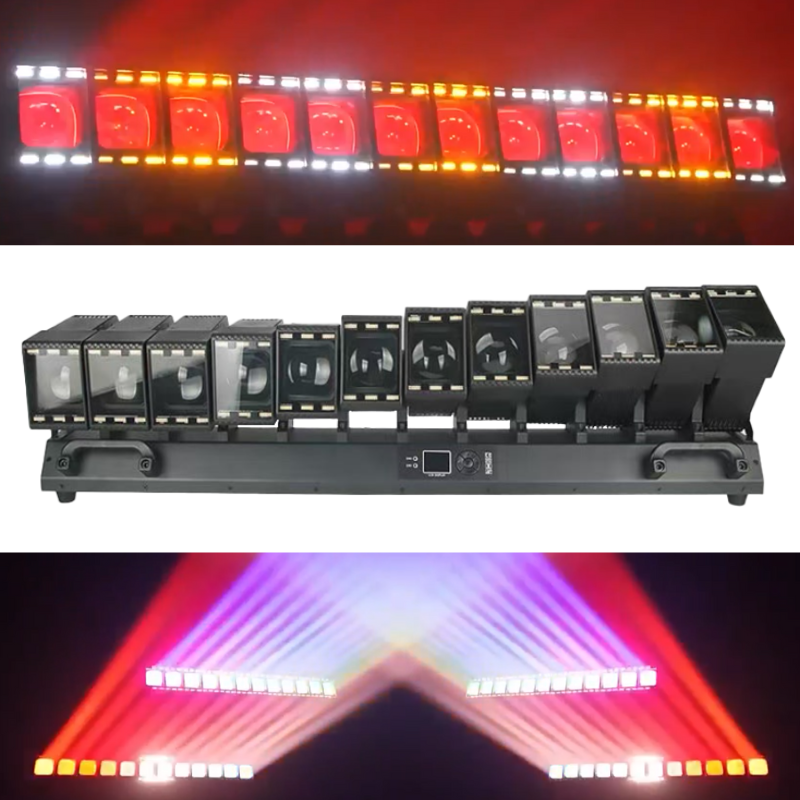

Stop switching between fixtures! The KW5A 12x60W Zoom Pixel Beam Bar revolutionizes stage lighting by seamlessly integrating a powerful Auxiliary Light system directly with intense beams and vibrant washes. This is the key advantage: while the 12x60W pixel engines project razor-sharp beams and pixel effects, the 864 auxiliary LEDs (432 warm white + 432 cool white) simultaneously bathe the venue in a rich, uniform base wash.

This eliminates dark spots and creates a multi-dimensional visual experience right out of one fixture. You can now layer effects effortlessly – run dramatic beam patterns over a solid, colorful wash for unparalleled depth and impact. It’s like having a beam light, a wash light, and an effects panel in a single, powerful unit, saving you setup time, budget, and stage space.

Gain complete creative freedom with DMX512, Voice Control, and multiple channel modes. The robust metal housing ensures reliability for any event. Choose the KW5A Beam Bar – where brilliant beams and foundational wash light unite to create the ultimate lighting performance.

Specification

 Voltage: AC100-240V 50/60Hz
Power: 12*60W (800W)
Lamps: 12* 4-in-1 60W LEDs, 432*2015 gold LEDs, 432*2015 cool white LEDs
Control: DMX512, auto, master-slave, voice control, with RDM function
Channels: CH29, CH62, CH170, CH254, CH308, CH332
Dimming: 32-bit 0-100% linear dimming
Features: Single-LED oscillator + wash light + beam
Operating temperature: -30°C to 50°C
Strobe frequency: 1-30Hz
Appearance: Metal, black
Connection: DMX512 input/output / power input/output
 IP Rating: IP20

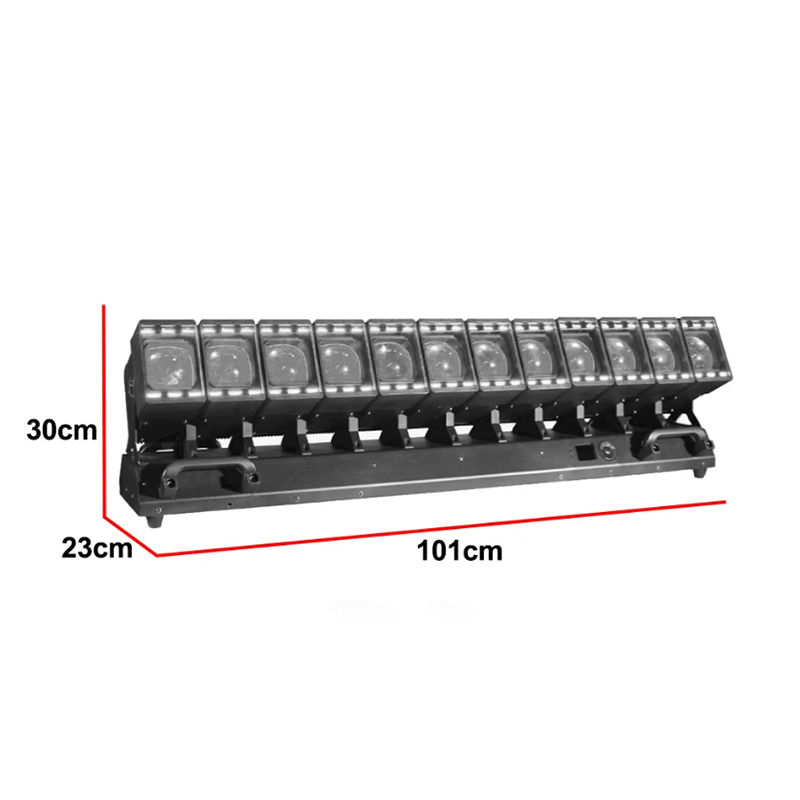

Product Dimensions: Length 100.7cm x Width 23.1cm x Height 30cm
Product Weight: 26.5kg
Packaging Dimensions: Length 109cm x Width 38cm x Height 25cm
Packaging Weight:
Two Flight Cases: 117*53*44cm, 81.5kg
