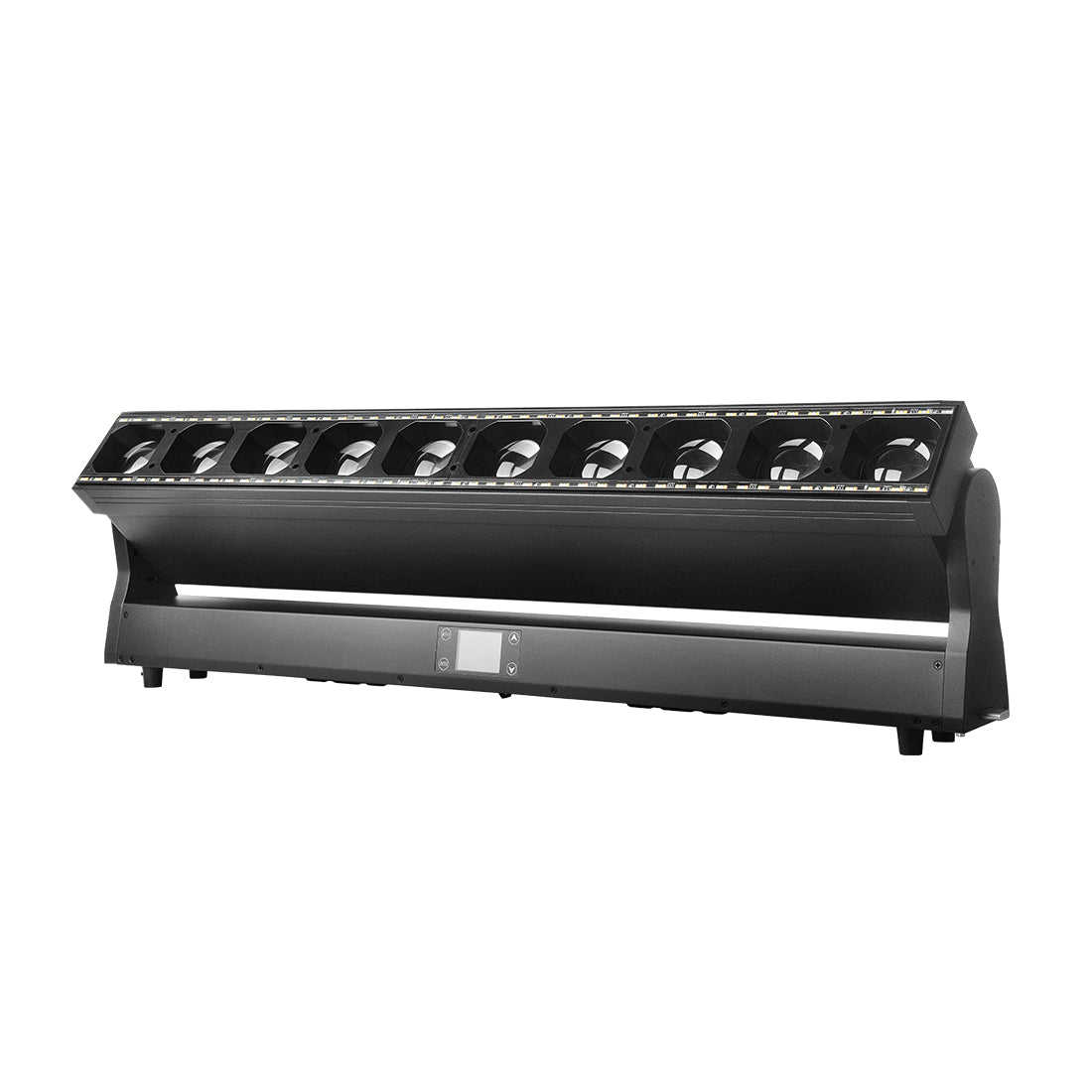

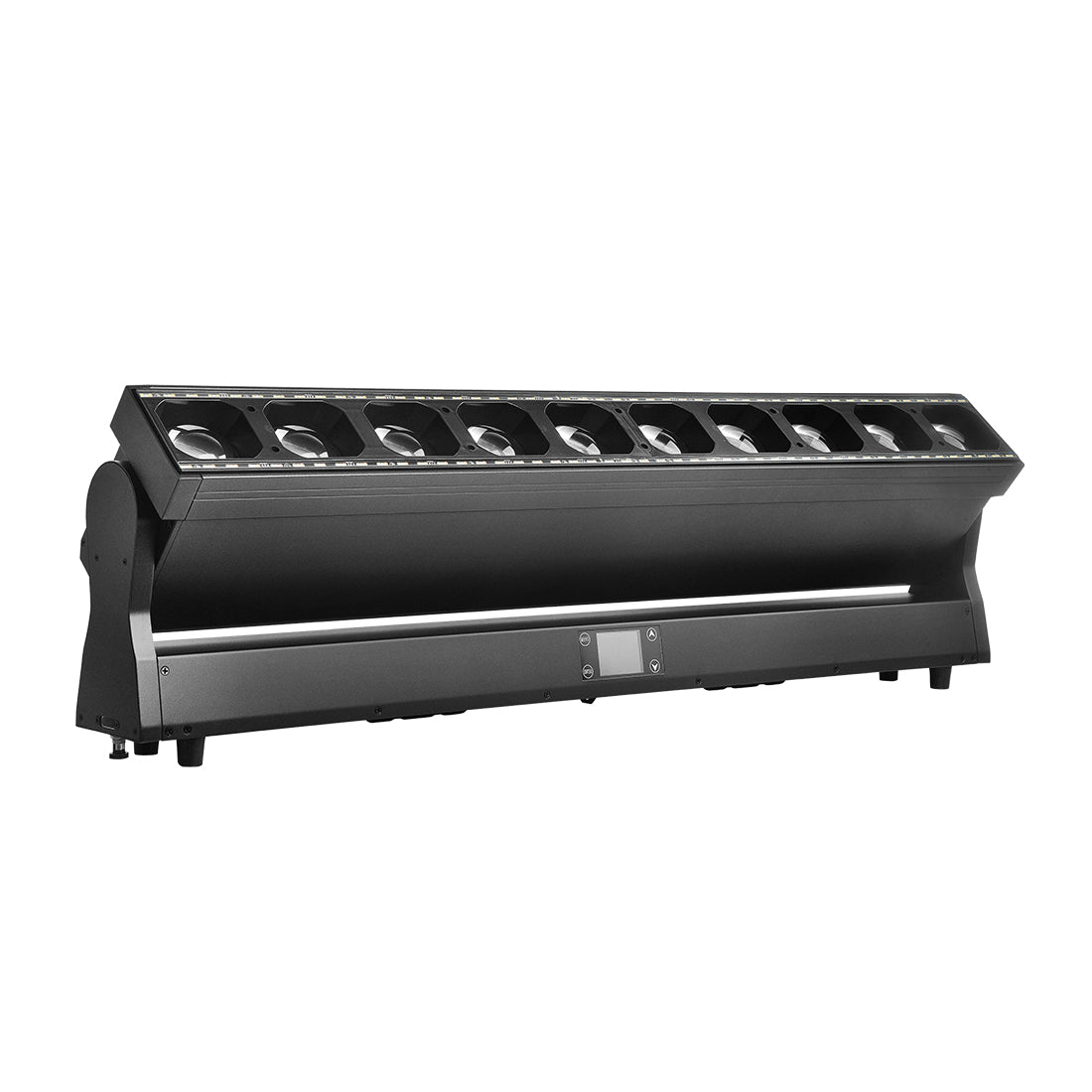

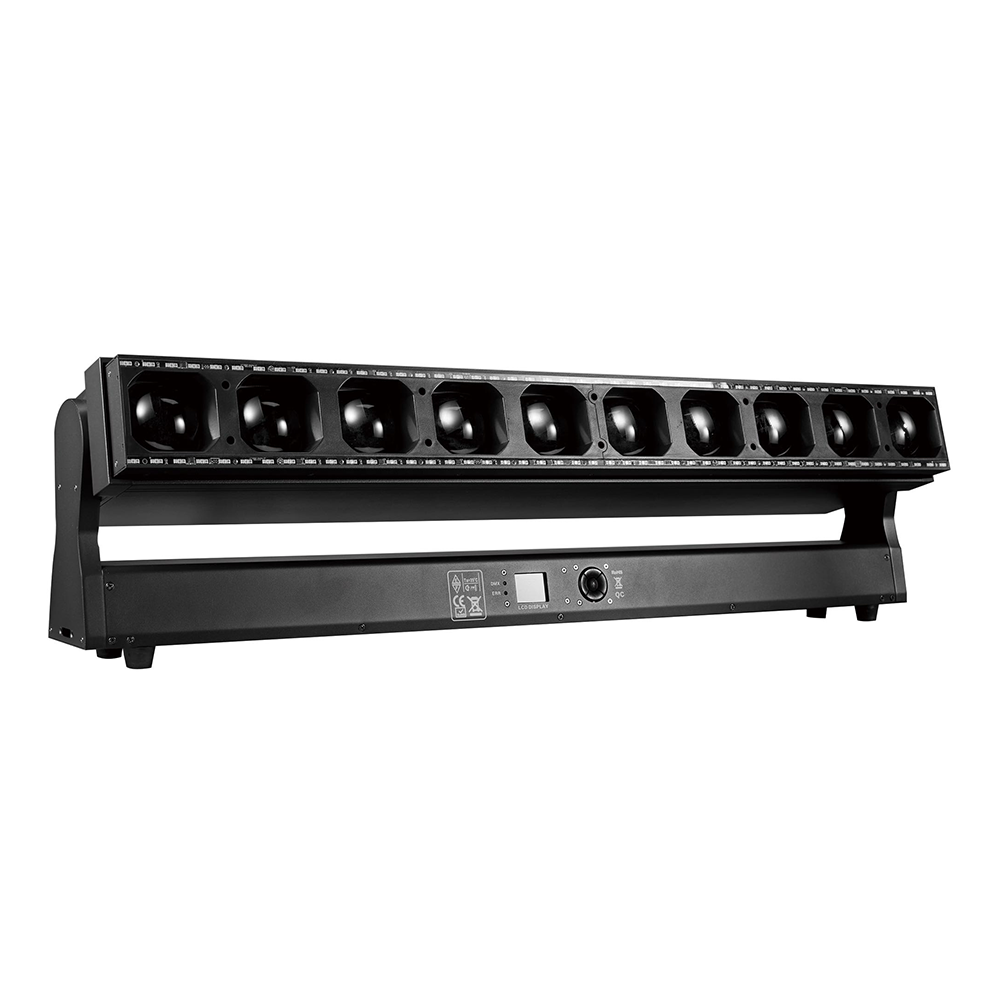

KW7 10x60w Rattlesnake Zoom Pixel Beam Bar Moving Head Light

KW7 Rattlesnake: High-Power Zoom Pixel Beam Bar Moving Head Light

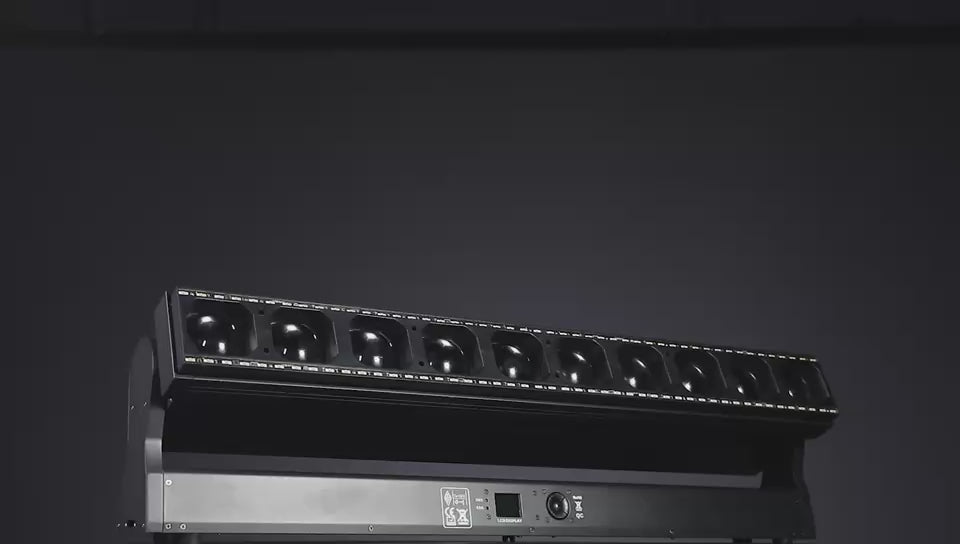

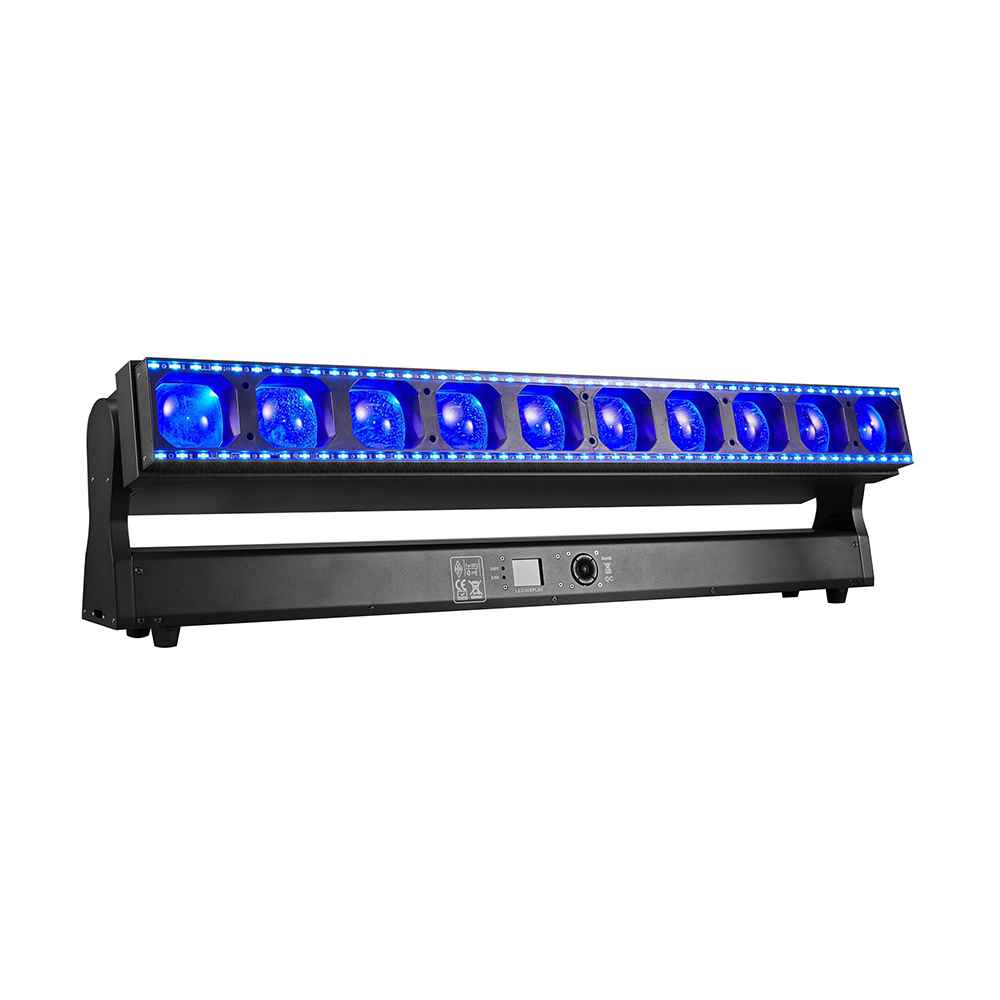

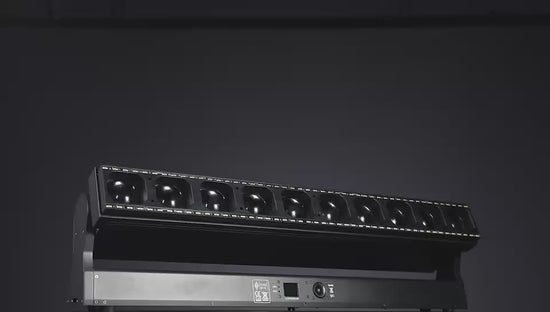

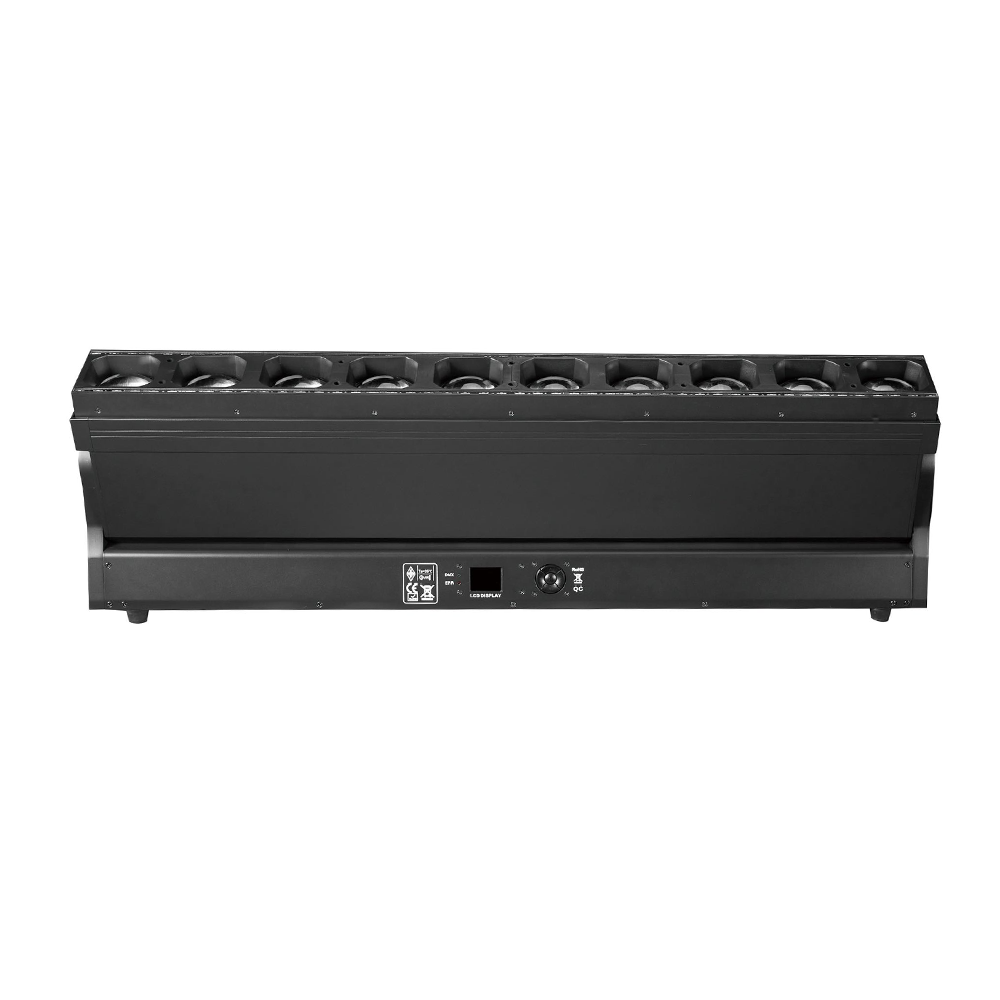

The KW7 Rattlesnake is a professional-grade Zoom Pixel Beam Bar Moving Head Light engineered for high-impact stage productions. Driven by a massive 800W power supply, it features ten 60W RGBW LEDs complemented by an intensive strobe array of 192 CW/WW LEDs and 96 RGB LEDs. This powerhouse delivers an impressive 22,400 lumens and a crisp 6,300K color temperature, ensuring blinding intensity and vivid color mixing.

Its precision optical system offers a versatile zoom range from a piercing 2.8° beam to a wide 46°spot, providing total control over atmosphere and texture. Designed for complex pixel mapping, the KW7 supports up to 170 DMX channels and RDM protocol. With a 202° Y-axis tilt and professional RJ45/XLR connectivity, this Zoom Pixel Beam Bar Moving Head Light is the ultimate tool for lighting designers seeking fluid movement and unmatched visual depth in large-scale venues.

Specification

Light source:
Beam end:10 x 60W RGBW LED
Strobe terminal:
96 x 3W CW LED
96 x 3W WW LED
96 x 0.5W RGB LED
White light color temperature: 6,300K
Light lux: 22,400 lm
LED life expectancy: 20,000 hours
Optical system
Beam angle: 2.8°-31° (beam end)
Spot angle: 5°-46° (beam end)
Control and procedures: 5 keys

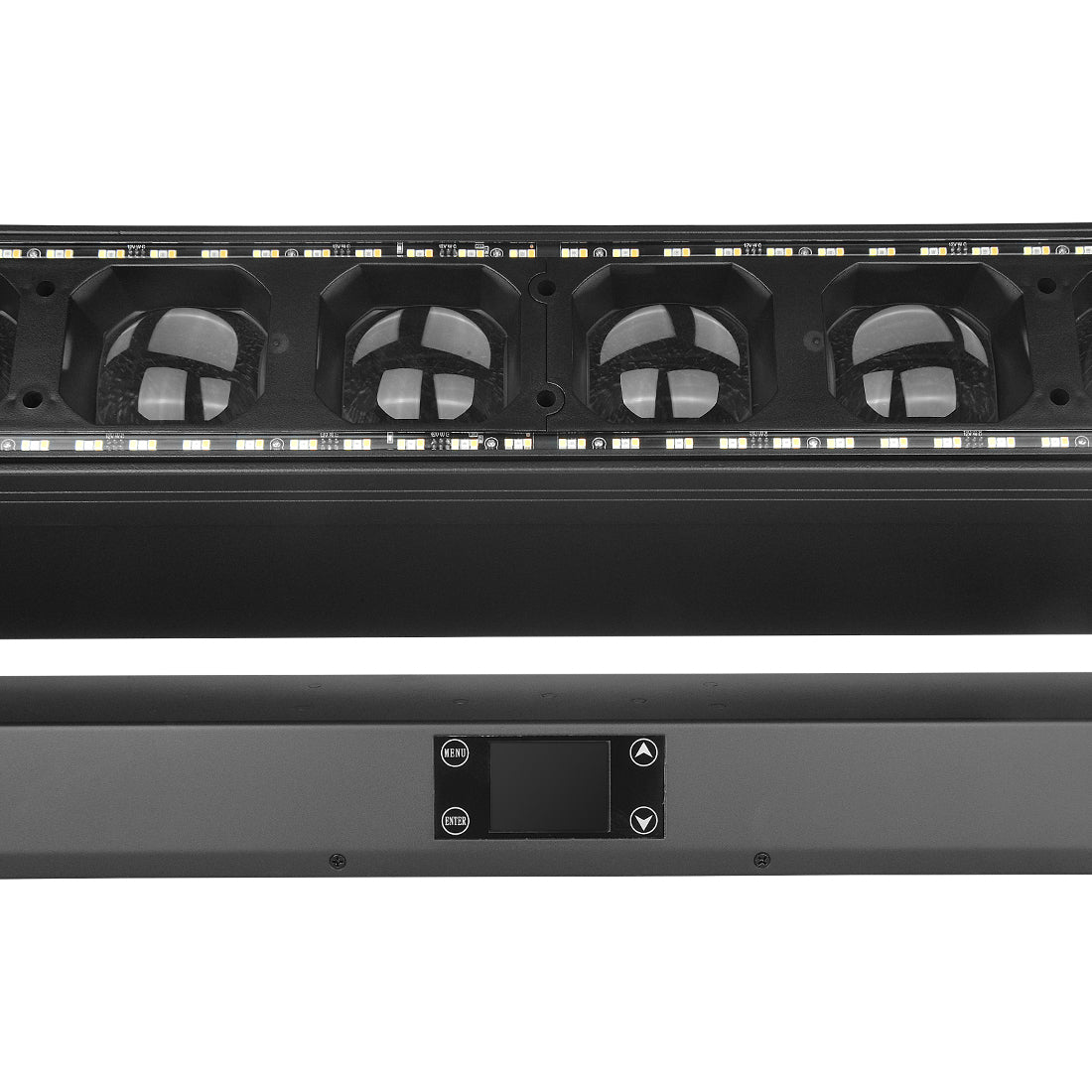

Control panel: LCD display
Control protocol: DMX512, RDM
DMX channel mode: 7 types
Channel mode: 17/27/99/108/168/8+100/8+160/170 channel
Software upgrade: update the software through the DMX connection
Y-axis operation angle: 202°
Electrical and interface
Input power supply: 180-240V~ 50/60Hz
Power: 800 W
Power outlet: power connector input/output

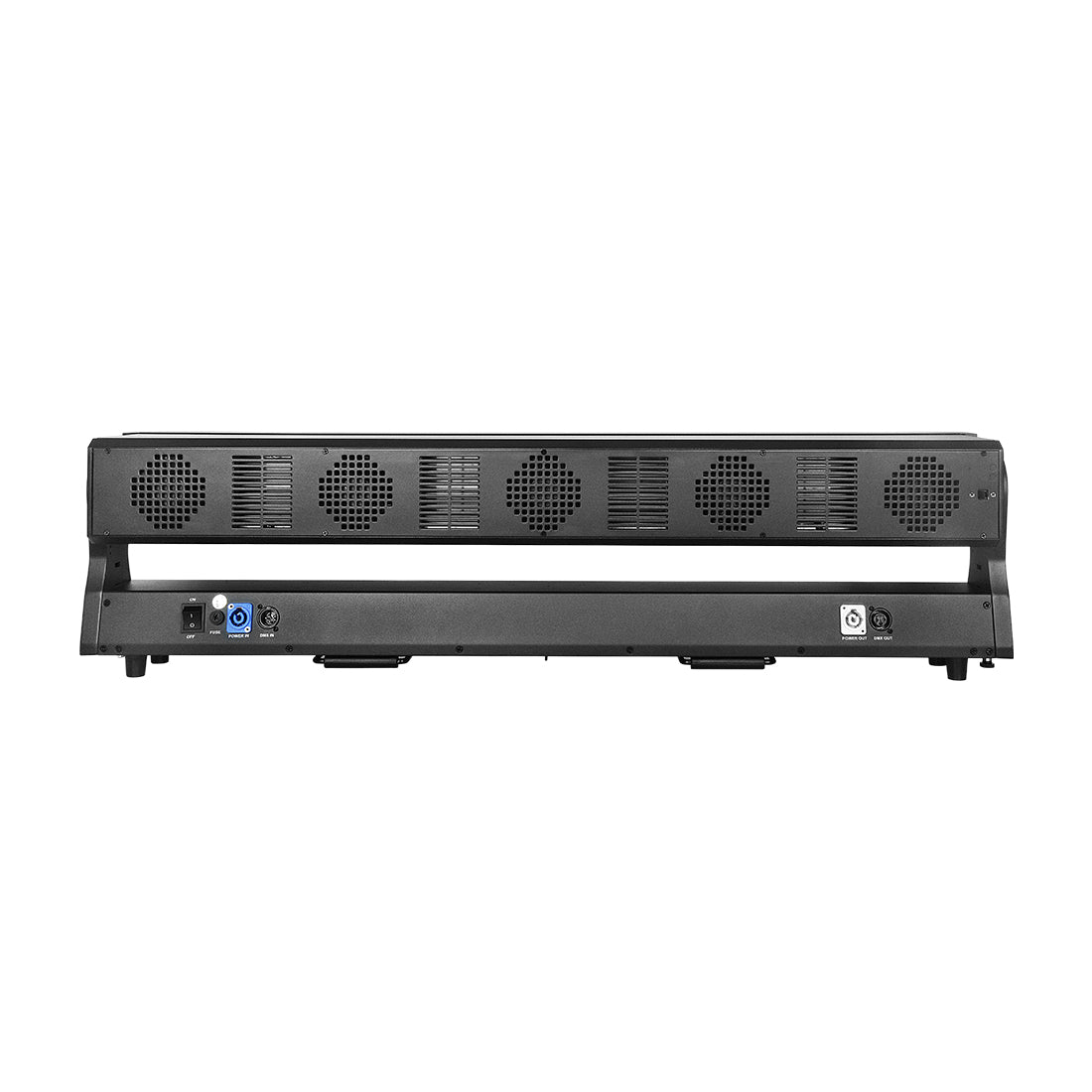

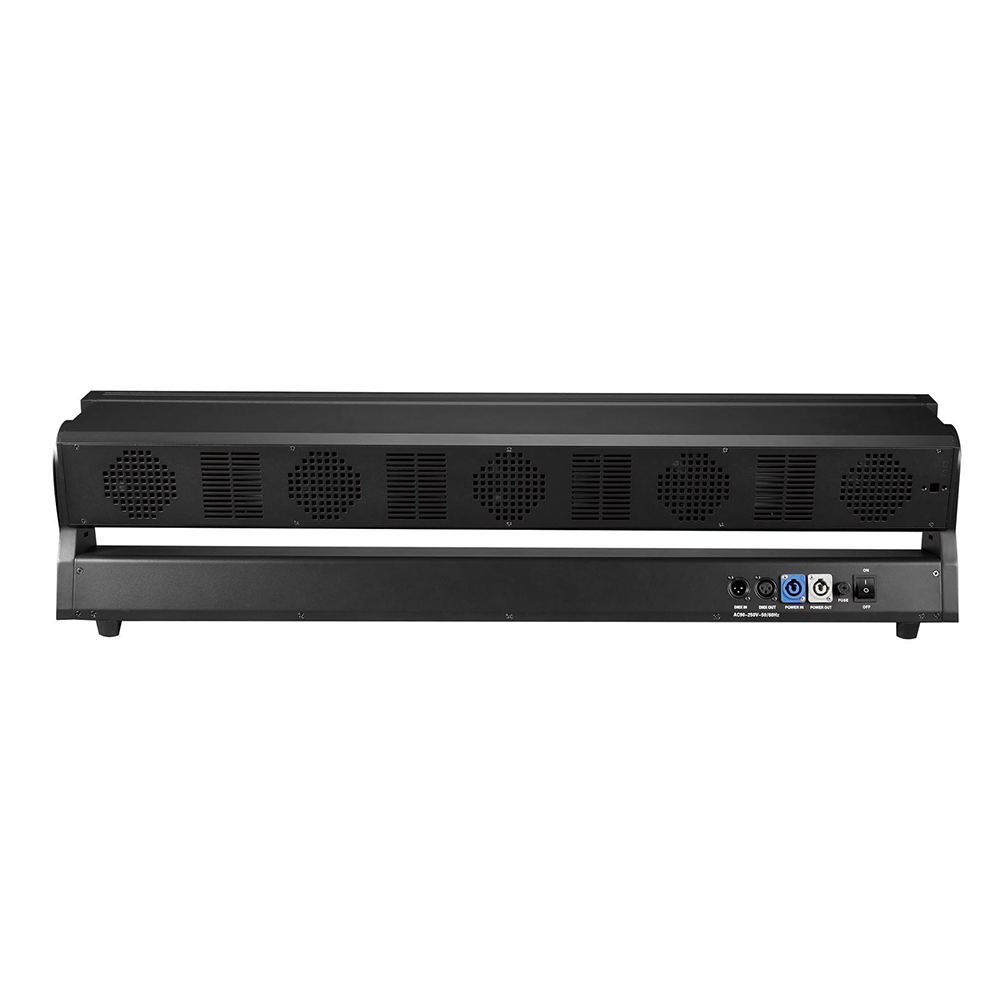

Signal input/output: three-core or five-core cannon head socket, RJ45

Product Dimensions, Weight
1. Product Dimensions: 100*29*12/cm
2. Single Item Packaging: 108*36*18/cm
3. Product Net Weight: 18.1kg

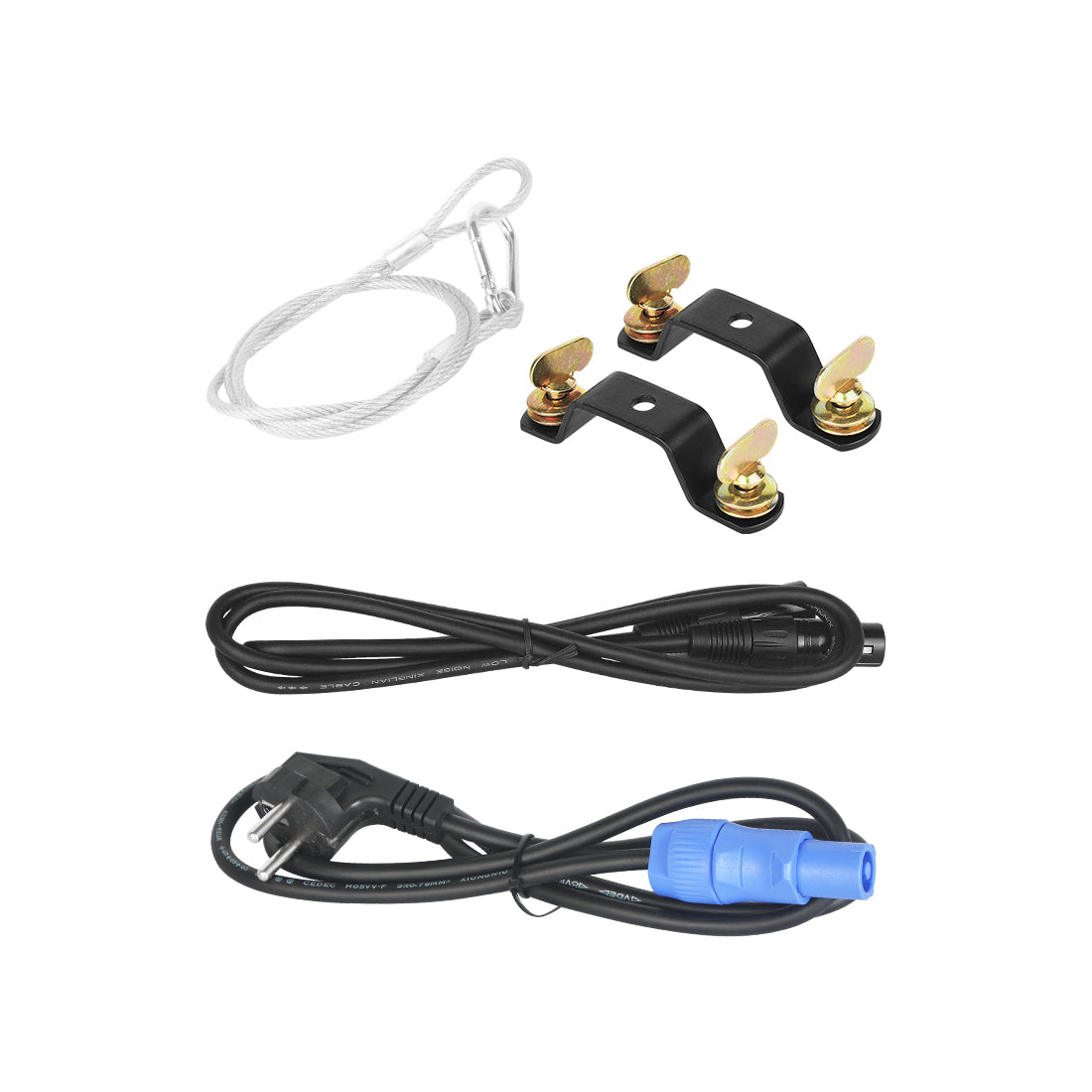

4. Packaging Standard: One power cord, one signal cable, one instruction manual, and one set of hanging accessories.
