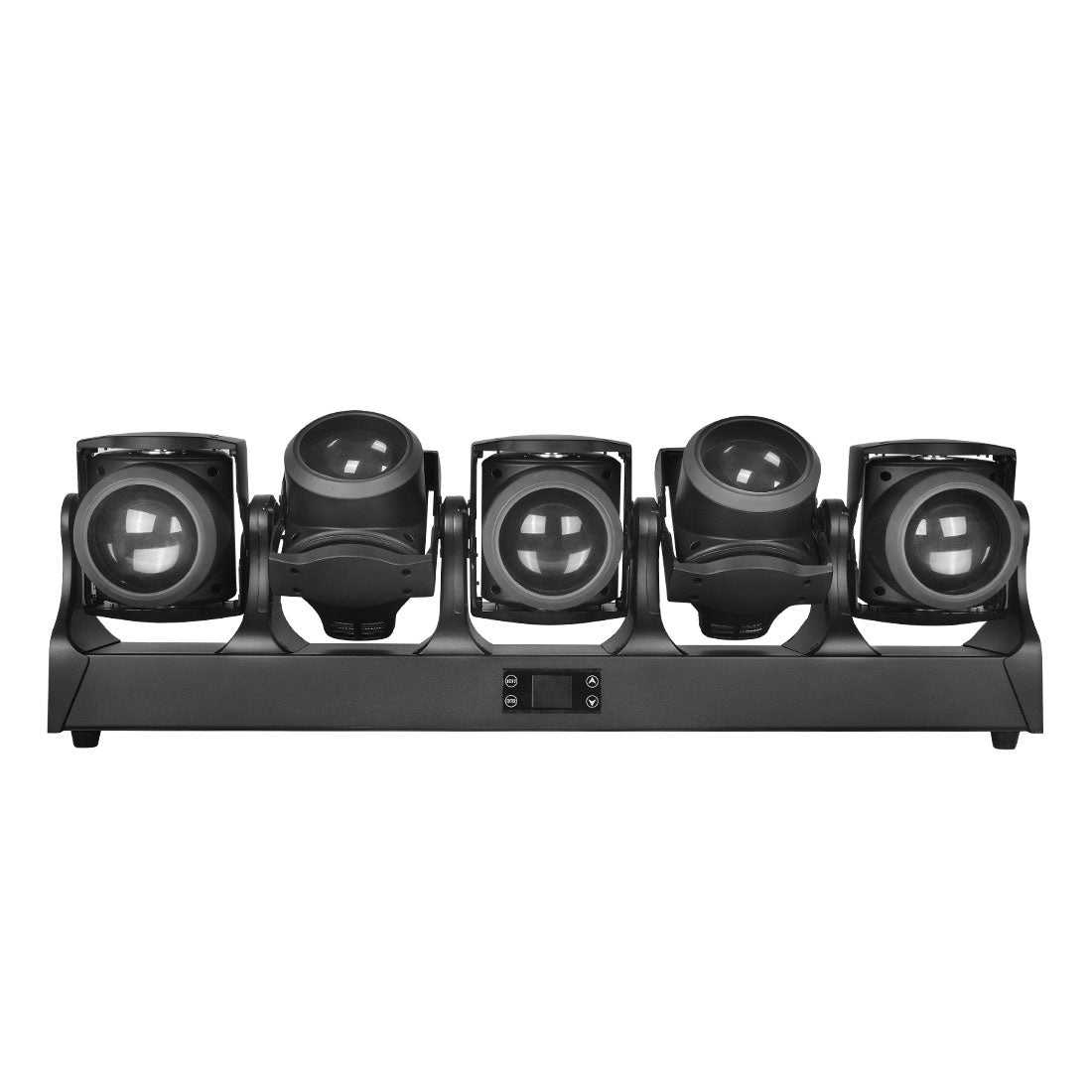

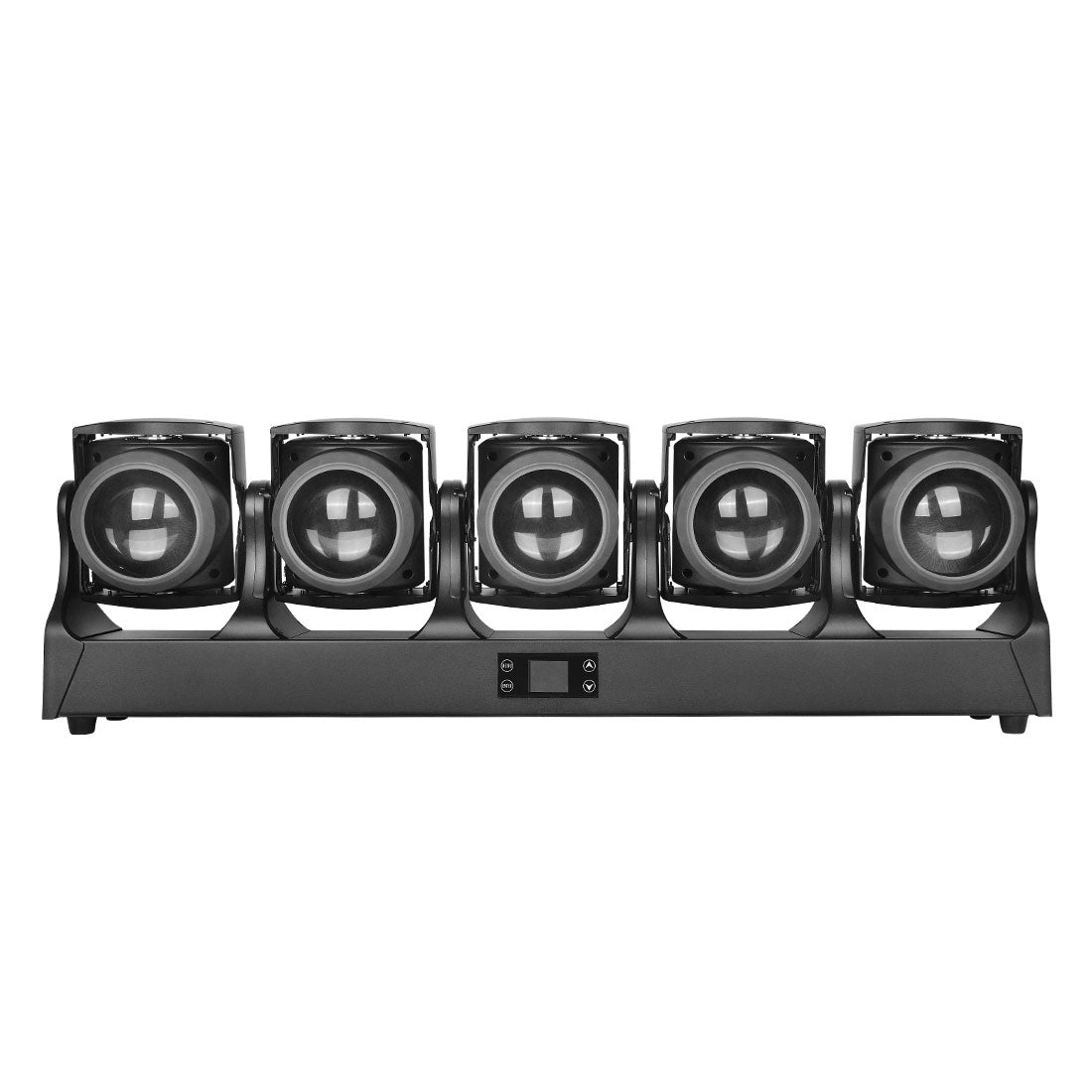

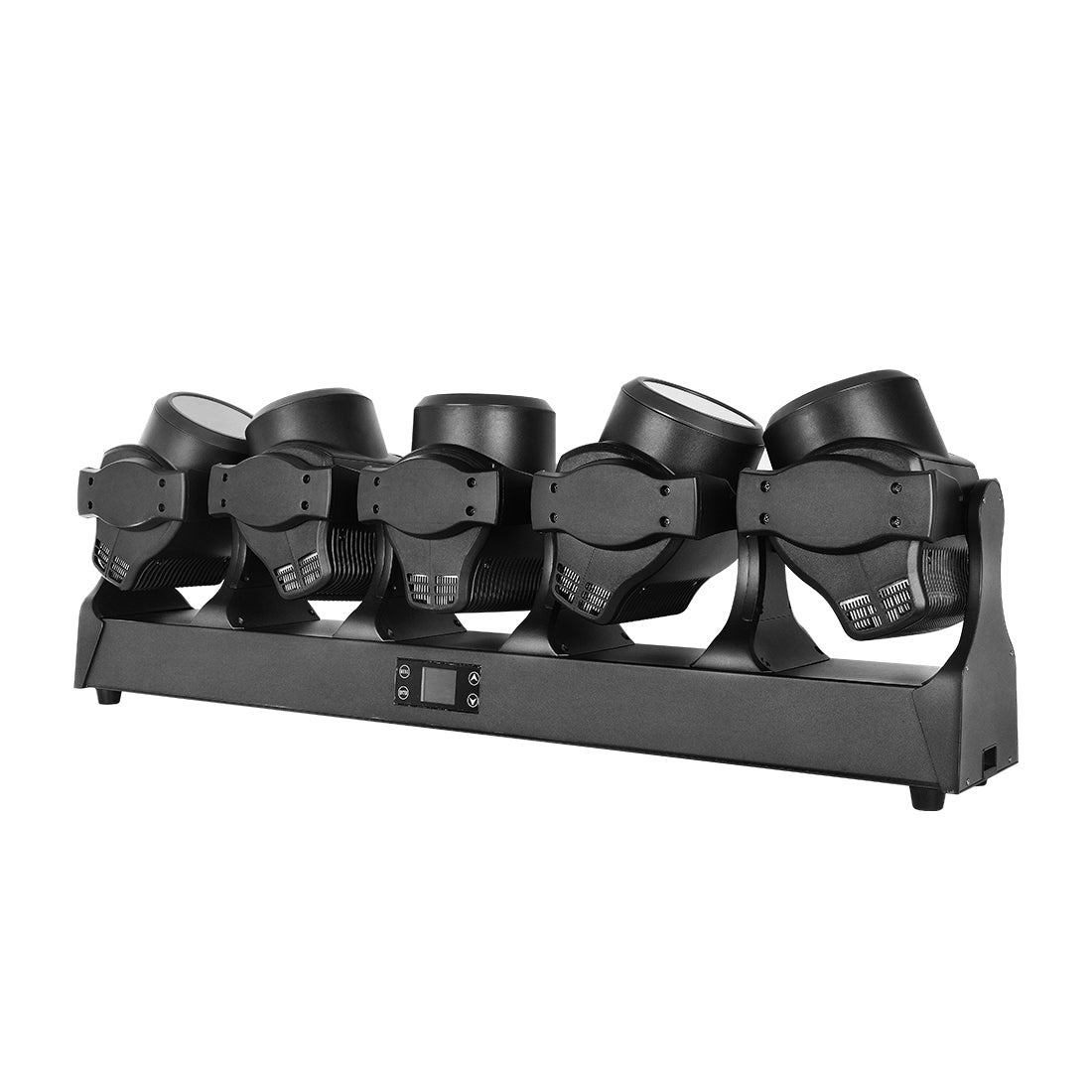

KW6 5×120W Beam focusing strip light

Hilights

High-Power LED Moving Bar Light

Equipped with 5×120W main LEDs and 120×0.5W RGB outer LEDs, this fixture delivers up to 13,000 lumens with a beam angle of 3°–30° and field angle of 4°–35°.

Advanced 16-bit pan (59°) and tilt (221°) movements offer smooth, precise positioning with auto-correction. Features include dynamic strobe, 0–100% linear dimming, rich color mixing, and macro effects.

Supports DMX512 & RDM with 41/71 channel modes and onboard LCD display. True1-type waterproof power I/O and IP33 protection ensure stable performance in diverse environments. Ideal for professional stage, event, and architectural applications.

Specification

Light Source
Main Light: 5 x 120W LEDs
Outer Circle: 120 x 0.5W RGB LEDs
Total Lumen Output of Fixture: 13,000 lumens
Life Expectancy: 20,000 hours
Optical System
Beam Angles: 3°-30°
Field Angles: 4°-35°

Control and Program
4 button touch control panel
Display: LCD display
Protocols: DMX512, RDM
DMX Protocol Modes: 2
Control Channels: 41/71CH
Firmware Upgrade: Upgrade via DMX link
Pan & Tilt
Pan Movement: 59°
Tilt Movement: 221°
Automatic Pan/Tilt position correction
Resolution: 16 bit
Other Effects
Outstanding strobe effects with variable speed
Variable light adjustment from 0-100% dimming
Outstanding color mixing effects
Outstanding color macro effects
Linear focusing structure
Electrical and Connectors
Input Voltage Range: 100-240V~ 50/60Hz
Power Consumption: 935W

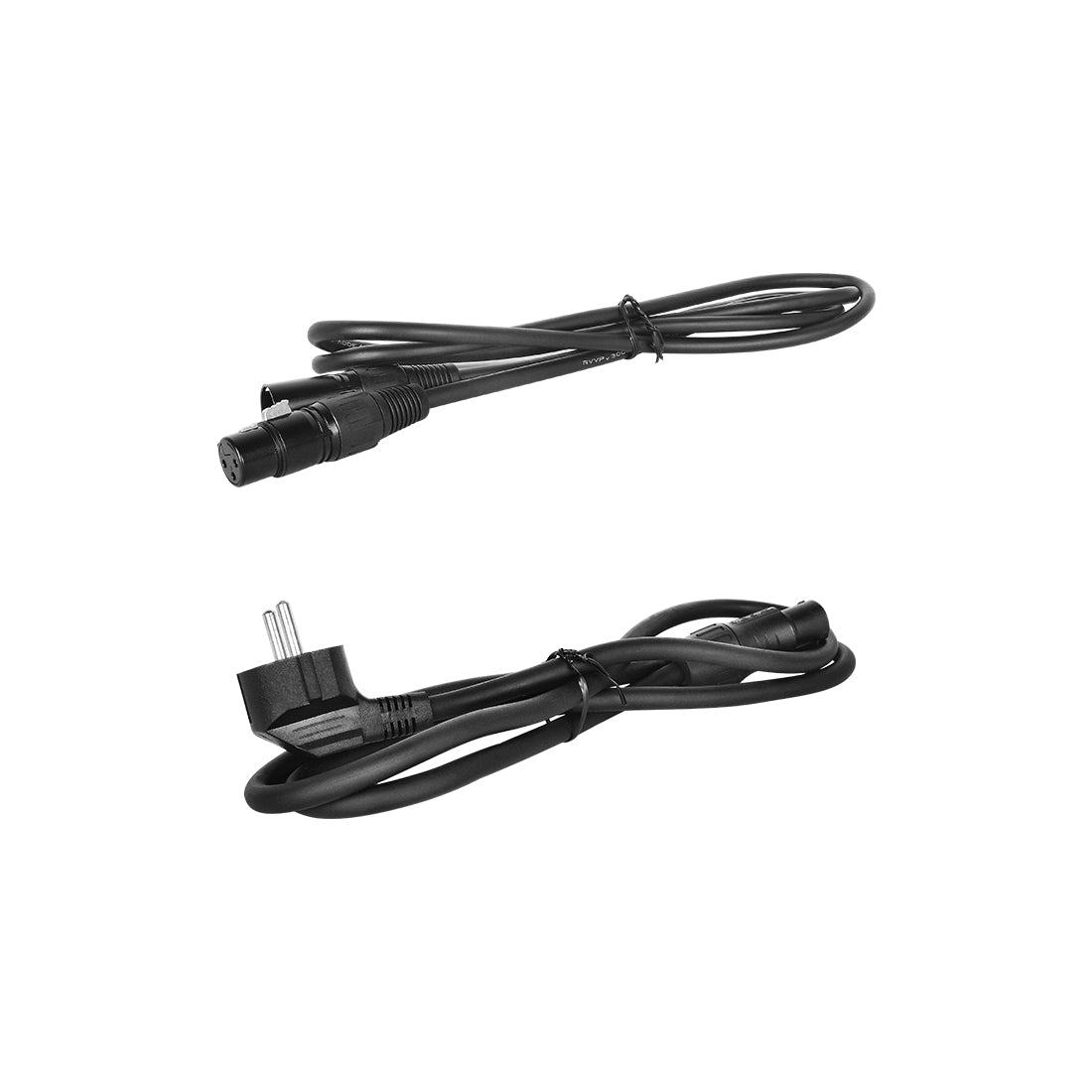

Power In/Out: Waterproof power connector in/out (True1 type)
Data In/Out: 3-pin XLR
Fixture Specification

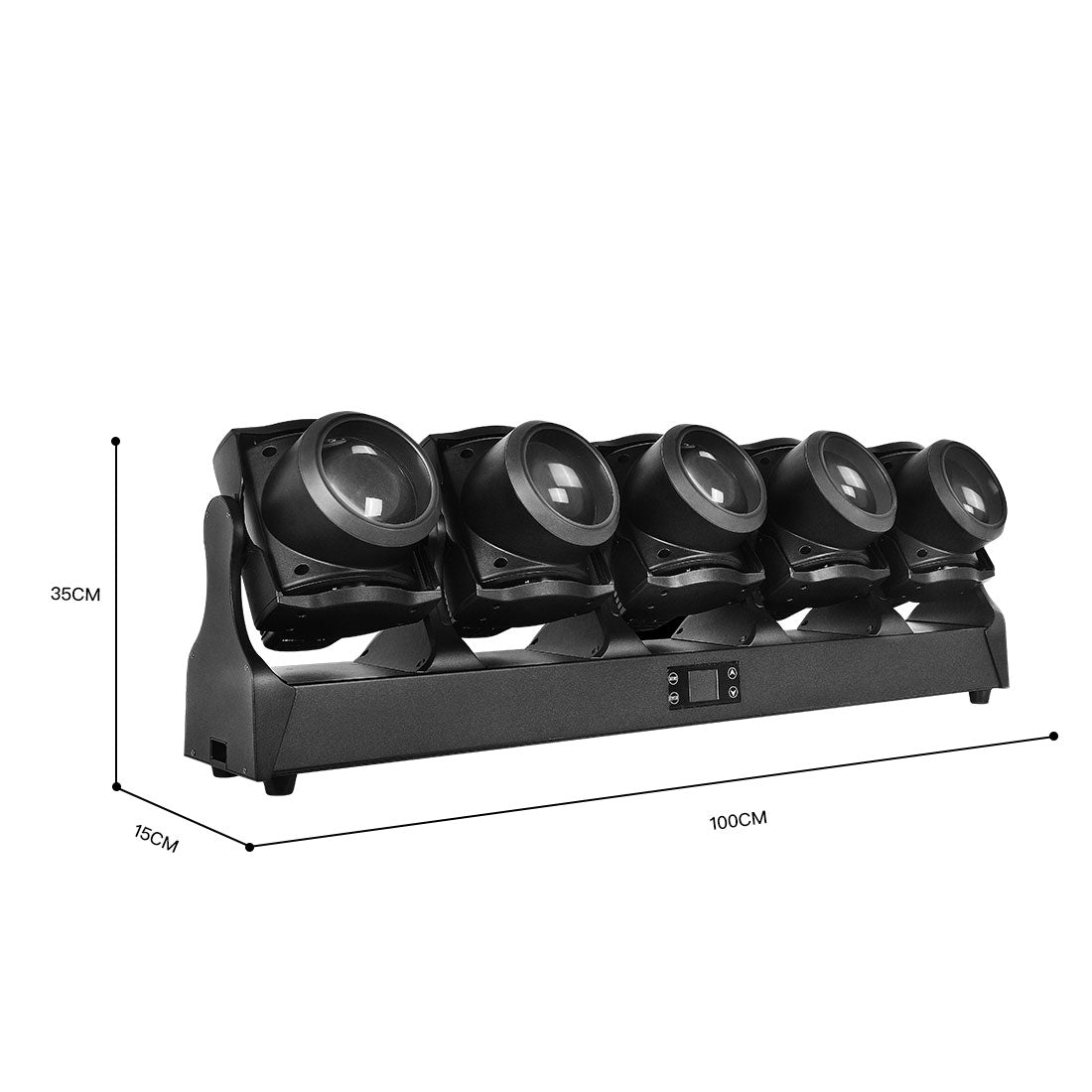

Fixture Size:1002*196*334mm
Net Weight: 26.6kg
Work environment
Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 75°C
Protection Rating: IP33
