KL1 Led kinetic ball lifting winch system ball

Hilights

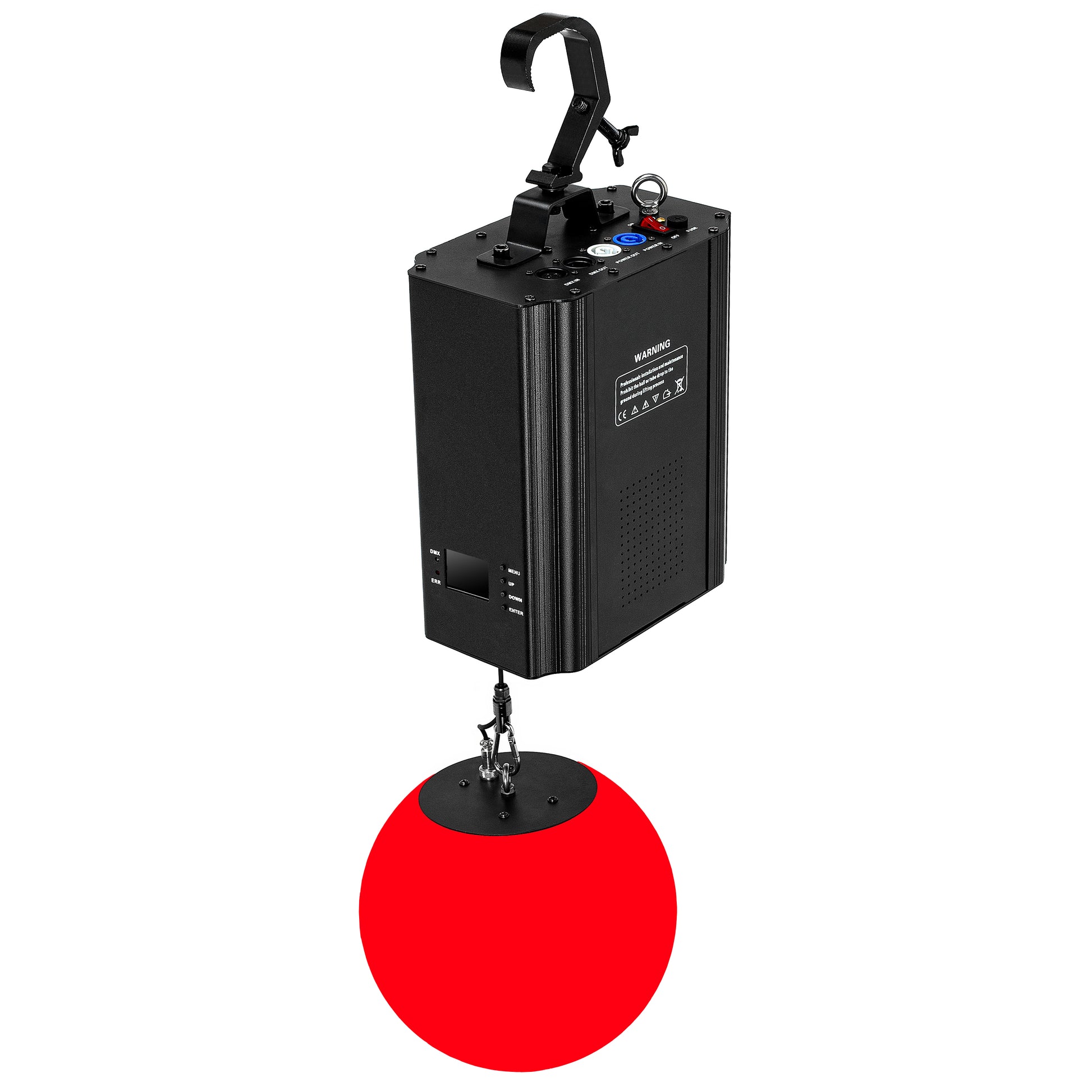

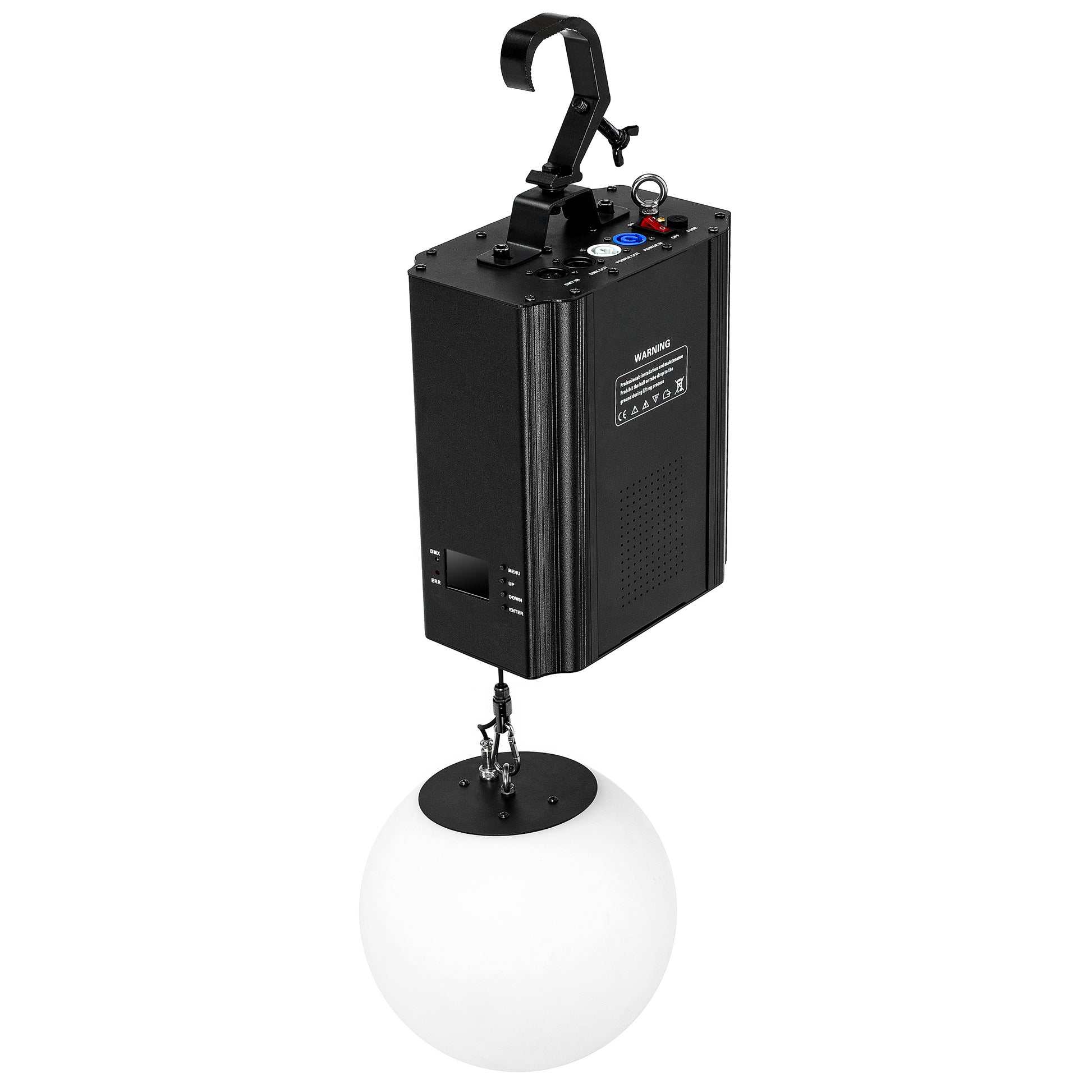

LED Ball with Winch – Dynamic Lifting & Vibrant RGB Effects

This LED ball system features a powerful 100W winch with RGB SMD LEDs, offering smooth vertical movement and brilliant lighting in one compact unit.

Operates on AC90-240V (50/60Hz) with 9 DMX channels, supporting DMX512, master-slave, and sound control modes.

The ball is available in 12cm to 30cm diameters and performs reliably in temperatures from -5°C to 45°C.

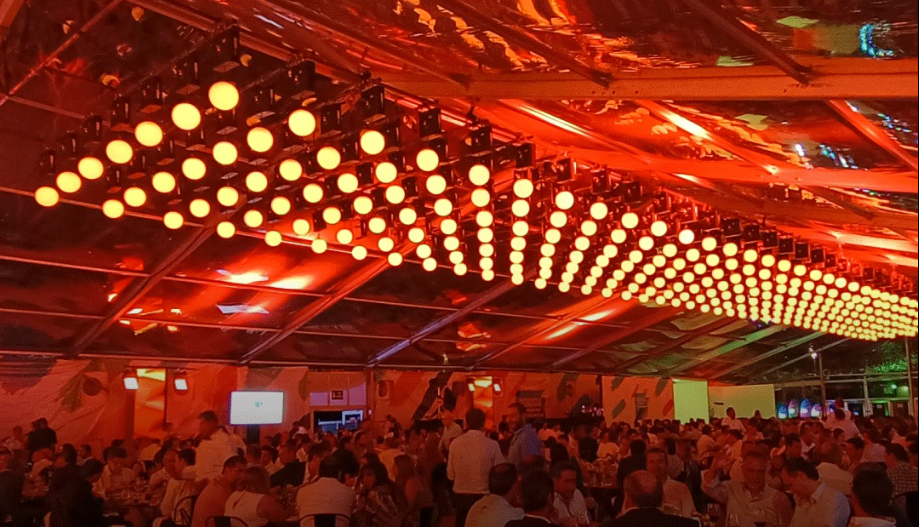

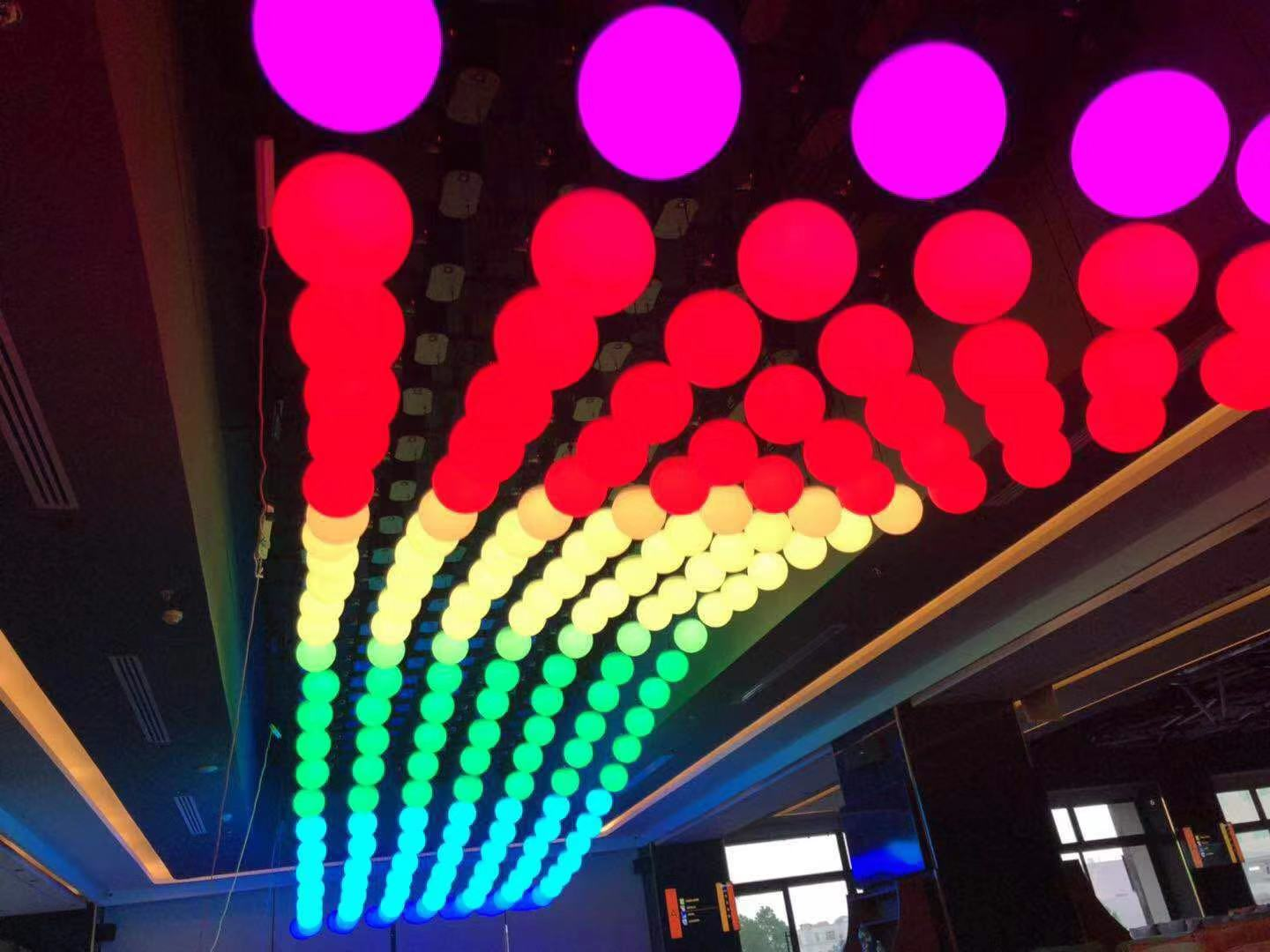

Ideal for stage shows, events, and immersive installations requiring synchronized motion and vibrant light.

Speification

One winch+ one ball
Operate Voltage:90-240v,50-60HZ;
Power :100W
Control Channel:9CH
Control Model:DMX512,Master-slave;Sound Control
Work permit temperature:-5-45 degree
Light source: RGB SMD LEDS
Classic:5.6kg;
G.W:7.0kg;
Led ball Diameter:12/15/20/25/30cm
Lifting height optional
